if you press key 2 or key 4 the hood returns to the set speed.
Grease trap Signal
After 40 hours of operation the led L5 turns on.
When such signal appears the installed grease trap needs to
be washed.
To reset the signal hold down key 1 for 3”.
Carbon filter Signal
After 160 hours of operation the led L5 flashes.
When such signal appears the installed carbon filter must be
substituted.
To reset the signal hold down key 1 for 3”.
In the case of both filters signalling at the same time, the led
L5 will indicate the alarms alternately remaining on for 3" and
subsequently flashing 3 times.
The reset takes place by carrying out the procedure described
above 2 times.
The first time resets the grease trap signal, the second resets
the carbon filter signal.
In the standard mode the carbon filter signal is not active.
In case one uses the hood in filter version is it necessary to
enable the carbon filter signal.
Carbon filter signal activation:
Position the hood in OFF and simultaneously hold down keys
1 and 4 for 3”.
The led L1 and L2 will flash for 5”.
Carbon filter signal deactivation:
Position the hood in OFF and simultaneously hold down keys
1 and 4 for 3”.
The led L1 will flash for 2”.
Temperature Alarm
The hood is equipped with a temperature sensor that activates
the motor to speed 3 in the case that the temperature in the
control panel zone becomes too elevated.
The alarm condition is indicated with the sequential flash of
the leds L1, L2, L3.
This condition remains until the temperature falls below the
alarm threshold.
You can get out of this mode by pressing key 1 or 2.
Every 30” the sensor checks the environmental temperature of
the control panel zone.

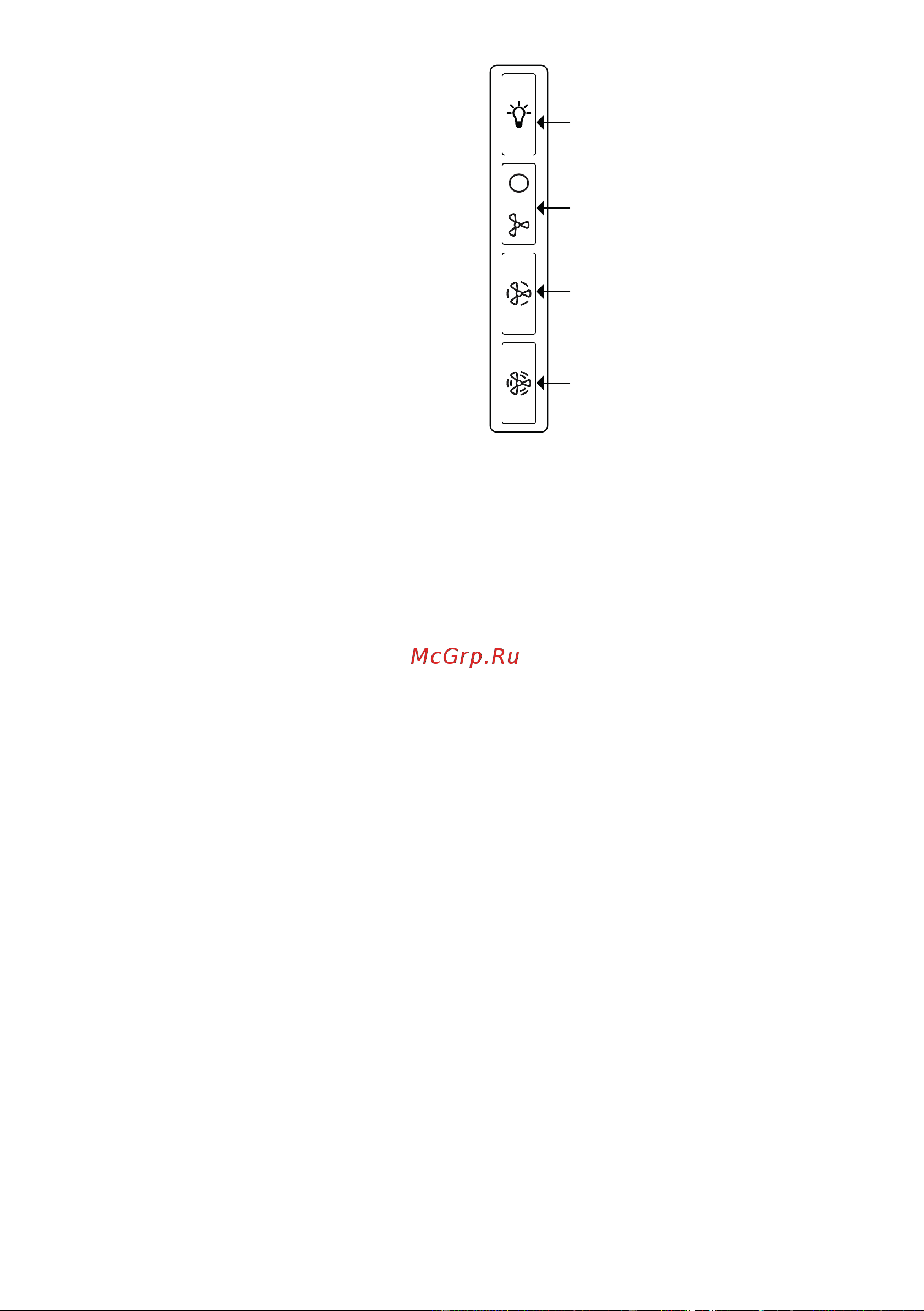

A. on/off light switch
B. on/off aspiration switch and minimum power selection
B+C. medium power selection aspiration switch
B+D. maximum power selection aspiration switch
Maintenance
Cleaning
Clean using ONLY a cloth dampened with neutral liquid
detergent. DO NOT CLEAN WITH TOOLS OR
INSTRUMENTS. Do not use abrasive products. DO NOT USE
ALCOHOL!
Panel Fig. 2-3-9-10-11
Maintenance of the panel
Disassembly:
a. pull the panel (FRONT SIDE) downwards energetically
b. unhook it from the back hinges.
Cleaning:
the suction panel must be cleaned as frequently as the grease
filter, use a dampened cloth with neutral liquid detergents.
Avoid using products containing abrasives. DO NOT USE
ALCOHOL!
Assembly:
The panel must be hooked in the back and fixed in the front
(with magnets).
Attention! always check that the panel is tightly fixed to its
place.
Grease filter Fig. 2-10
Traps cooking grease particles.
The grease filter must be cleaned once a month using non
aggressive detergents, either by hand or in the dishwasher,
which must be set to a low temperature and a short cycle.
When washed in a dishwasher, the grease filter may discolor
slightly, but this does not affect its filtering capacity.
To remove the grease filter, pull the spring release handle.
Charcoal filter (filter version only)
It absorbs unpleasant odors caused by cooking.
Circular charcoal filter
A
B
C
D
