P-2304R-P1 Series Quick Start Guide

2 Hardware Connections

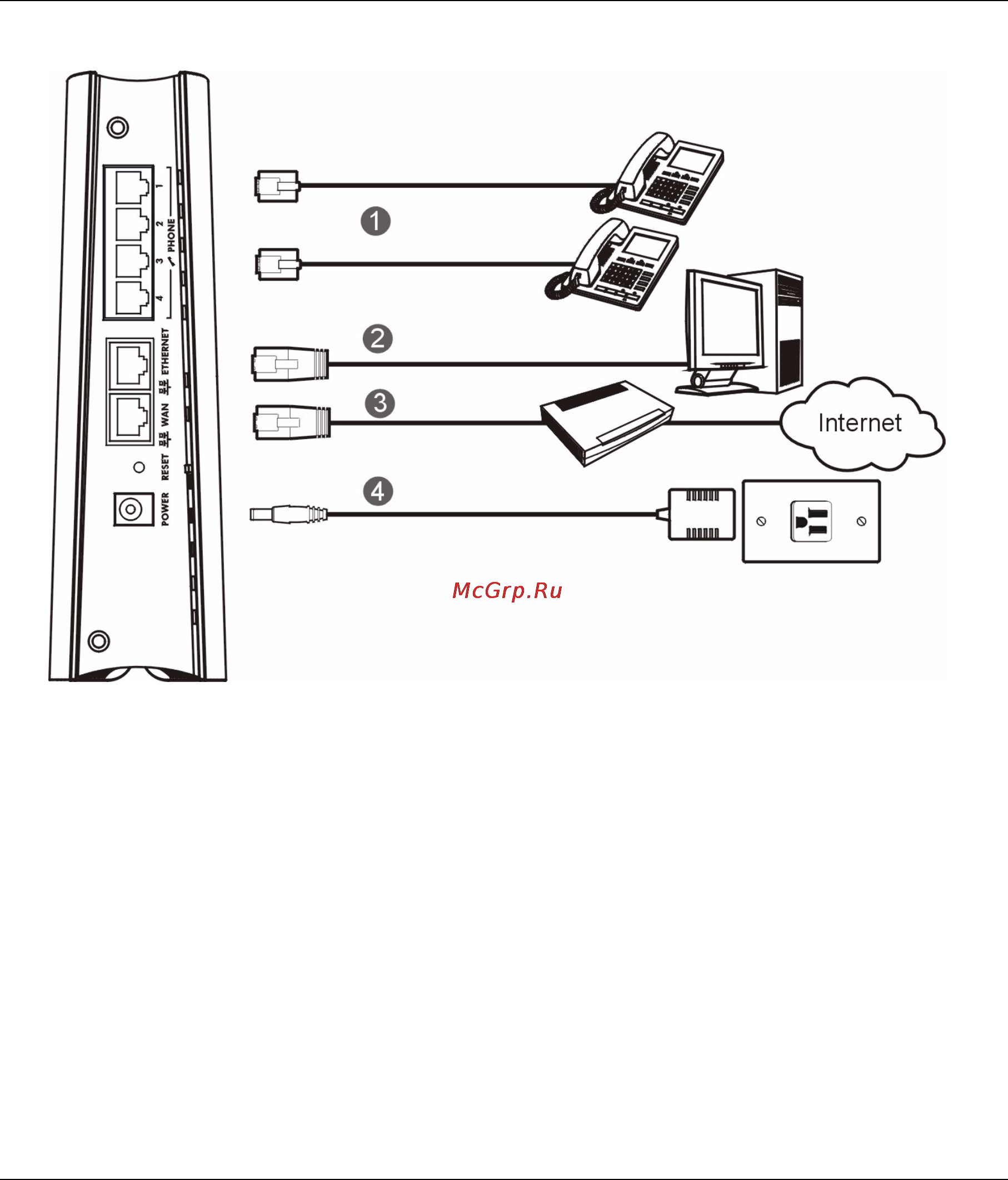

1 PHONE 1-4: Use a telephone cable (and any telephone adaptors provided with your P-2304R-P1) to

connect your telephones to these ports. If you only have one telephone, you should only use one port.

2ETHERNET: Use an Ethernet cable to connect your computer to this port.

3WAN: Use an Ethernet cable to connect your broadband modem or router to this port.

4POWER: Use the power adaptor provided with your P-2304R-P1 to connect an appropriate power source

to this port.

On the front panel, the POWER light flashes green while your P-2304R-P1 starts up and stays green once it is

ready. The WAN and ETHERNET lights turn on if the WAN and ETHERNET ports are properly connected.

These lights flash when the P-2304R-P1 is sending or receiving data. The INTERNET light stays green when

you are able to access the Internet.
