Zyxel P-2304R EE [9/13] Bandwidth management wizard optional

P-2304R-P1 Series Quick Start Guide

3.4 Bandwidth Management Wizard (Optional)

If you want to use the Bandwidth Management Wizard, please see the User’s Guide for instructions.

3.5 Bridge Mode

The P-2304R-P1 supports two modes, Router and Bridge. Usually, you should use Router mode because it

supports all the features available in the P-2304R-P1. However, you might use Bridge mode in the following

situation:

• There is another router or gateway in the network; and

• You only want to use the P-2304R-P1 for VoIP and Internet access. You do not want to use other features, such

as the firewall, even with their default settings.

See the User’s Guide for more details about Bridge mode.

If you want to use Bridge mode, follow these steps.

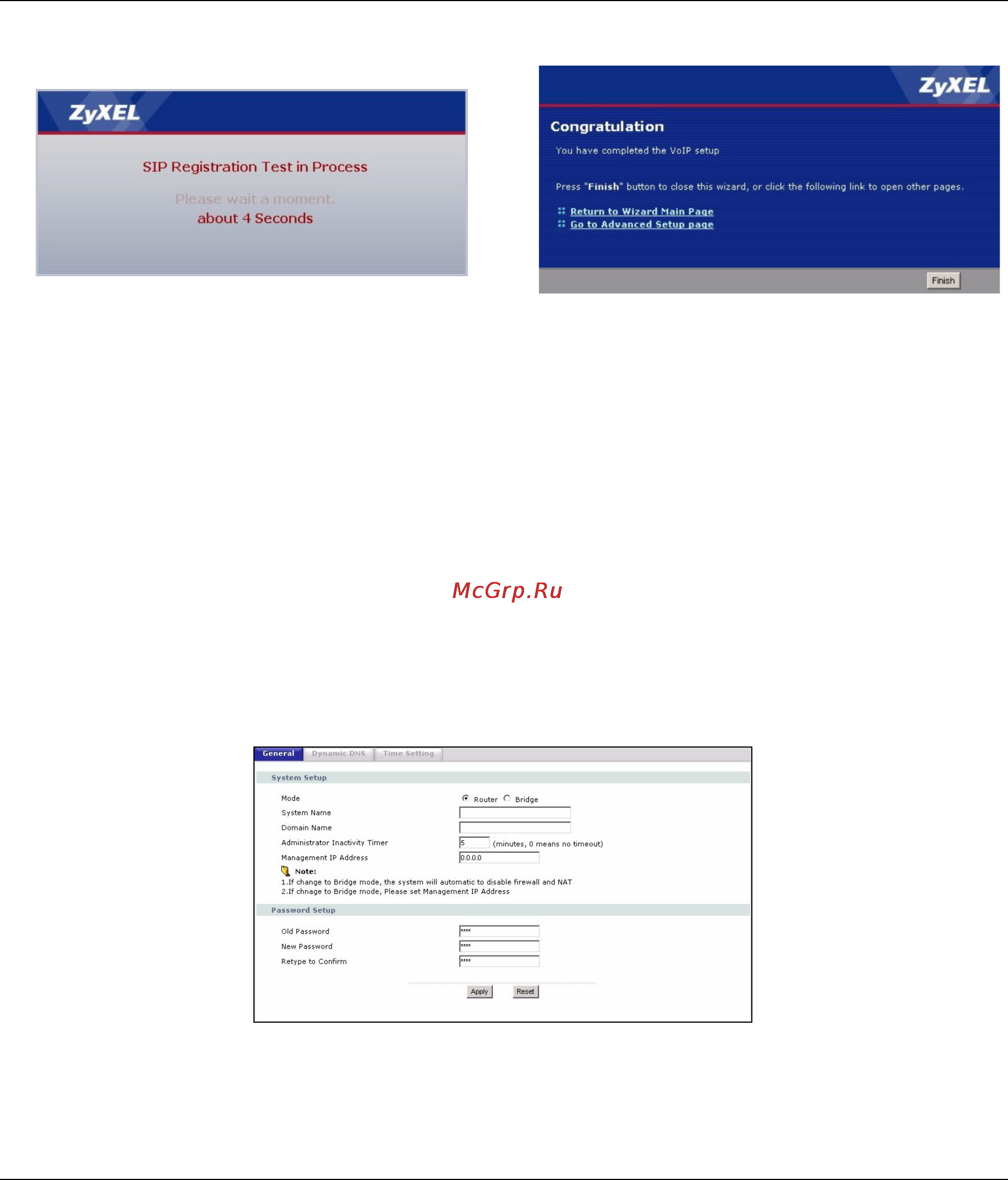

1 In the main screen, click Maintenance > System > General.

2 In the Mode field, select Bridge.

3 In the Management IP Address field, enter the IP address you want to use to access the P-2304R-P1 in

Bridge mode. For example, enter 192.168.5.1.

3 Wait while the P-2304R-P1 tries to register the

VoIP account(s).

4 Click Finish. The PHONE light should be green.
