Chapter 2 Hardware Description and Connection

ES1100 Series User’s Guide

17

2.3.2 Rack Mounting

The Switch can be mounted on an EIA standard size, 19-inch rack or in a wiring

closet with other equipment. Follow the steps below to mount your Switch on a

st a n d a r d E I A rack usin g a r a c k - m o u n t i n g k i t.

Rack-mounted Installation Requirements

• Two mounting brackets.

• Make sure the position of the Switch does not make the rack unstable or top-

heavy. Take all necessary precautions to anchor the rack securely before

installing the unit.

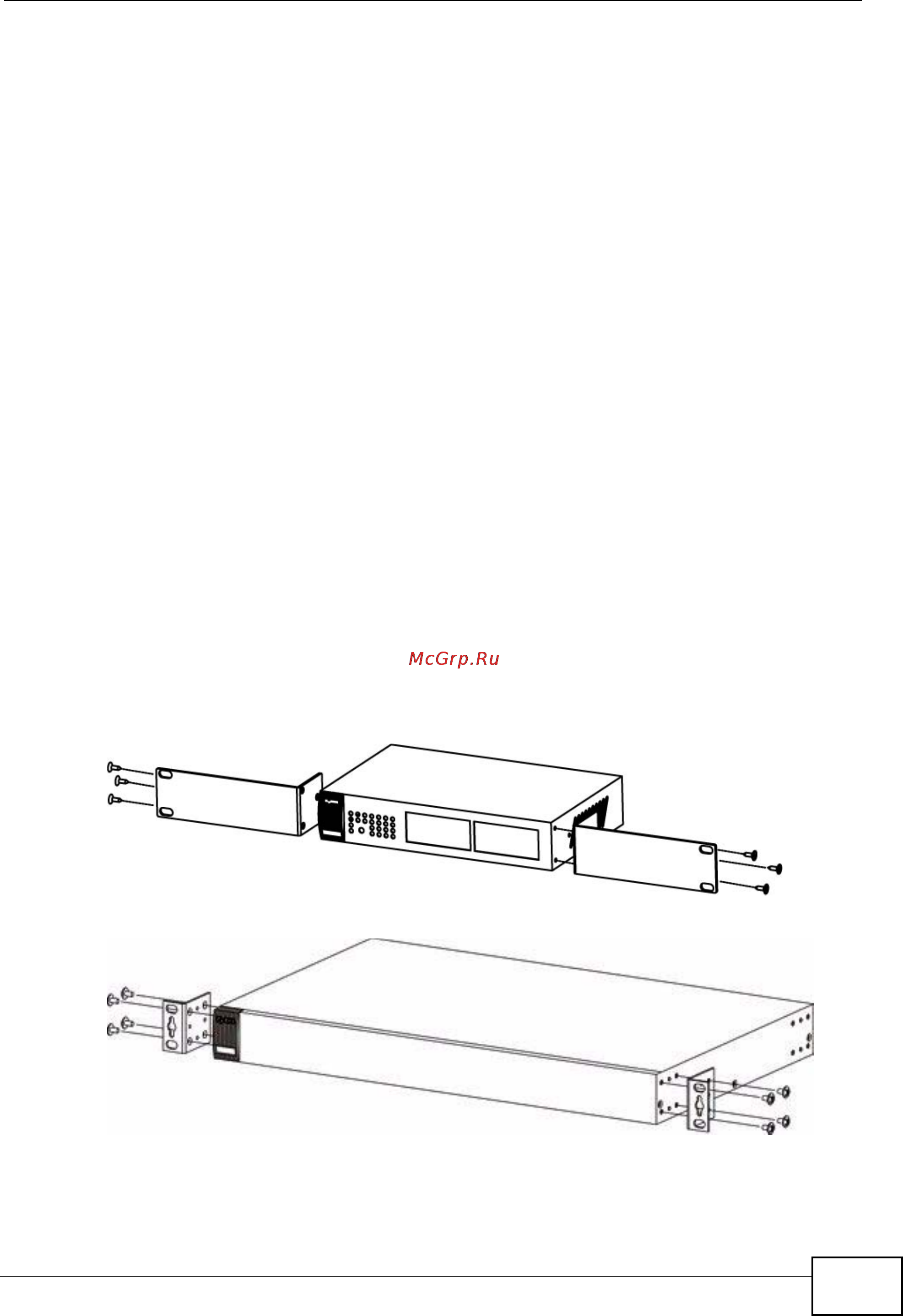

Attaching the Mounting Brackets to the Switch

1 Position a mounting bracket on one side of the Switch, lining up the four screw

holes on the bracket with the screw holes on the side of the Switch.

2 Using a #2 Philips screwdriver, install the M3 flat head screws through the

mounting bracket holes into the Switch.
