Zyxel ES1100-16 [20/30] Figure 9 mounting the switch on a rack es1100 24

Chapter 2 Hardware Description and Connection

ES1100 Series User’s Guide

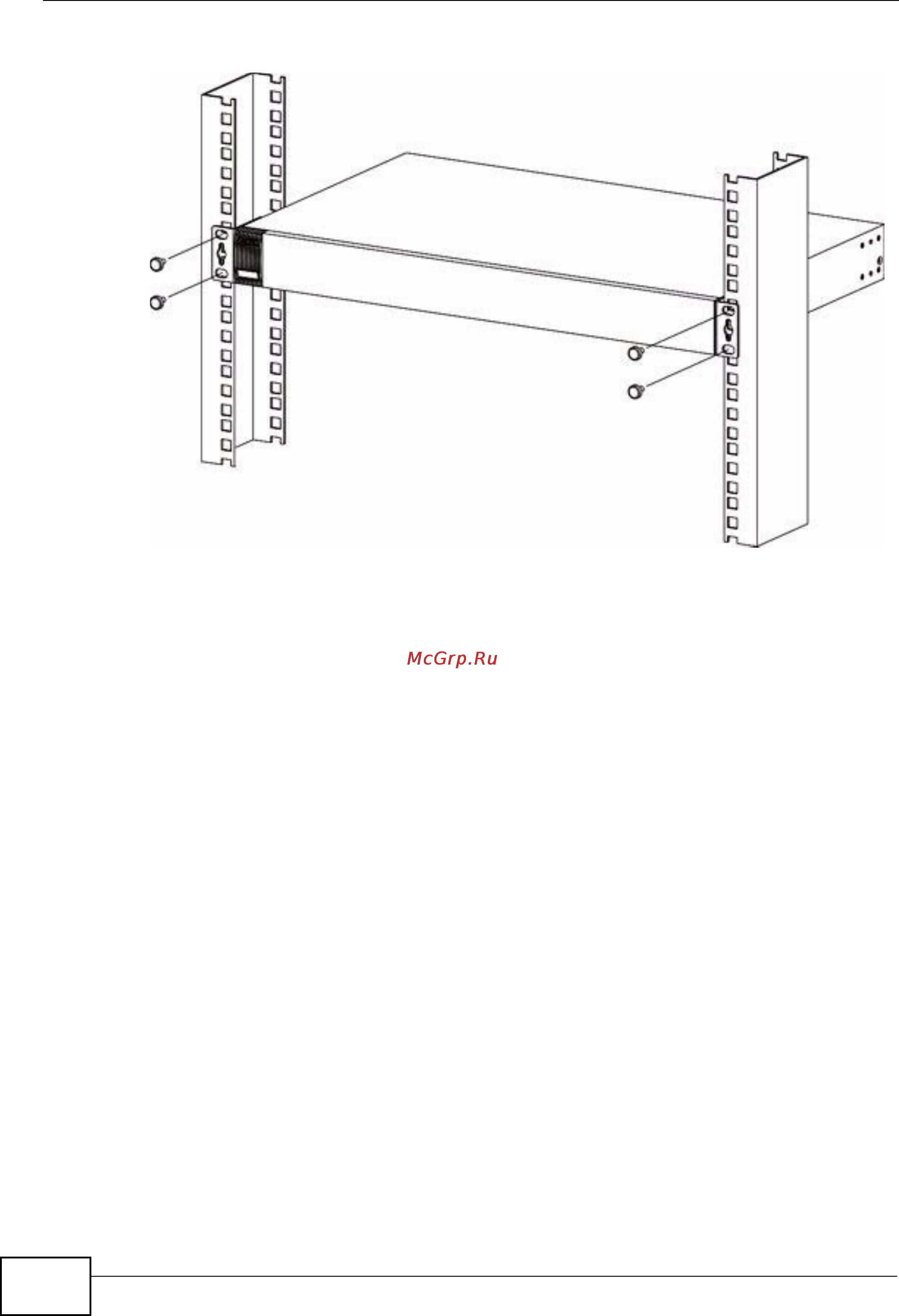

Figure 9 Mounting the Switch on a Rack (ES1100-24)

2 Using a #2 Philips screwdriver, install the M5 flat head screws through the

mounting bracket holes into the rack.

3 Repeat steps 1 and 2 to attach the second mounting bracket on the other side of

the rack.
