Hertz MLK 2 [11/36] Installation patterns

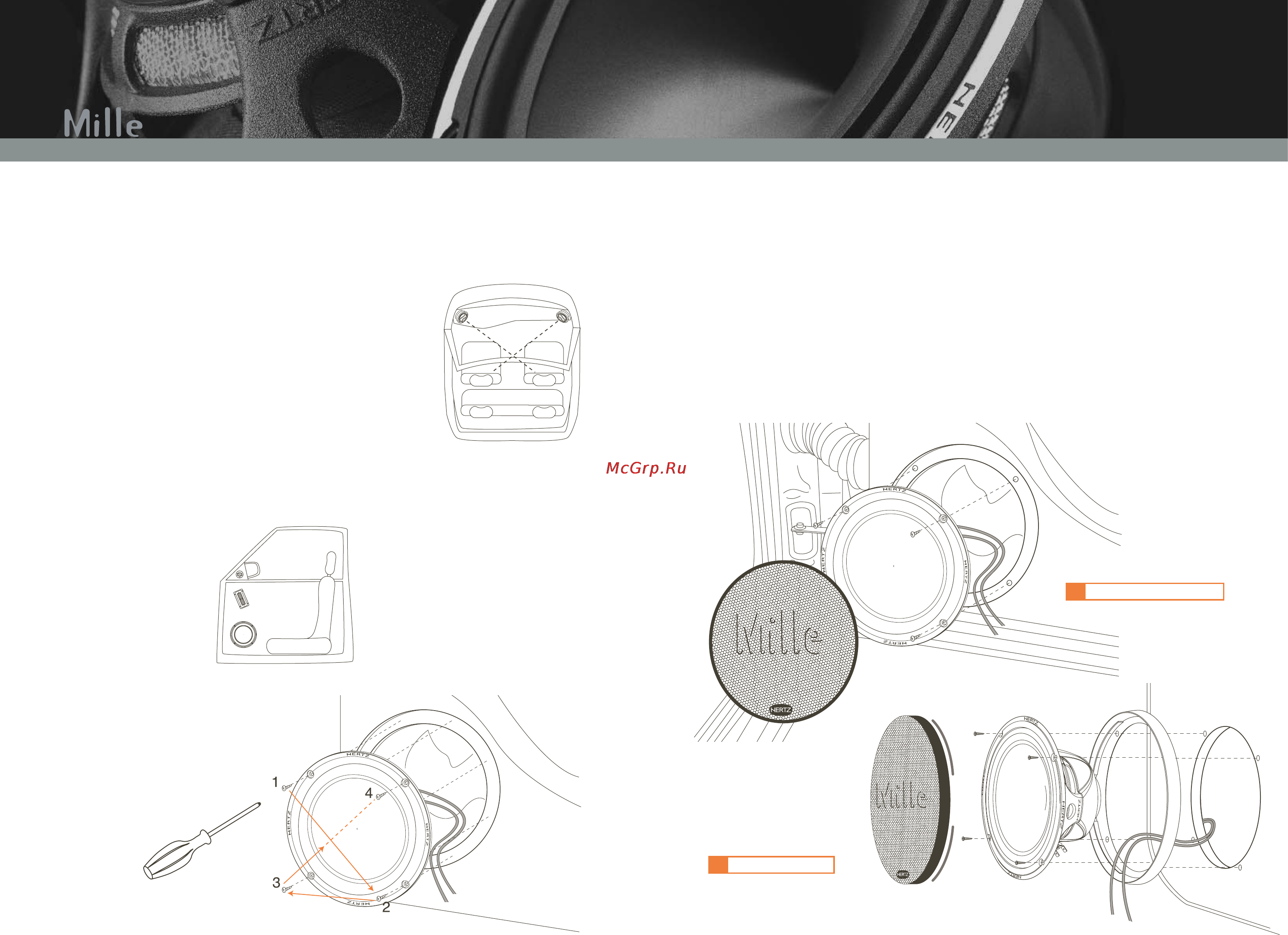

ML 1600 mounting

- Make sure the screws holes are well drilled.

- When you use the grille, its support must be installed betwen baffle and speaker basket.

- Mind baffle and speaker mechanical coupling. Whenever it is possible, put the gasket between

them and eliminate possible air leakage in the basket sides, since it might cause acoustic short

circuit, negatively affecting the system performance.

- We recommend to insulate the doors where the speakers are installed whenever complex

systems are built or very high powers are used.

- Damp metallic and plastic surfaces vibrations with FONOMAT panels or with the special

FONOGEL 100 by AZ audiocomp. Insulate wires and mechanic parts through FONOSEAL 100

mastic.

Factory cut-out mounting

Door mounting

Installation patterns

When installing MILLE Comp speakers, we suggest that you care for some details:

- In order to ensure the best sound, the speakers of every channel

(Left and Right) should be placed one as far as possible from the

other, be they mounted on front doors, on dashboard or on rear deck.

- Use the tweeter with a hi-pass crossover, whose cut-off frequency

must not be lower than 1.8 kHz, with 12 dB/Oct. slope.

- Install the tweeters in order for their emission axis to cross in the car

compartment center.

- Tweeters should be mounted as high as the

listeners' face and be as far as the woofer is from it.

It is usually good to install them in the rearview mirror

triangle or on the windscreen pillar.

- Fix speakers with all

the screws given with them, gradually

and simultaneously fastening them.

Installation Patterns
