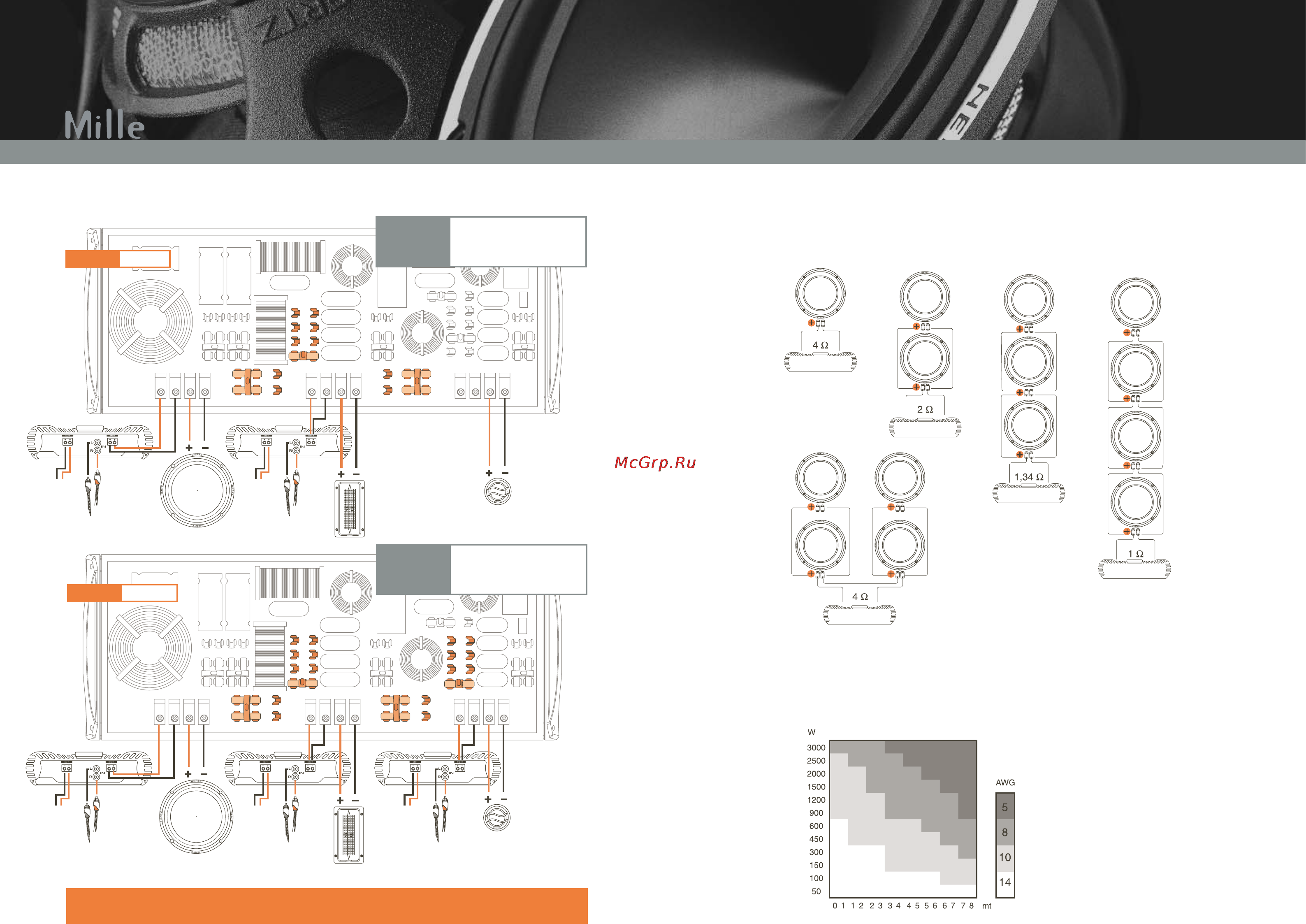

Hertz MLK 2 [15/36] Cable diameter
![Hertz ML 1600.2 [15/36] Cable diameter](/views2/1011080/page15/bgf.png)
Connections in series - in parallel
Below, please find some examples of connections: single, in parallel, mixed.
Choosing your cables
Power cables are extremely important since they directly affect the system damping factor
and sound quality; in the table below, we show cable diameter, which we recommend
according to length and applied power.
Applied power
Cable diameter
Connection length
The table refers to continuous
power with 4 Ohm load. If
load decreases, the cable size
needs to be proportionally
increased.
Caution
Disconnect the system before changing the jumpers position in the printed circuit board.
OTHER
CHANNEL
OTHER
CHANNEL
MONOBI MONOTHREE
MID LEVEL
-4,5 dB
-3 dB
0 dB
-1,5 dB
OTHER
CHANNEL
OTHER
CHANNEL
OTHER
CHANNEL
MONOBI MONOTHREE
MID LEVEL
-4,5 dB
-3 dB
0 dB
-1,5 dB
TW LEVEL
-4,5 dB
-3 dB
0 dB
-1,5 dB
Bi-Wiring
MLCX 3
Tri-Wiring
MLCX 3
Set MD Level controls on 0 dB
and adjust mid-high speakers
emission level through the
proper amplifier
Caution
Set MD Level and TW Level
controls on 0 dB and adjust
emission level through the
proper amplifiers
Caution
Installation Patterns
