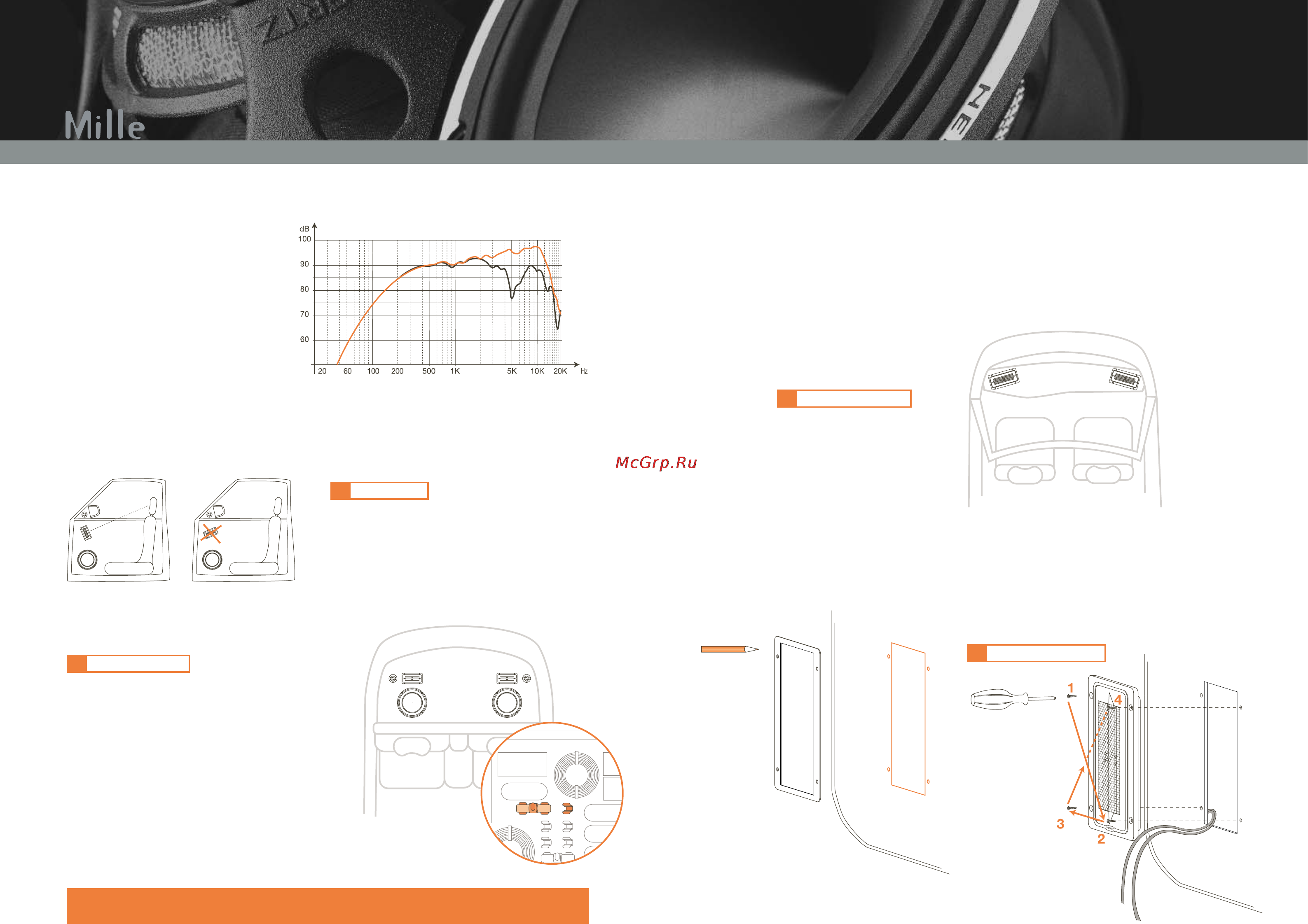

Hertz MLK 2 [12/36] Installation patterns

When installing ML 500R in the dashboard, place the components as indicated in the drawing. In

this configuration, the two midranges use the dashboard reflections in order to create a balance

between direct sound and reflected sound. Sound is natural, thrilling; you have very good tonal

accuracy and separation between the channels.

Use the template given with the speaker to draw the cut profile on the mounting surface.

Fasten the screws given with the speaker grdually and simultaneously.

Dashboard mounting

How to use the template

ML 500R mounting

ML 500R dispersion has a wider off-axis

response diagram along the horizontal

axis.

In order to enjoy the extraordinary acoustic features of this component at best, we suggest you

follow some rules when installing it.

If your doors allow it, install ML 500R as

indicated in the drawing, aligned with woofer

and tweeter and with its horizontal emission

axis oriented towards the listeners' ears.

If you install the components in the rear deck,

place them as indicated in the drawing and set the

two HFC

controls on ON. In this configuration,

the system uses the rear deck reflections to create

a balance between direct sound and reflected

sound. Sound is natural, thrilling; you have very

good tonal accuracy and separation between the

channels.

30° on Horizontal Axis

30° on Vertical Axis

ON OFF

HFC

Door mounting

Parcel shelf out-outs

Caution

Disconnect the system before changing the jumpers position in the printed circuit board.

Installation Patterns
