Hertz DS 250 [4/10] Find your box

Hertz DS 250 [4/10] Find your box
Find your box
Sealed Box
Tutte le quote indicate sono espresse in millimetri (mm).
Materiali fonoassorbenti e tubi reflex sono scelti dal catalogo AZ audiocomp.
Attenzione
All of the dimensions shown on illustration are measured in millimeters (mm).
Damping materials and reflex tubes are chosen from AZ audiocomp catalog
Caution

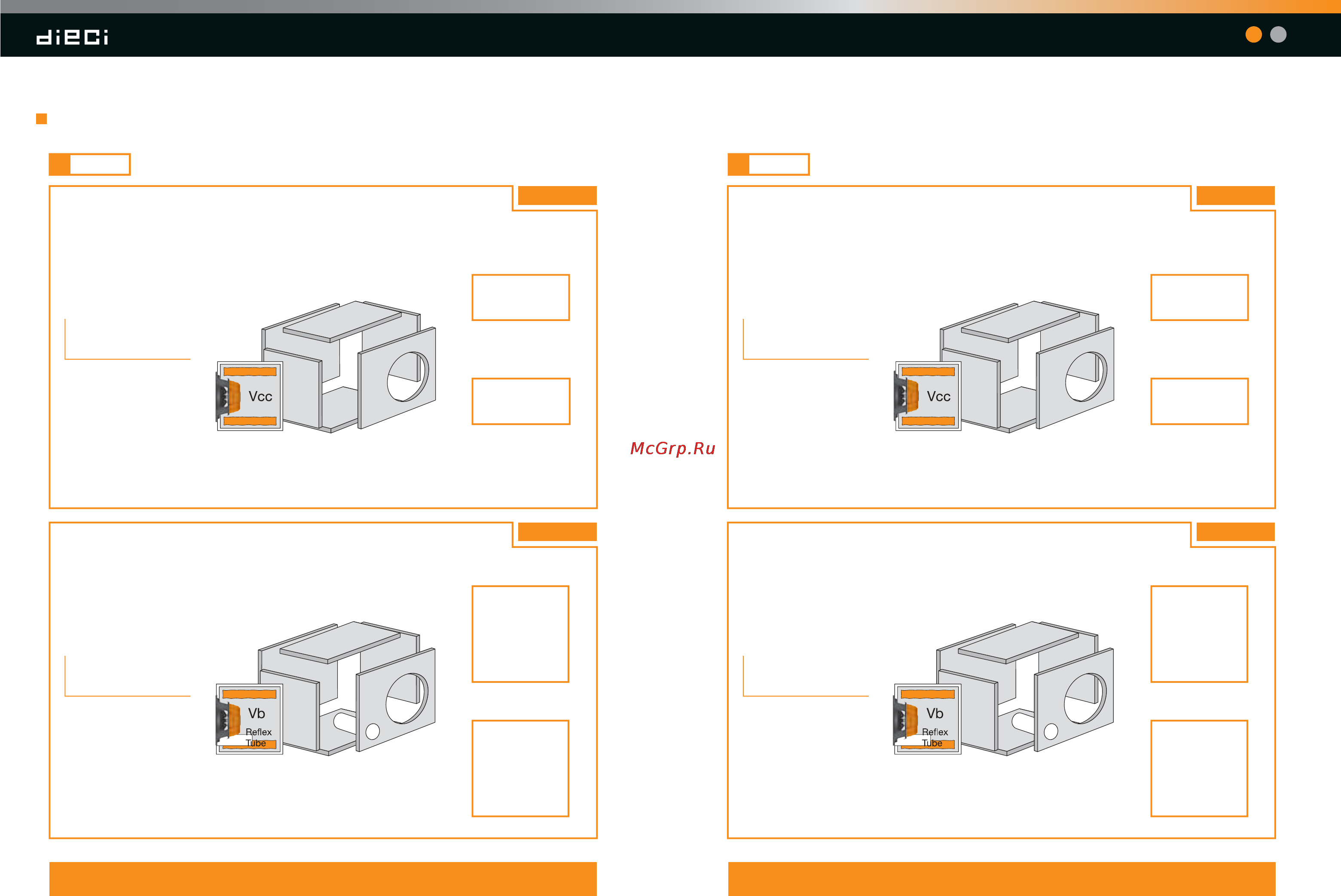

Reflex Box
DS 250 DS 300
Sealed Box
Vcc = 22,7 Lit
Fc = 65 Hz
Sealed Box
Vcc = 15 Lit
Fc = 75 Hz
Reflex Box
Vb = 26 Lit
Fb = 40 Hz
Reflex Tube
Ø = 62 mm
L = 105 mm
Reflex Box
Vb = 17 Lit
Fb = 43 Hz
Reflex Tube
Ø = 62 mm
L = 155 mm
Fonoassorbente:
FONOFORM
su tutte le pareti esclusa
quella dell’altoparlante
Damping material:
FONOFORM
on all the inside walls
except for the speaker’s
Fonoassorbente:
FONOFORM
su tutte le pareti esclusa
quella dell’altoparlante
Damping material:
FONOFORM
on all the inside walls
except for the speaker’s
Reflex tube: AR 65V
Sealed Box
Reflex Box
Sealed Box
Vcc = 32,7 Lit
Fc = 65 Hz
Sealed Box
Vcc = 21 Lit
Fc = 75 Hz
Reflex Box
Vb = 36 Lit
Fb = 40 Hz
Reflex Tube
Ø = 82 mm
L = 120 mm
Reflex Box
Vb = 24 Lit
Fb = 40 Hz
Reflex Tube
Ø = 82 mm
L = 175 mm
Fonoassorbente:
FONOFORM
su tutte le pareti esclusa
quella dell’altoparlante
Damping material:
FONOFORM
on all the inside walls
except for the speaker’s
Fonoassorbente:
FONOFORM
su tutte le pareti esclusa
quella dell’altoparlante
Damping material:
FONOFORM
on all the inside walls
except for the speaker’s
Reflex tube: AR 80V
DIMENSIONS
PERFORMANCE
DIMENSIONS
PERFORMANCE
DIMENSIONS
PERFORMANCE
DIMENSIONS
PERFORMANCE
Italiano | English
06
07
