11
TRIPLE•C - SETUPS

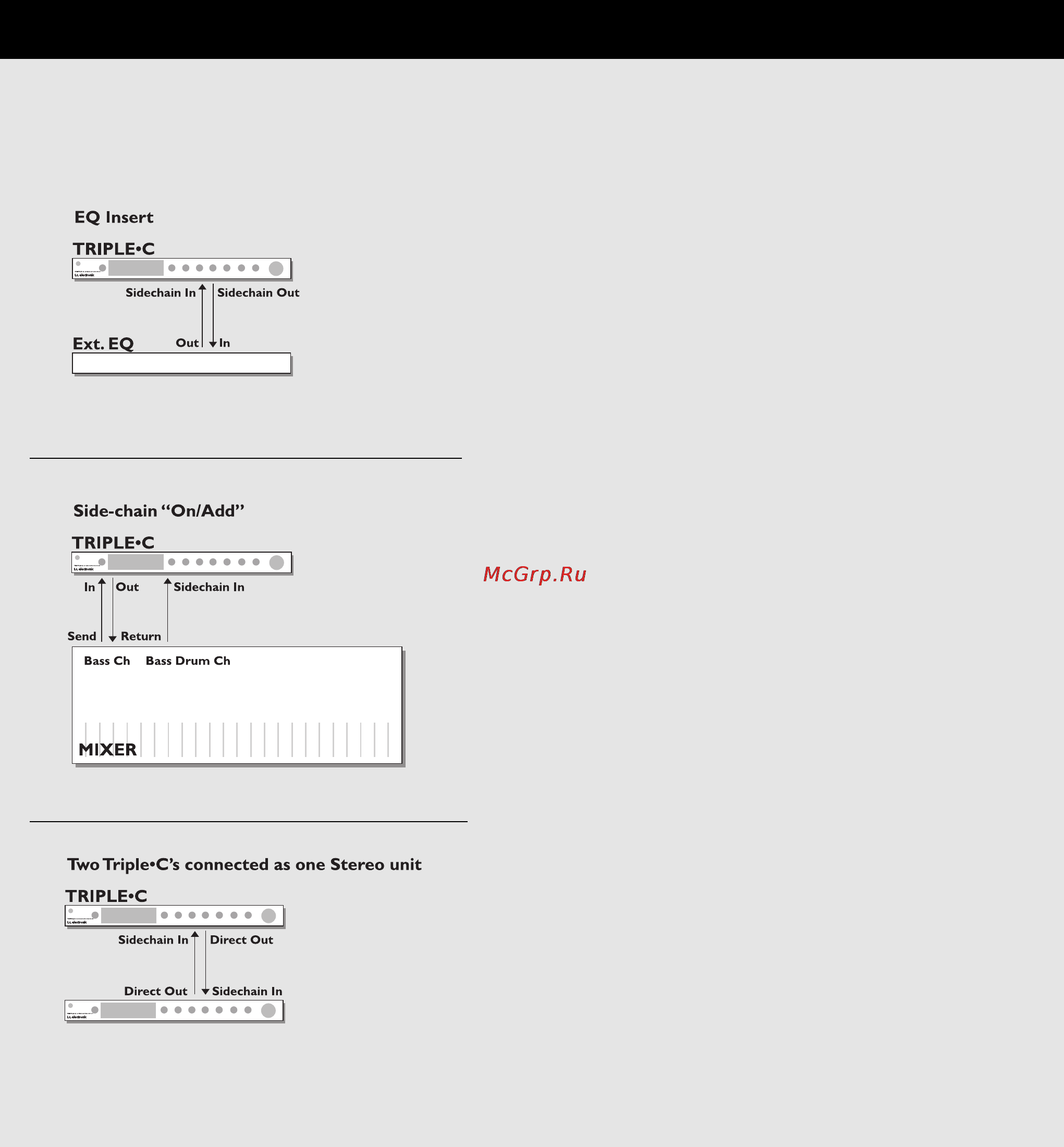

Setting up the TRIPLE•C
EQ Insert in the TRIPLE•C Sidechain
• Connect the TRIPLE•C Direct Out to the Input of the
EQ and the EQ Output to the TRIPLE•C Input.
• Set Sidechain to “On”.
• The source signal passing the TRIPLE•C will not be
directly influenced by the connected EQ unit, however
the EQ will allow you to pinpoint the key frequencies
that you want the Compressor to respond to.
Side Chain “On”
• Use the send/return connections on a single channel
on your mixer.
• Connect the Output of the channel you wish to
contribute to(Add) or control(On) the compression.
• Press MENU, select Ext Side using the PARAMETER
wheel and select “Add” or “On” using the VALUE SET
wheel.
In the illustrated example the Bass drum channel will
either contribute to, or control the compression applied
on the Bass channel.
Stereo Setup Using two TRIPLE•C Single Channels
• Connect two TRIPLE•C Single Channel units as illustrated.
• On both units:
Press MENU, select “I/O Menu” using the VALUE SET
wheel. Press ENTER, select “Link” using the
PARAMETER wheel and set the Link parameter to “On.”
• Connect MIDI Out from the unit you wish to be “master”
to MIDI In on unit you want to operate as “slave”.
• The units now operate as one stereo unit.
All parameter adjustments performed on the “master”
are now instantaneously copied to the “slave” unit.
