The TRIPLE•C can be set up to use an external source as
Sidechain Input to either control or contribute to the
compression of the source material. The Sidechain modes
allows the TRIPLE•C to react on either:
• The Sidechain Input only. (ON - mode)
• A mix between the original Input and the Input present
on the Sidechain. (ADD - mode)
T
o select the Sidechain mode:
• Press MENU.
• Select the “Edit menu” using the VALUE SET wheel and
press ENTER.
• Use the PARAMETER wheel to select “Ext Side” and the
VALUE SET wheel to select Sidechain mode.
Ext. Sidechain set to “ON”
Over-writes the original source and takes full control of the
responds of the Compressor. This can be used in various
applications e.g. for inputting a spectrally shaped version of
the original source, and thereby force the Compressor to
respond to a certain frequency area.
Ext. Sidechain set to “ADD”
Mixes the signal present on the external Sidechain In with
the original source material present on the Main Input.
22
SIDECHAIN OPERATION
Stereo Link
Stereo Setup
It is possible to use two TRIPLE•C Single Channel units as
one stereo compressor where all parameters are linked.
T
o acheive this:

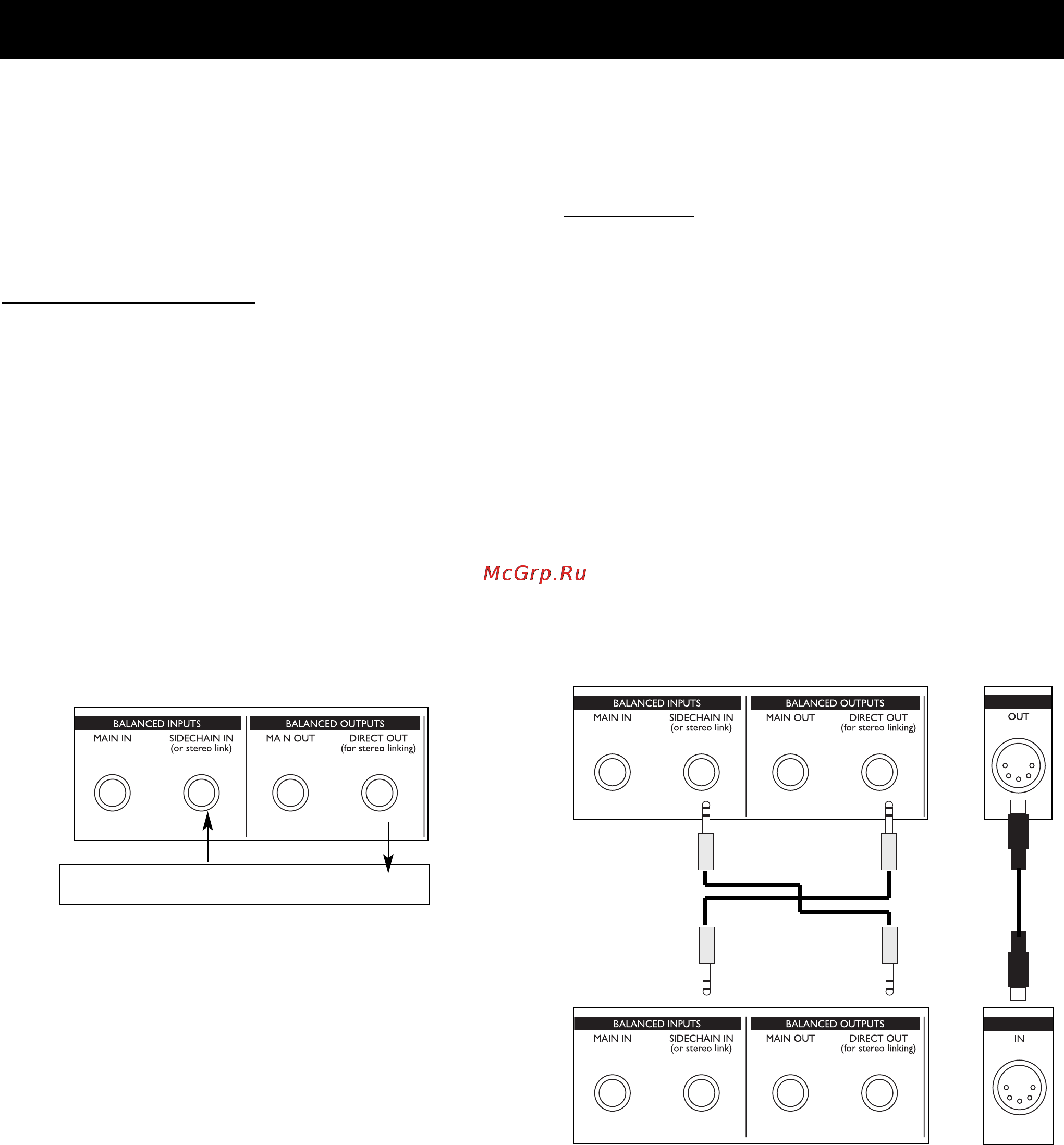

• Connect Direct Out of the “Master” TRIPLE•C to the
Sidechain In of the “Slave” TRIPLE•C and vice versa
(see illustration below).
• Connect MIDI Out from the “Master” to MIDI In on the
“Slave”.
• Go to the I/O menu on both units and select Link “On”.
The “Master” TRIPLE•C is now controlling all parameters of
the “Slave” TRIPLE•C. With this setup the two units will
operate as one stereo Compressor. Both units/channels
will respond and compress the source material according
to the signal present on both Input channels.
Dual Mono Setup
To use two TRIPLE•C units in a dual-mono setup, no
Sidechain connections should be made - only MIDI Out
from the “Master” unit to MIDI In on the “Slave” unit.
Select Link “On” in the I/O menu on both units and all
parameters on the “Master” unit are now automatically
copied to the “Slave” unit. The two units will respond only
to their own Input.
External EQ
TRIPLE•C Stereo Channel
When using the TRIPLE•C Stereo Channel version as a
Single Channel Compressor with Sidechain use:
• Left Input and left Output for source material processing.
• Right Input for Sidechain Input.
• Right Output for Direct Out.
