Kranzle 1+1 [11/20] First operation

Replacement of side

broom Vee belt

Sealing lips

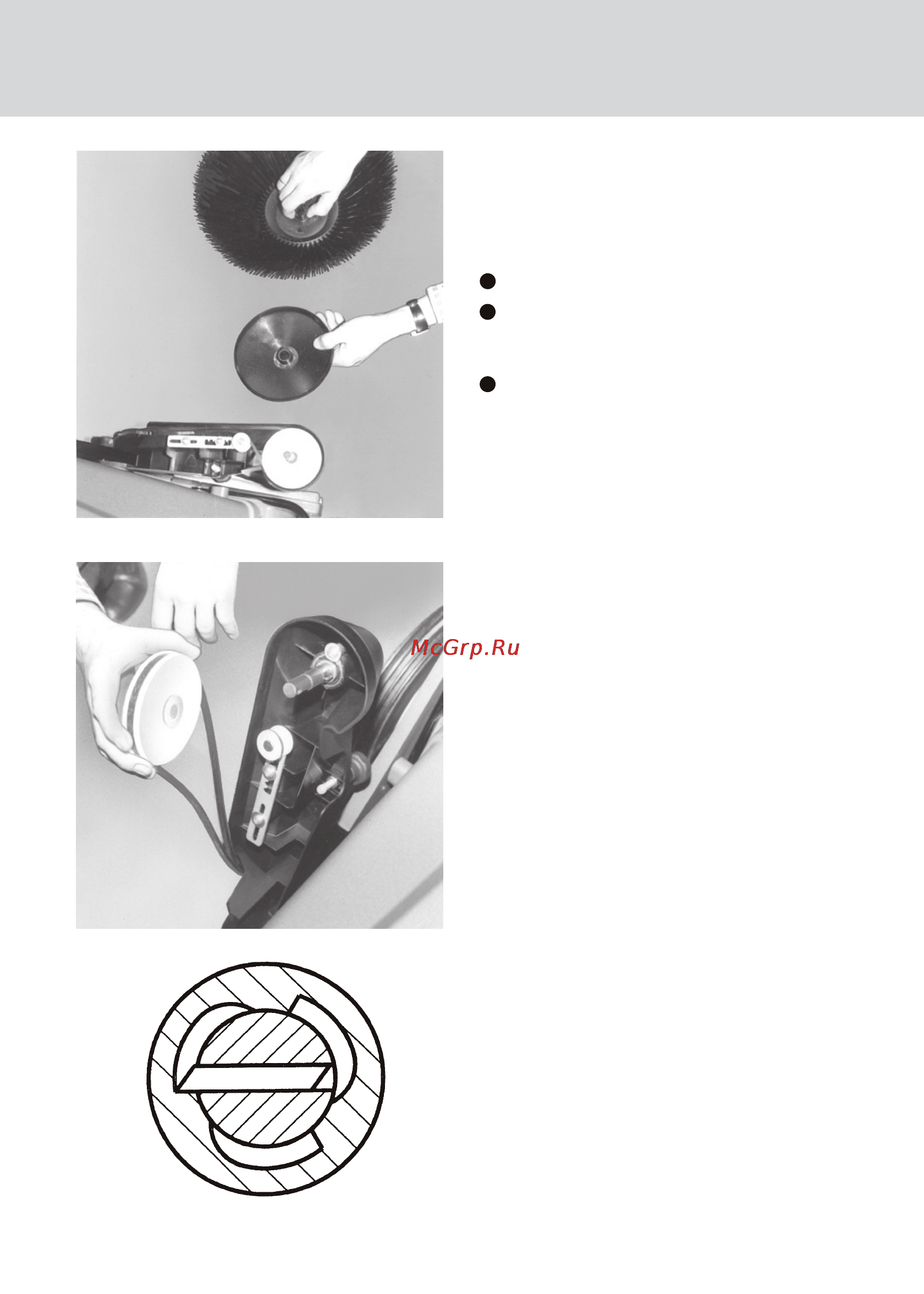

To remove or to re-install a Vee belt,

proceed in the following way:

Check:

Move Vee belt to the right, shaft will

have to follow, move Vee belt to the

left, shaft will have to stand still. (view

into side broom arm).

Location of key:

(bottom view, into side broom arm)

The rubber sealing lips will avoid dust

to be expelled by the broom.

Damaged or worn-out lips will have

to be replaced.

Remove side broom

Remove washers, deflector plate

and spacers from broom shaft (fig.

A);

Remove circlip, pull washers and

pulley with Vee belt off shaft (key

should not drop out from the shaft)

Fit new Vee belt on pulley and

reassemble (reverse the above

procedure).

Note: After having assembled the

pulley, check for key in place (refer

to sketch right above).
