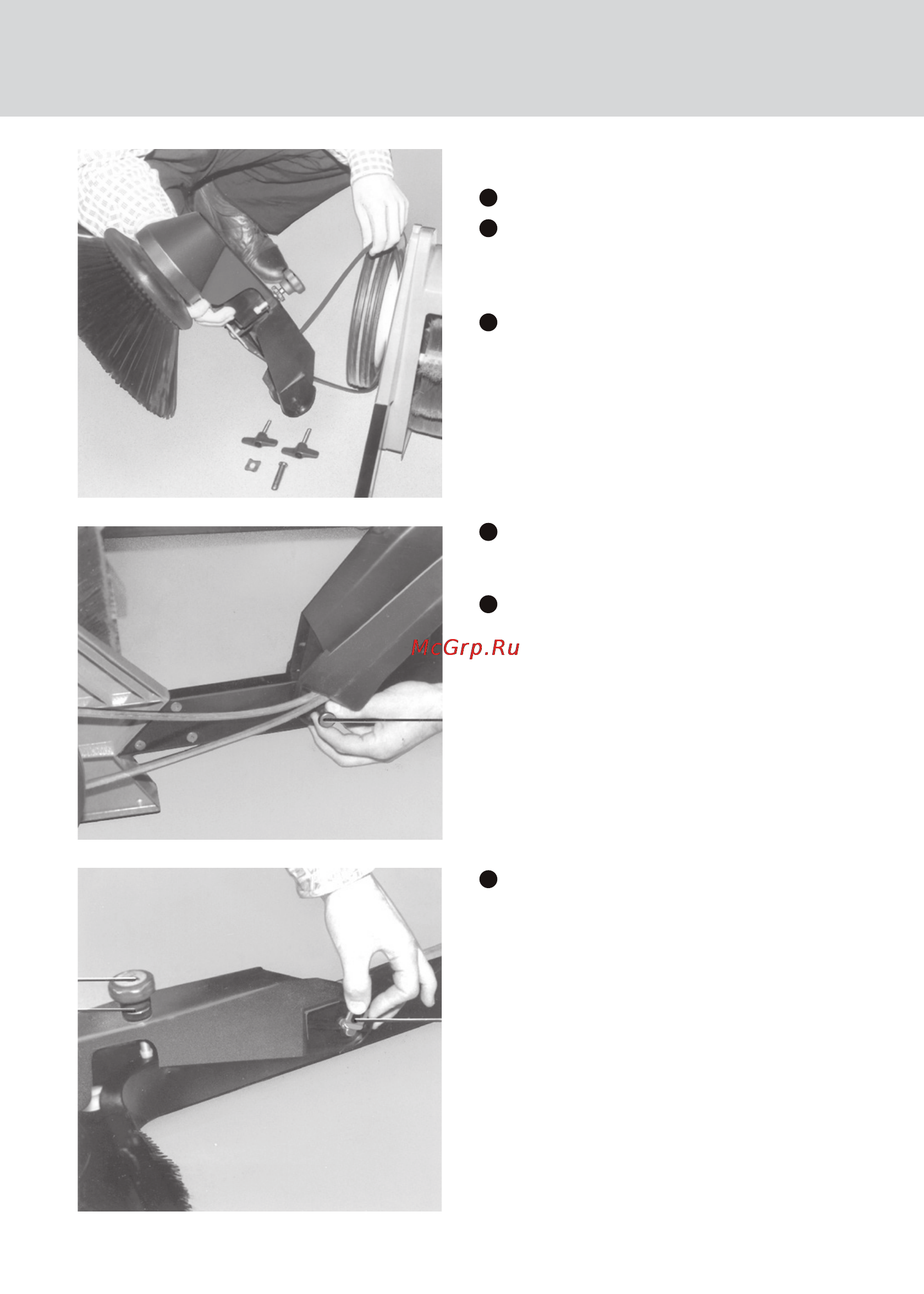

Attach side broom
Unpack side broom arm and broom;
Plug side broom on broom shaft and
secure with bolt; use 10 mm spanner
size. Do not overtorque bolt to avoid
damage to the broom hub;
Place the Vee belt in the pulley over
the RH wheel; side broom will have
to rotate CCW when machine moves
forward (top view)
Attach size broom arm with plug
(C/1) and safety pin (D/3). Introduce
plug from outside;
Slue side broom down and adjust
broom height, or better said, broom
pressure with knurled-head bolt
(D/1); loosen knurled nut (D/2). Side
broom should not be seated on the
floor with more than 2/3 of its circum-
ference. Secure with knurled check-
nut;
Check belt tension, adjust tension as
required (refer to para. “Side broom”
on page 22).
First operation
17
B
C
D
1
3
1
2
