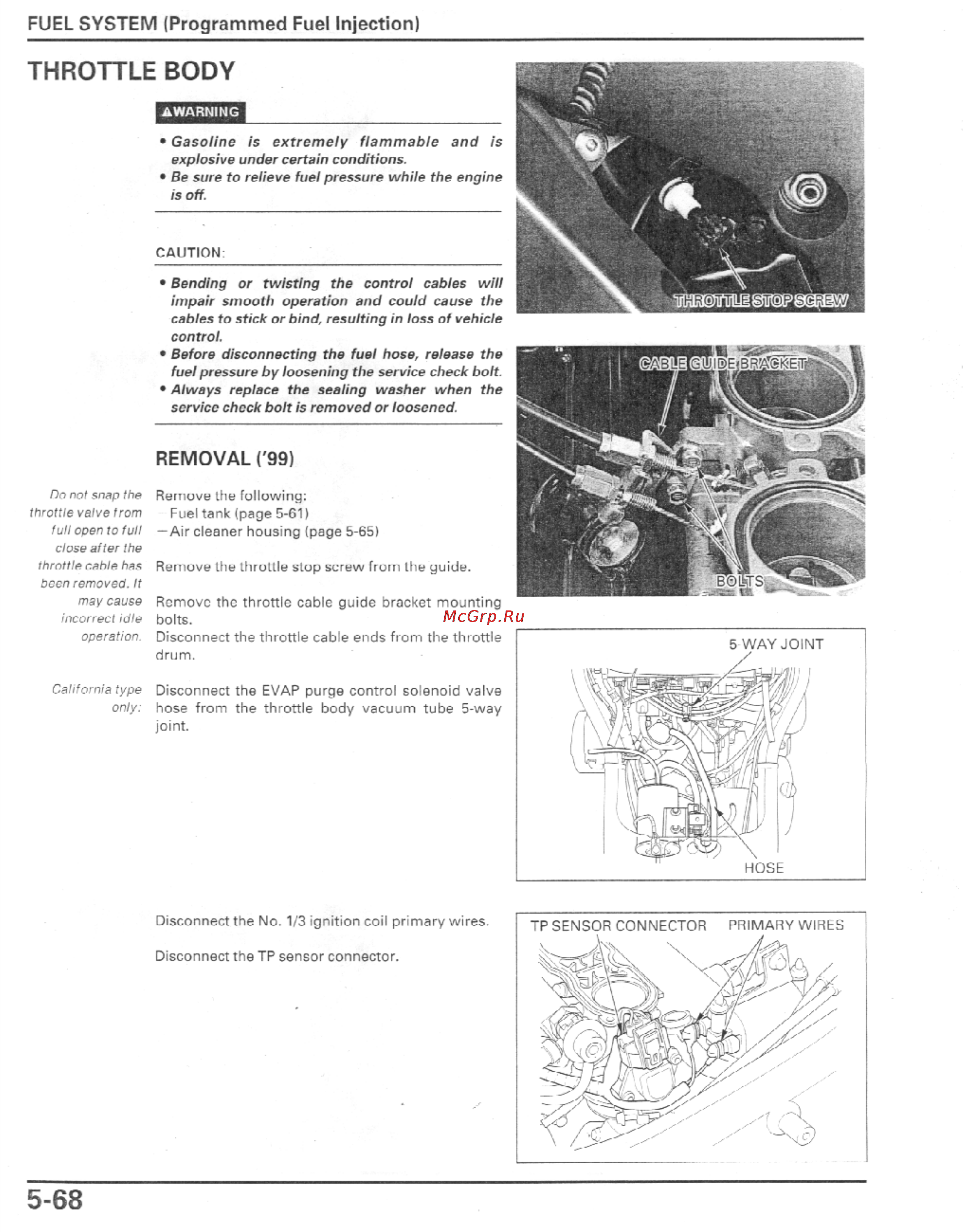

FUEL SYSTEM Programmed Fuel Injection THROTTLE BODY A WARNING Gasoline is extremely flammable and is explosive under certain conditions Be sure to relieve fuel pressure while the engine is off CAUTION Bending or twisting the control cables will impair smooth operation and could cause the cables to stick or hind resulting in loss of vehicle control Before disconnecting the fuel hose release the fuel pressure by loosening the service check bolt Always replace the sealing washer when the service check bolt is removed or loosened REMOVAL 99 Da not snap the Remove the following throttle valve from Fuel tank page 5 61 full open to full Air cleaner housing page 5 65 close after the throttle cable has Remove the throttle slop screw from the guide been removed It may cause Remove the throttle cable guide bracket mounting incorrect idle bolts operation Disconnect the throttle cable ends from the throttle drum California type only Disconnect the EVAP purge control solenoid valve hose from the throttle body vacuum tube 5 way joint Disconnect the No 1 3 ignition coil primary wires Disconnect the TP sensor connector 5 WAY JOINT
