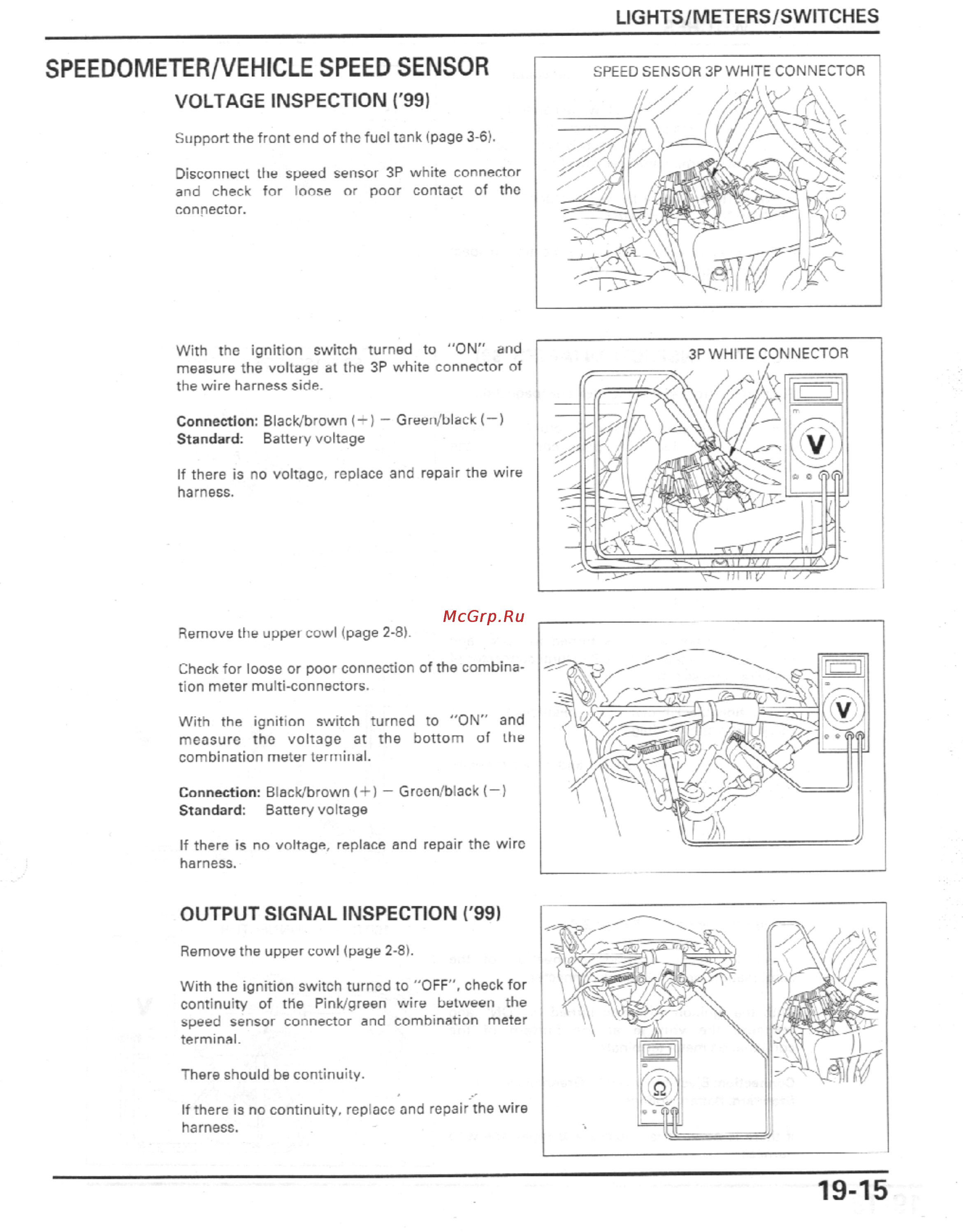

LIGHTS METERS SWIT SPEEDOMETER VEHICLE SPEED SENSOR VOLTAGE INSPECTION 99 Support the front end of the fuel tank page 3 6 Disconnect the speed and check for loose sensor 3P or poor white contact connector of the connector With the ignition switch turned to measure the voltage at the 3P white ON and connector of the wire harness side Connection Black brown Green black Standard Battery voltage If there is no voltage replace and repair the wire harness Remove the upper cowl page 2 8 Check for loose or poor connection of the combina tion meter multi connectors With the measure ignition the switch voltage turned at to the ON and of the bottom combination meter terminal Connection Black brown Green black Standard Battery voltage If there is no voltage replace and repair the wire harness OUTPUT SIGNAL INSPECTION 991 Remove the upper cowl page 2 8 With the ignition switch turned to OFF check for continuity of the Pink green wire between the speed sensor connector and combination meter terminal There should be continuity If there harness is no continuity replace and repair the wire
