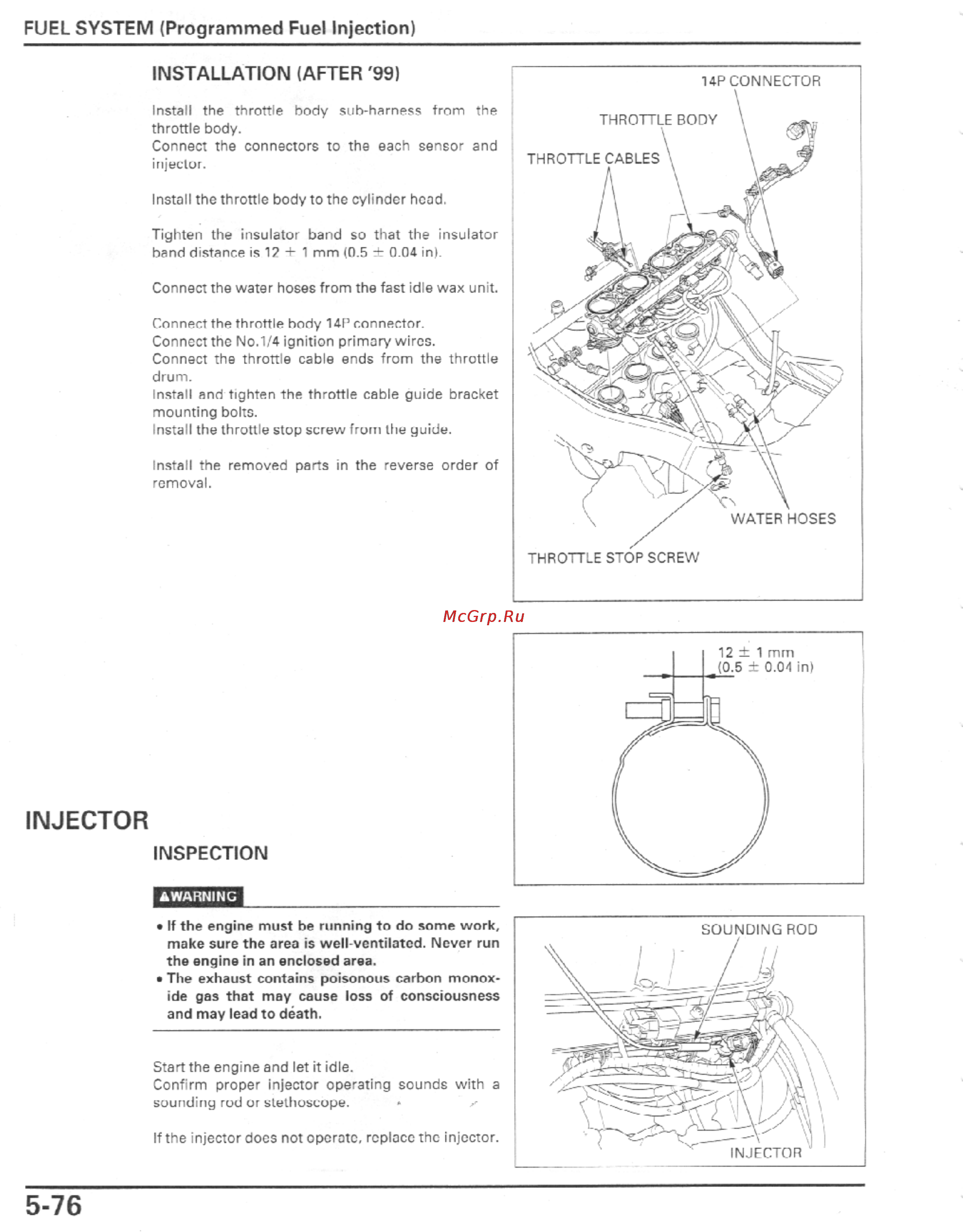

FUEL SYSTEM Programmed Fuel Injection INSTALLATION AFTER 99 Install the throttle body sub harness from throttle body Connect the connectors to the each sensor injector the and Install the throttle body to the cylinder head Tighten the insulator band so that band distance is 12 1 mm 0 5 0 04 in the insulator Connect the water hoses from the fast idle wax unit Connect the throttle body 141 connector Connect the No 1 4 ignition primary wires Connect the throttle cable ends from the throttle drum Install and tighten the throttle cable guide bracket mounting bolts Install the throttle stop screw from the guide Install the removed parts in the reverse order of removal INJECTOR INSPECTION AWARNING If the engine must be running to do some work make sure the area is well ventilated Never run the engine in an enclosed area The exhaust contains poisonous carbon monox ide gas that may cause loss of consciousness and may lead to death Start the engine and let it idle Confirm proper injector operating sounding rod or stethoscope sounds If the injector docs not operate replace the injector with a
