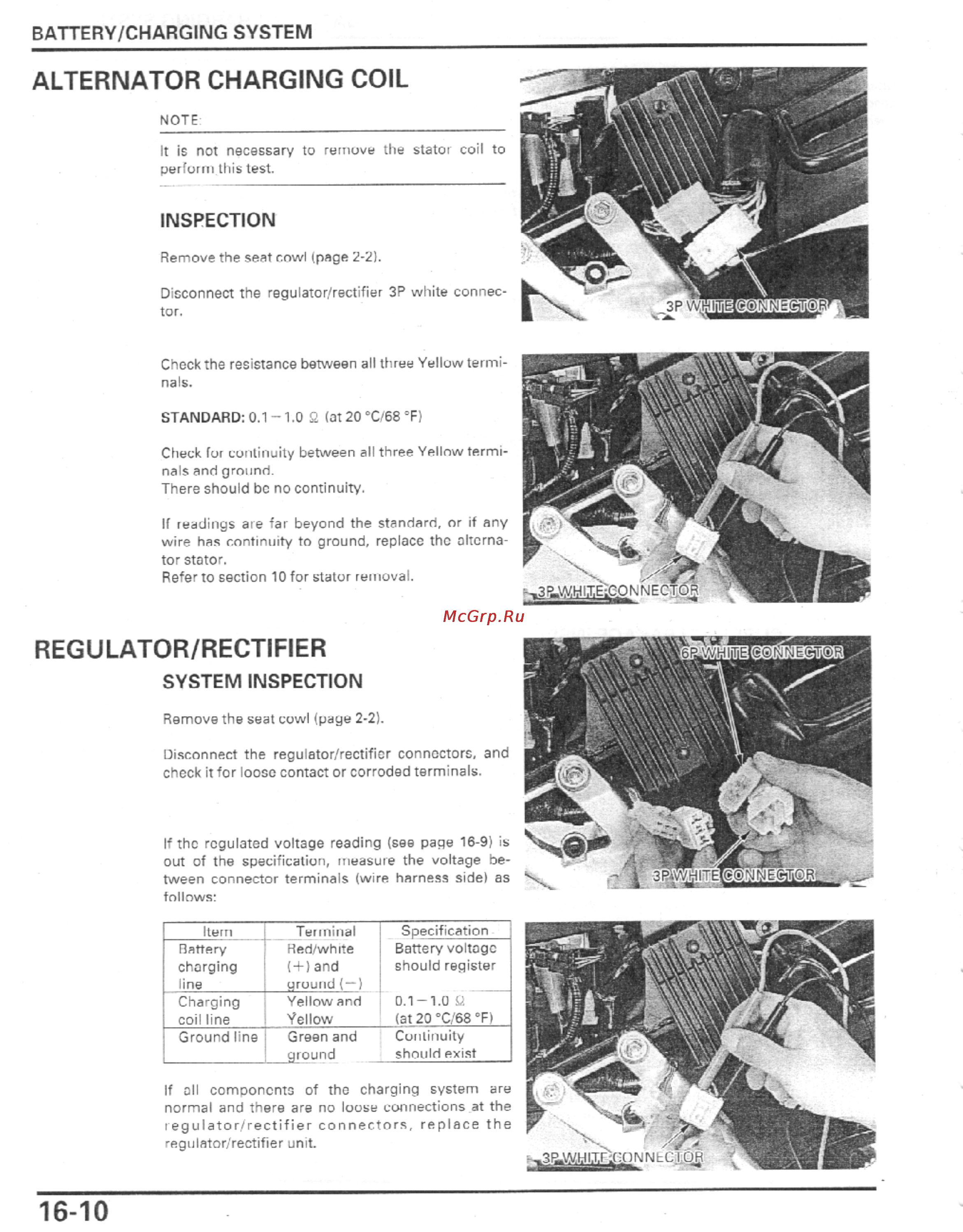

BATTERY CHARGING SYSTEM ALTERNATOR CHARGING COIL NOTE It is not necessary to remove the stator coil to perform this test INSPECTION Remove the seat cowl page 2 2 Disconnect tor the regulator rectifier 3P white connec Check the resistance between all three Yellow termi nals STANDARD 0 1 1 0 2 at 20 C 68 F Check for continuity between all three Yellow termi nals and ground There should be no continuity If readings are far beyond the standard or if any wire has continuity to ground replace the alterna tor stator Refer to section 10 for stator removal REGULATOR RECTIFIER SYSTEM INSPECTION Remove the seat cowl page 2 2 Disconnect the regulator rectifier connectors check it for loose contact or corroded terminals and If the regulated voltage reading see page 16 9 is out of the specification measure the voltage be tween connector terminals wire harness side as follows Item Battery charging line Charging coil line Ground line Terminal Red white and ground Yellow and Yellow Green and ground Specification Battery voltage should register 0 1 1 0 2 at 20 C 68 F Continuity should exist If all components of the charging system are normal and there are no loose connections at the regulator rectifier connectors replace the regulator rectifier unit
