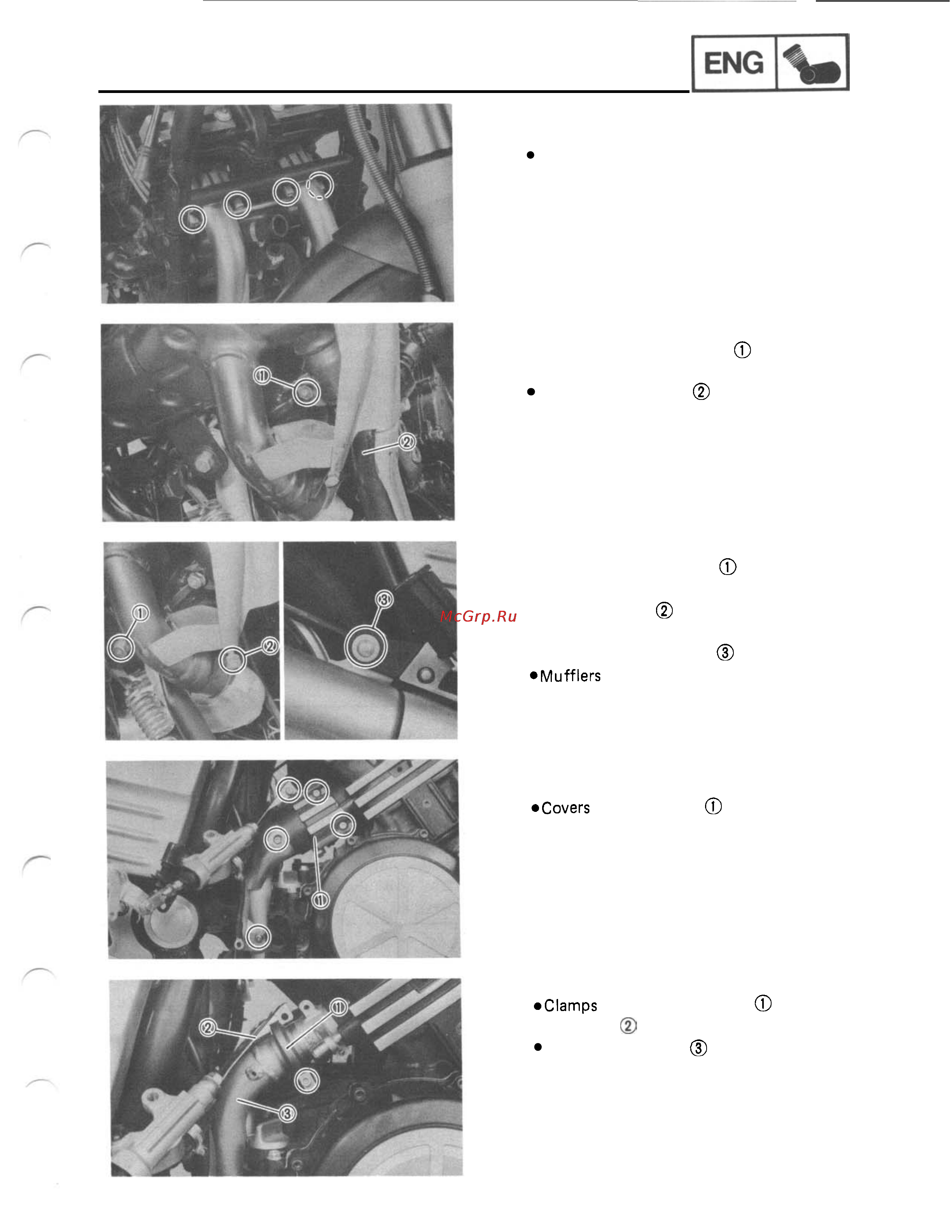

ENGINE REMOVAL
EXHAUST
PIPE
AND
MUFFLER
1.
Remove:
Flange bolts (front exhaust pipe)
2.
Loosen:
3.
Remove:
*Bolts (front exhaust pipe)
Front exhaust pipes
4.
Remove:
5.
Loosen:
6.
Remove:
*Bolt (muffler chamber)
*Bolts (muffler)
*Bolts (muffler bracket)
7.
Remove:
*Screws (rear exhaust protector)
(rear exhaust)
8.
Remove:
(rear exhaust pipes)
*Protector
Rear exhaust pipes
3
-
6
