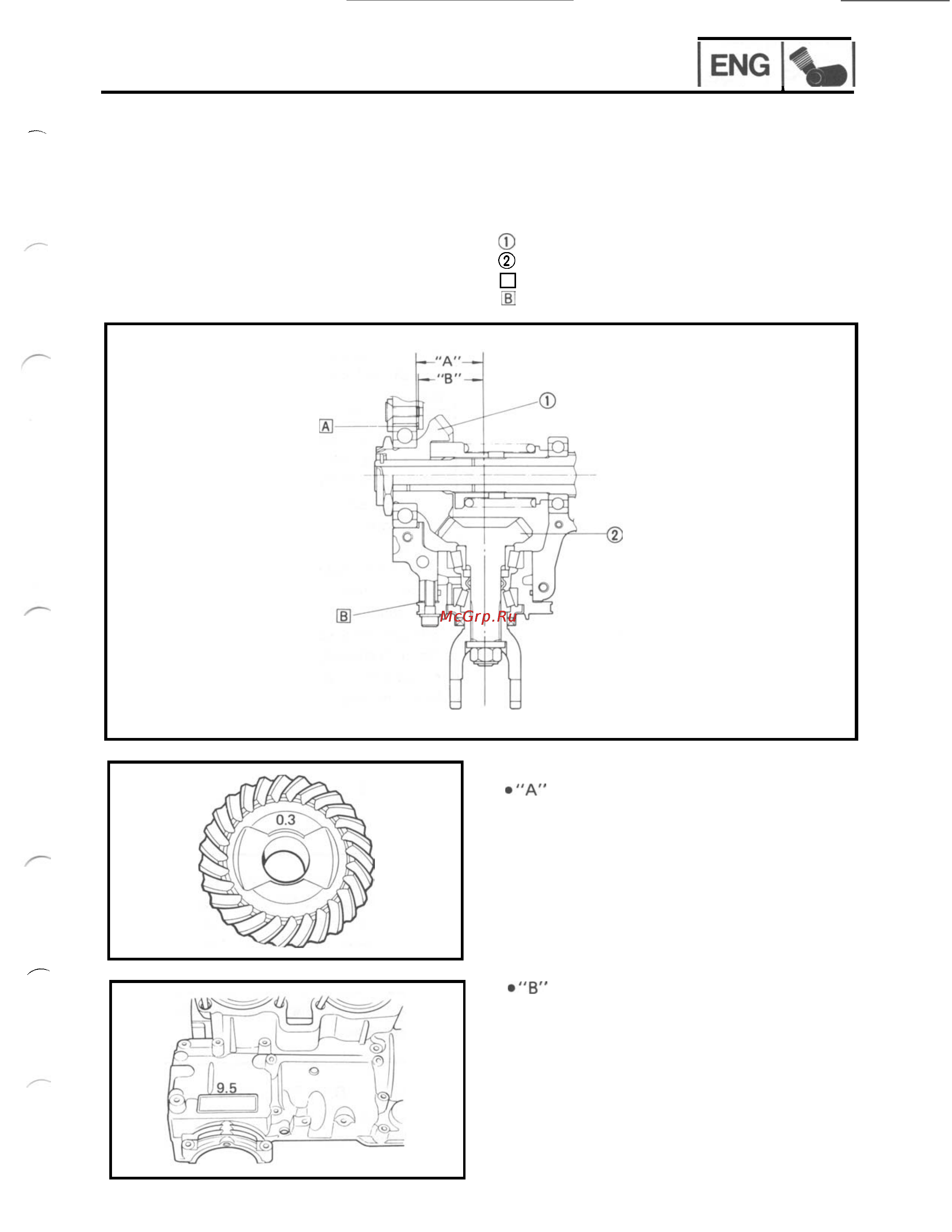

MIDDLE GEAR SERVICE
.
I
DRIVE
AXLE
POSITIONING
When the crankcase assembly and/or the drive
axle are replaced, you must position the drive
axle i n place.
Refer to
"
Drive Pinion Gear Shim Selection and
Middle Gear Lash Adjustment
"
section.
Drive pi n ion gear
Driven pinion gear
A Drive pinion
gear
shim
Driven pinion gear shim
Drive Pinion Gear
Shim
Selection
=
54.5
plus or minus the number stamped
on the drive pinion gear.
=
53
plus the number stamped on the left-
side rear of the upper crankcase.
3
-
46
