Performing a scan to server (FTP) operation

NC-503 8-11

When "MANUAL" is selected

Note

If "MANUAL" was selected, the scanning size can be changed.

The settings available for the scanning size are METRIC ("A3w", "A4w",

"A4v", "A5w", "A5v", "B4w", "B5w", "B5v", "FLSw", "8Kw", "16Kw",

"16Kv") and INCH ("11e17", "11e14", "LGLw", "LTRw", "LTRv",

"INVw" and "INVv").

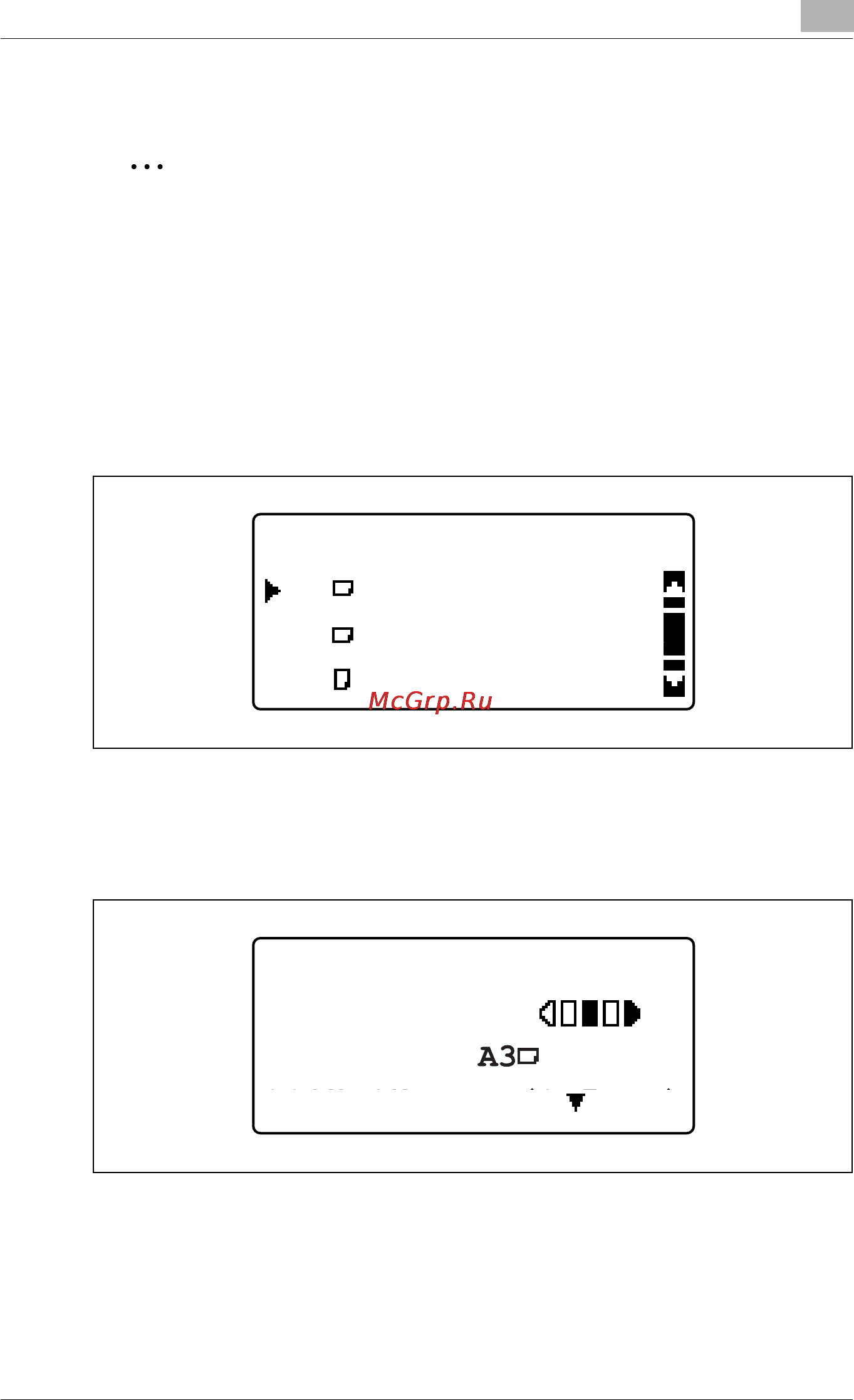

1 If "MANUAL" was selected in step 6 and the [OK] key is pressed, the

following screen appears.

2 Press the [,] or [+] key until the appropriate scanning size is selected,

and then press the [OK] key.

The selected scanning size appears.

SCAN SIZE

300x300dpi TIFF 100%

SCAN SIZE( )

TEXT/PHOTO

SCAN=OK (SIZE= )
