Konica Minolta bizhub 163f [263/340] System tab maintenance counter

Using PageScope Web Connection

NC-503 9-19

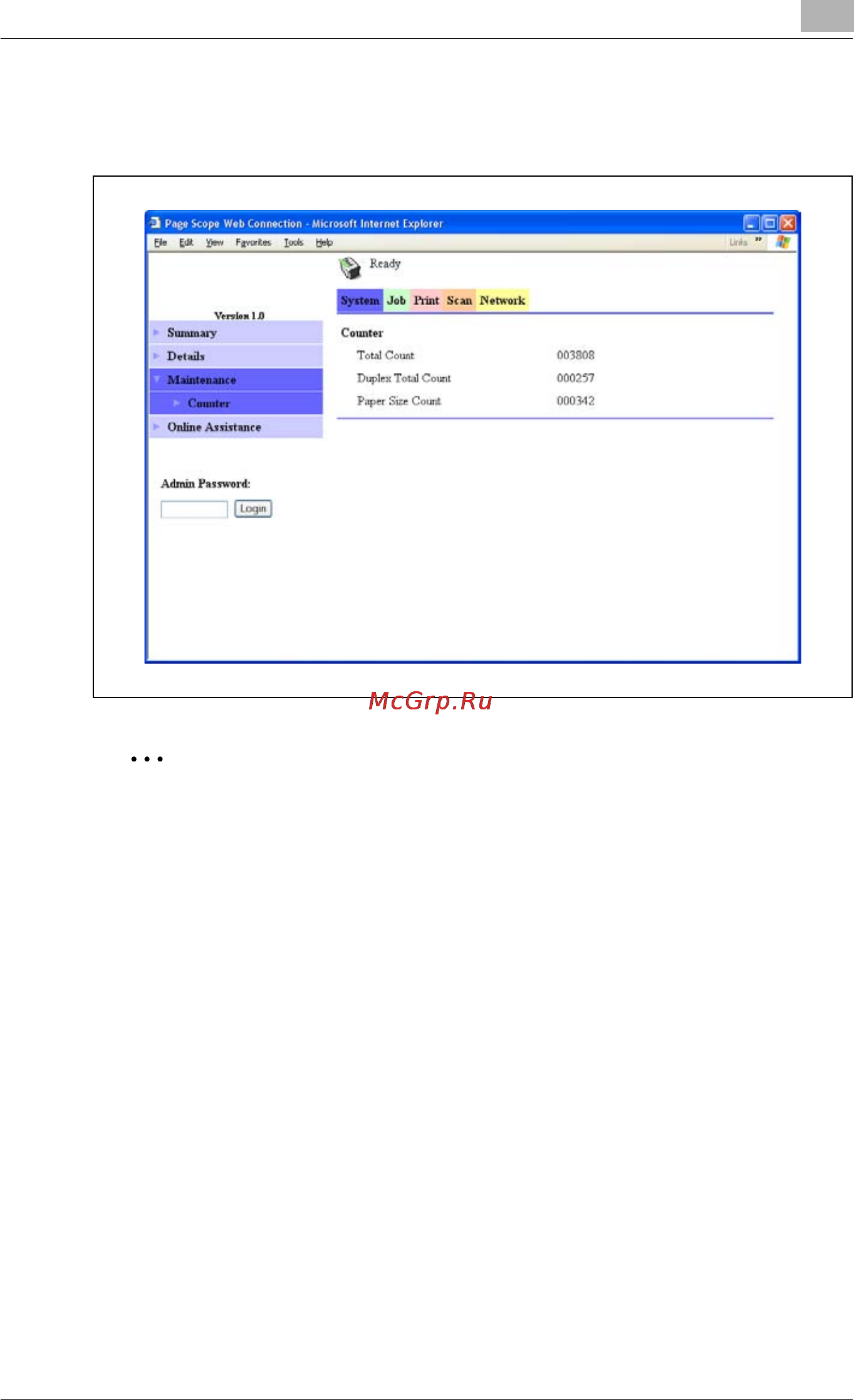

System tab — Maintenance — Counter

Counters managed by the machine can be displayed.

Note

The information that is displayed differs depending on the installed

options and the specified settings.
