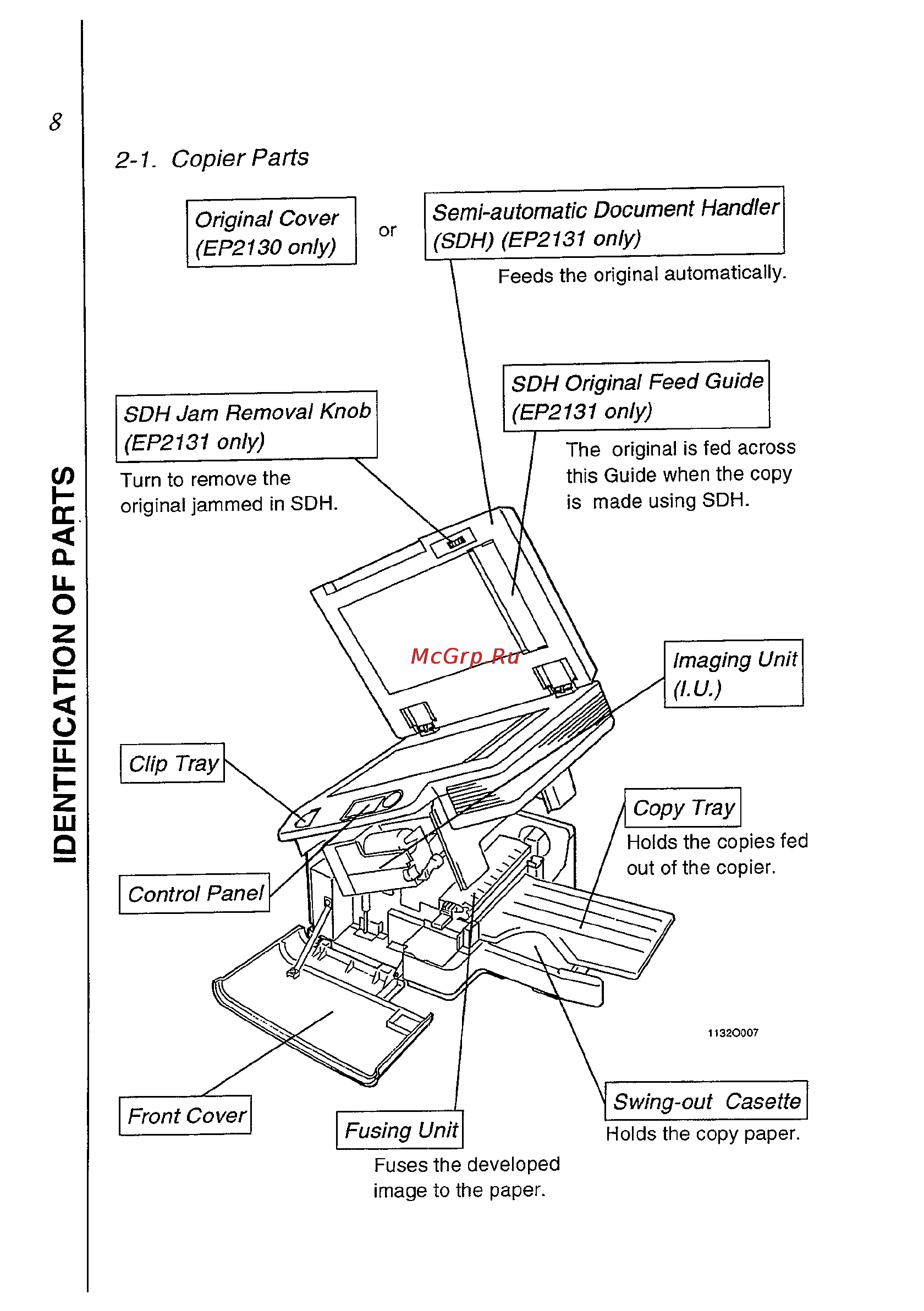

8 2 1 Copier Parts Original Cover EP2130 only or Semi automatic Document Handler SDH EP2131 only ___________ Feeds the original automatically SDH Original Feed Guide EP2131 only IDENTIFICATION OF PARTS SDH Jam Removal Knob EP2131 only The original is fed across this Guide when the copy is made using SDH Turn to remove the original jammed in SDH Imaging Unit I U Clip Tray Copy Tray Holds the copies fed out of the copier Control Panel 11320007 Front Cover Swing out Casette Fusing Unit Fuses the developed image to the paper Holds the copy paper
