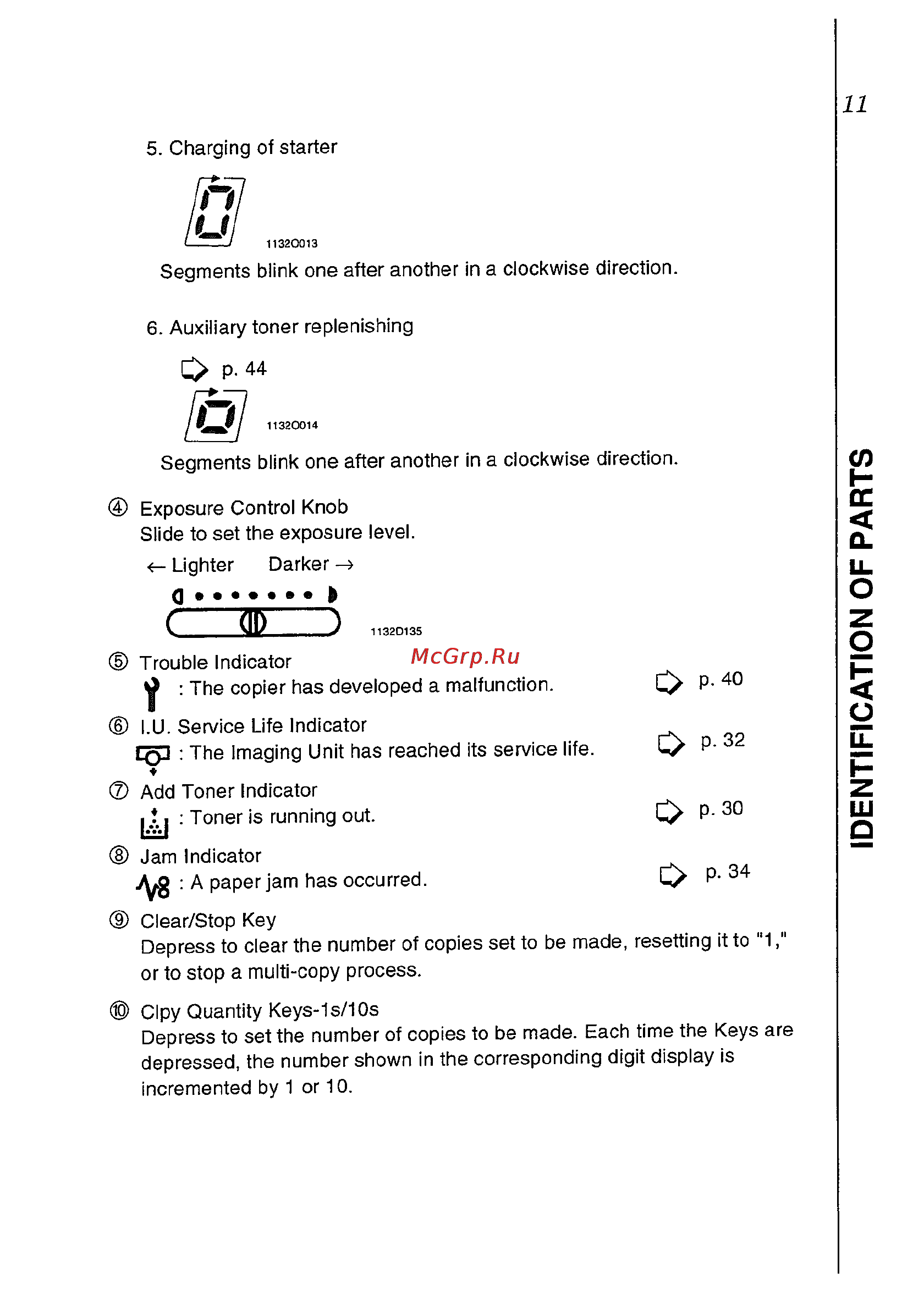

11 5 Charging of starter 11320013 Segments blink one after another in a clockwise direction 6 Auxiliary toner replenishing Segments blink one after another in a clockwise direction Exposure Control Knob Slide to set the exposure level Lighter Darker 4 a 3 1132D135 Trouble Indicator y The copier has developed a malfunction p 40 LU Service Life Indicator EQ The Imaging Unit has reached its service life p 32 Add Toner Indicator Toner is running out p 30 Jam Indicator A paper jam has occurred o p 34 Clear Stop Key Depress to clear the number of copies set to be made resetting it to 1 or to stop a multi copy process Clpy Quantity Keys 1s 10s Depress to set the number of copies to be made Each time the Keys are depressed the number shown in the corresponding digit display is incremented by 1 or 10 IDENTIFICATION OF PARTS O P 44
