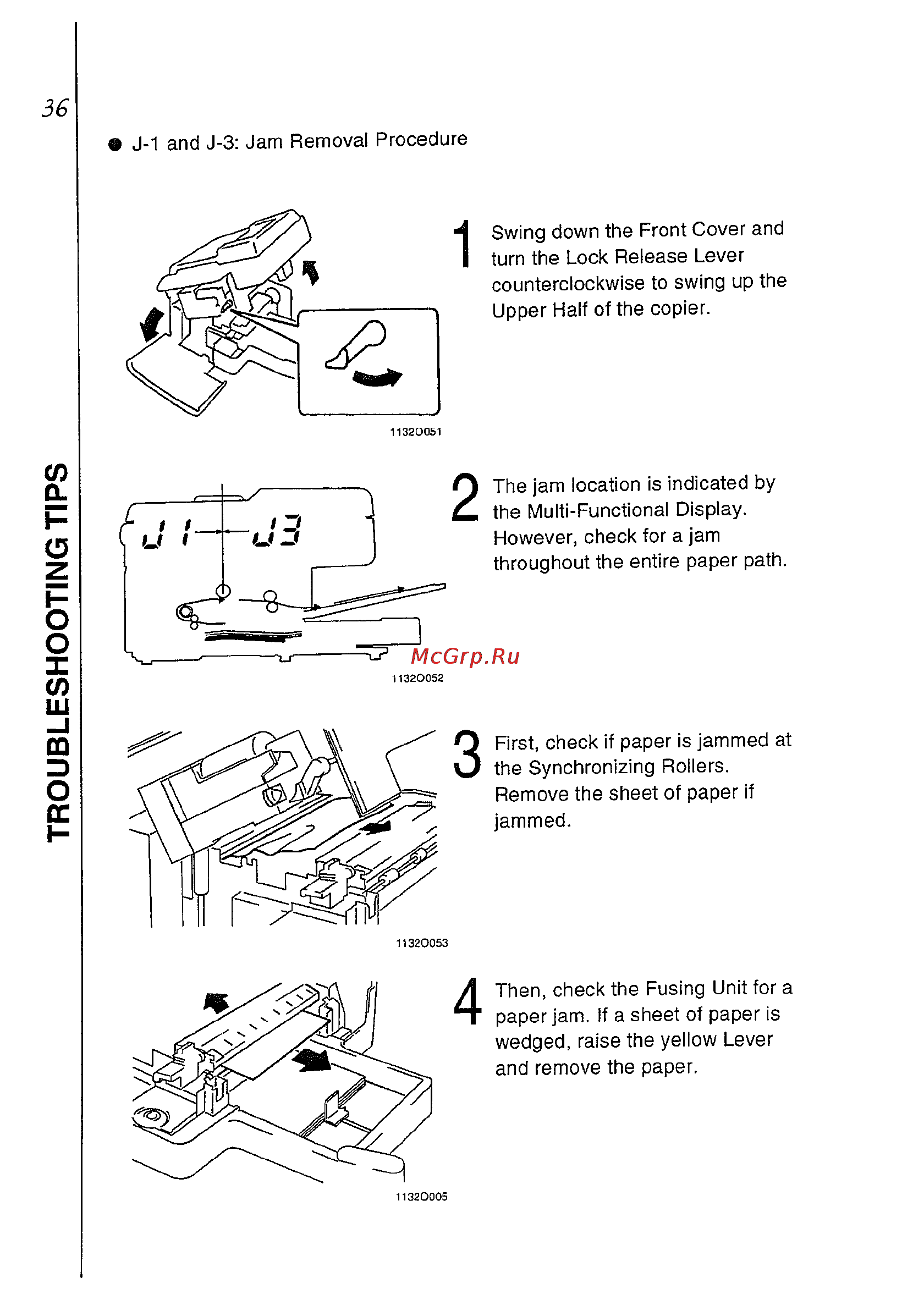

36 J 1 and J 3 Jam Removal Procedure TROUBLESHOOTING TIPS Swing down the Front Cover and turn the Lock Release Lever counterclockwise to swing up the Upper Half of the copier The jam location is indicated by the Multi Functional Display However check for a jam throughout the entire paper path 11320052 First check if paper is jammed at the Synchronizing Rollers Remove the sheet of paper if jammed 11320053 4 11320005 Then check the Fusing Unit for a paper jam If a sheet of paper is wedged raise the yellow Lever and remove the paper
