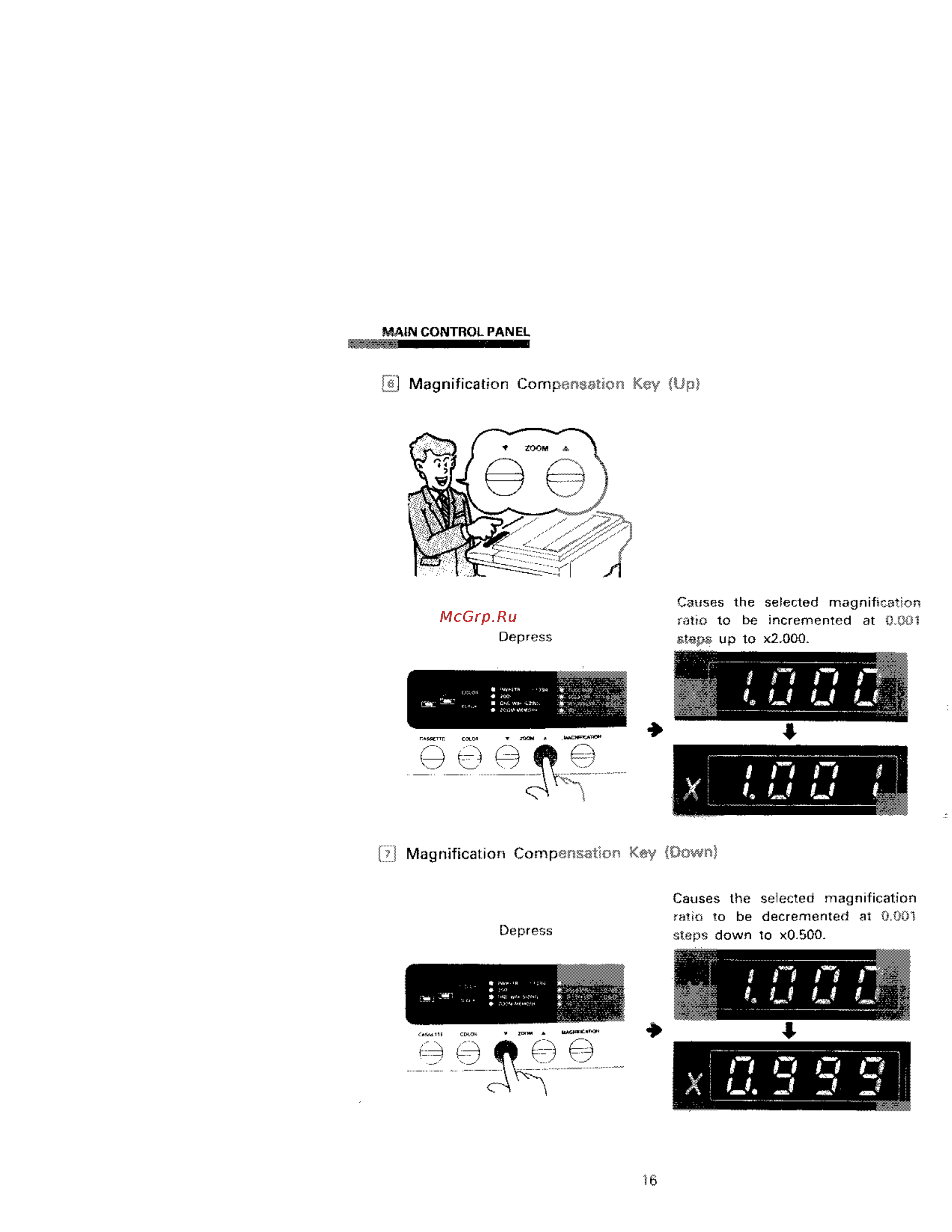

MAIN CONTROL PANEL 0 Magnification Compensation Key Up Causes the selected magnification ratio to be incremented at 0 001 steps up to x2 000 p Magnification Compensation Key DownJ Causes the selected magnification ratio to be decremented at 0 001 steps down to x0 500 Depress 16
