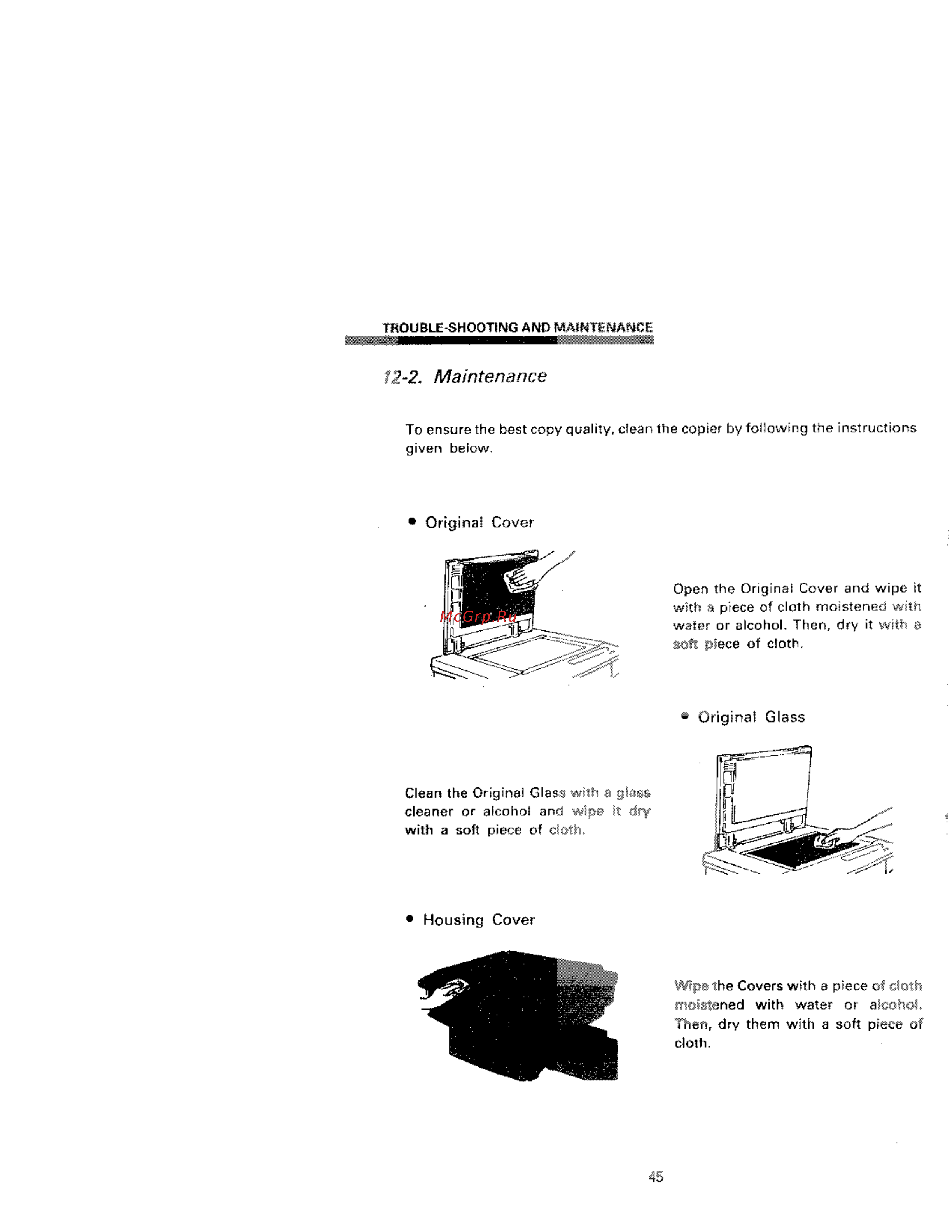

TROUBLE SHOOTING AND MAINTENANCE 12 2 Maintenance To ensure the best copy quality clean the copier by following the instructions given below Original Cover Open the Original Cover and wipe it with a piece of cloth moistened with water or alcohol Then dry it with a soft piece of cloth Original Glass Clean the Original Glass with a glass cleaner or alcohol and wipe it dry with a soft piece of cloth Housing Cover Wipe the Covers with a piece of cloth moistened with water or alcohol Then dry them with a soft piece of cloth 45
