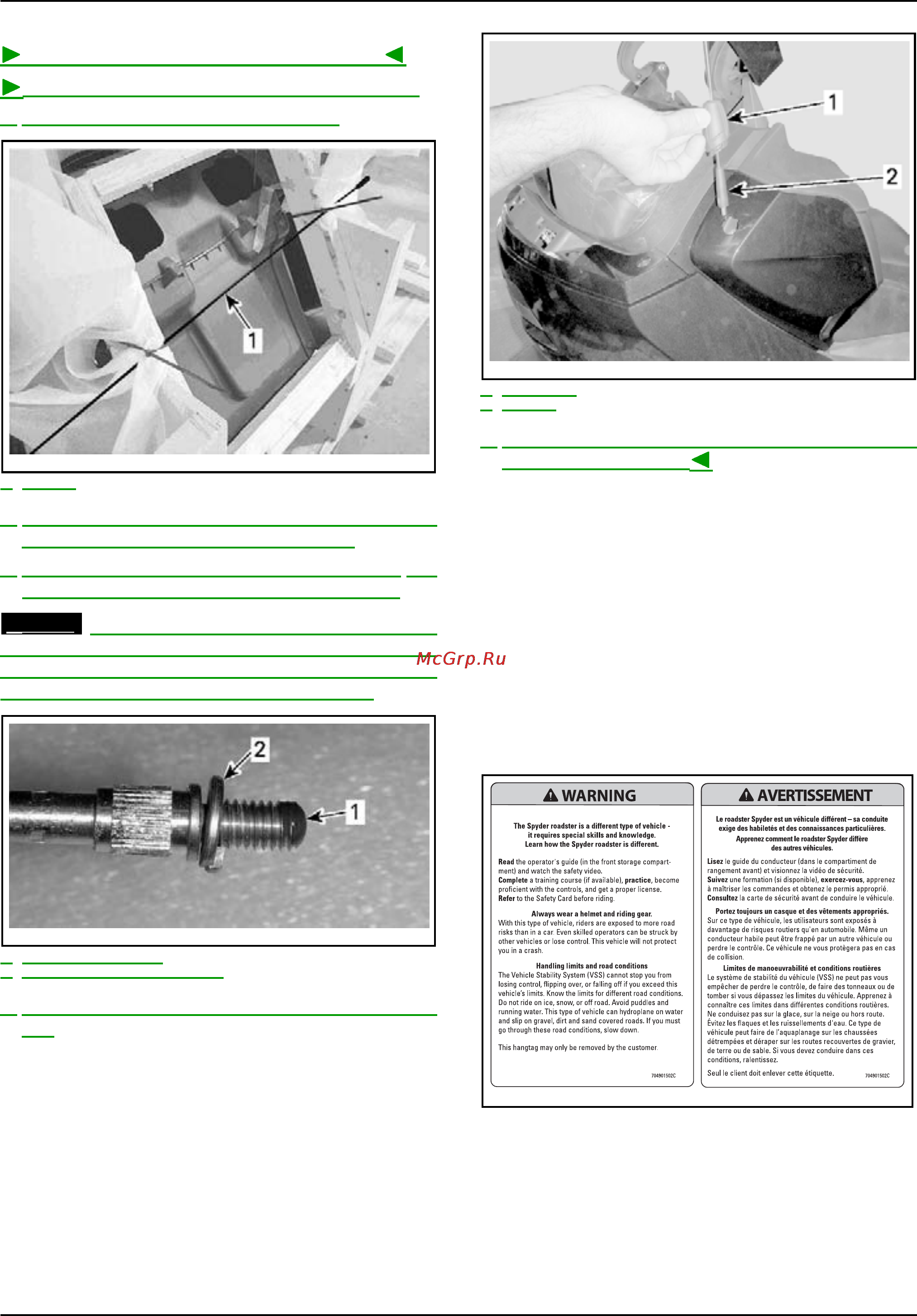

PARTS TO BE INSTALLED
Ante nna (Option Package)
RT Audio & Convenience and RT-S Models
1. Detach antenna from the sub-crate.
rbl2010-002-033_a
1. Antenna
2. Insert the M6 stainless steel lock washer (from
PDI kit) and rubber cap onto antenna .
3. Apply one
drop of LOCTITE 243 (BLUE) (P/N 293
800 060) o
n the first thread of th e antenna.
NOTICE
To avoid hydro-lock or further loos-
ening problems, do not add the threadlocker in
other lo cation and do not apply more than the
recommended quantity of threadlocker.
rbg2010-007-002_a
1. Drop of LOCTITE 243
2. M6 stainless steel lock washer
4. Posit
ion antenna on RH side of rear cargo mod-
ule.
rbl2010-002-031_a
1. Rubber cap
2. Antenna
5. Tighten antenna then install rubber cap on vehi-
cle (tighten by hand).
Hang Tag and Safety Labels
This vehicle comes with a hang tag and labels
containing important safety information. The
labels are considered permanent parts of the
vehicle and should not be removed. Hang tag is
to be removed by the owner only.
Any person who rides this vehicle should read and
understand all the information given on hang tag
and safety labels before riding.
Safety labels of several language can be chosen
by customer, according to availability.
rmo2008-001-102
Licence Plate
NOTE: When a license plate needs to be installed
or replaced, ensure to install new damping pad
(P/N 293 740 028).
1. Remove existing plate on vehicle (if applicable).
2. Pea
l off backing of new damping pad.
20 / 39 2010-1 PREDELIVERY
