ADJUSTMENTS
Brake Disc Cleanup
1. Clean front and rear brake discs using PULLEY
FLANGE CLEANER (P/N 413 711 809)
.
NOTICE
A thin layer of anticorrosion treat-
ment is present on the brake discs and must
be removed before using the vehicle. Not con-
forming to this procedure may lead to a brake
chattering squeaking and brake pad replace-
ment would be necessary.
ADJUSTMENTS
Guidelines
All adjustments have already been performed
at factory. It is only necessary to validate them.
However, if readjustment is needed, refer to the
appropriate
ROADSTER SHOP MANUAL
for the
proper procedure.
Drive Belt
NOTICE
Always verify drive belt tension with
all parts at room temperature and the rear
wheel lifted of the ground.
1. Place vehicle on a level surface.
NOTE: The area must be protected against wind
and must have a very low background noise.
2. Set transmission to NEUTRAL.
3. Lift rear of vehicle by the frame until rear wheel
is off the ground.
NOTICE
Do not lift under rear shock absorber.
Always lift by the frame. Refer to illustration.

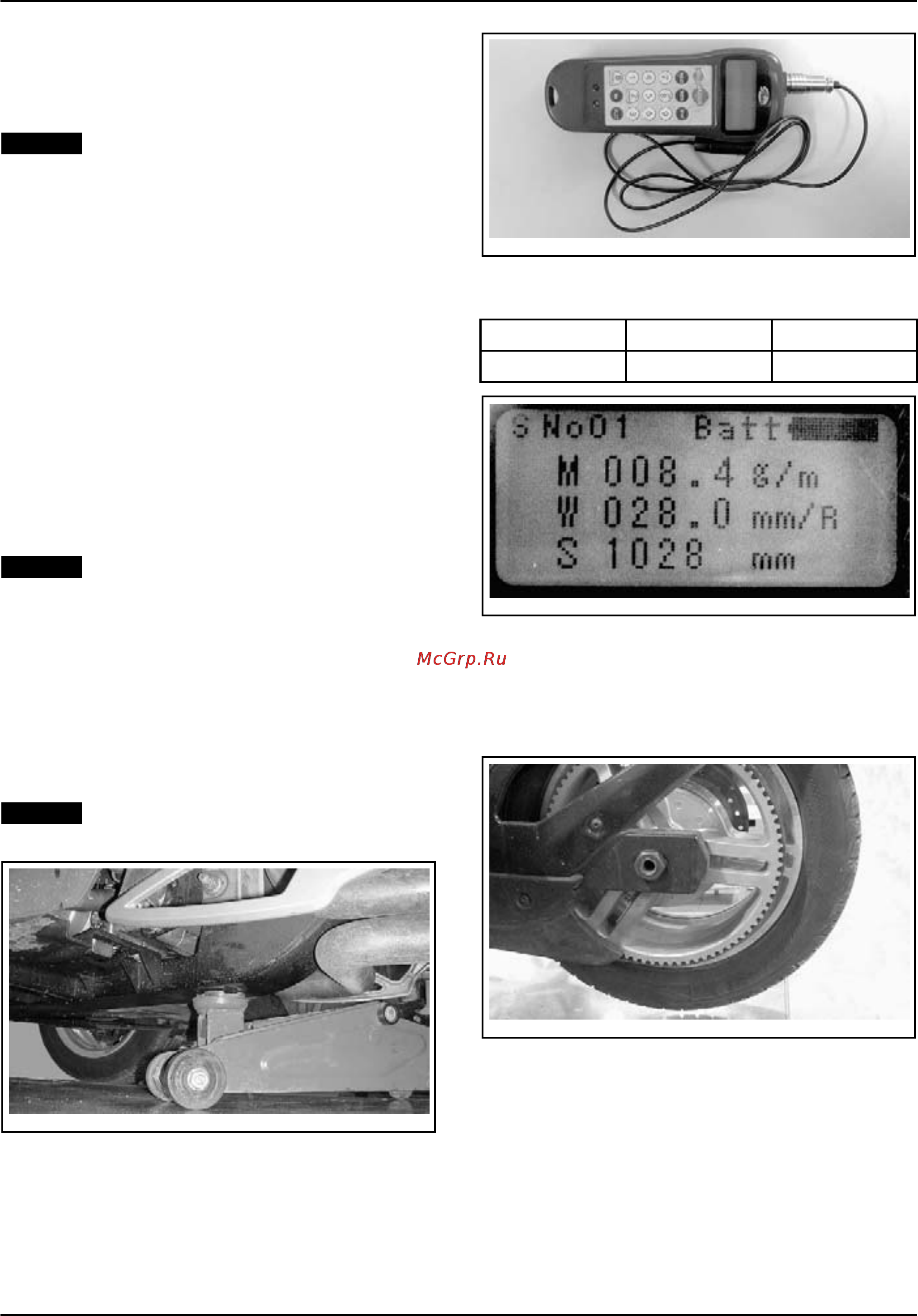

rmr2008-030-009
TYPICAL - LIFT BY TH E FRAME
4. To check the drive belt tension use the BELT
TENSION METER (P/N 529 036 115)
.
529036115
5. Enter the following specifications to program
the meter.
MASS WIDTH SPAN
8.4 g/m 28.0 mm /R 1028 mm
rmr2008-031-002
SONIC TENSIO N METER D ISPLAY
NOTE: Ref
er to the manufacturer's instructions to
set the in
formations into the device.
6. Turn rear wheel to align a wheel spoke with the
swing arm.
rmr2008-031-003
TYPICAL - SWING ARM ALIGNS WITH A SPOKE
7. Position the sensor under the LH passenger
footrest and hold the sonic tension meter sen-
sor approximately 1 cm (1/2 in) from belt or
closer without touching the belt.
26 / 39 2010-1 PREDELIVERY
