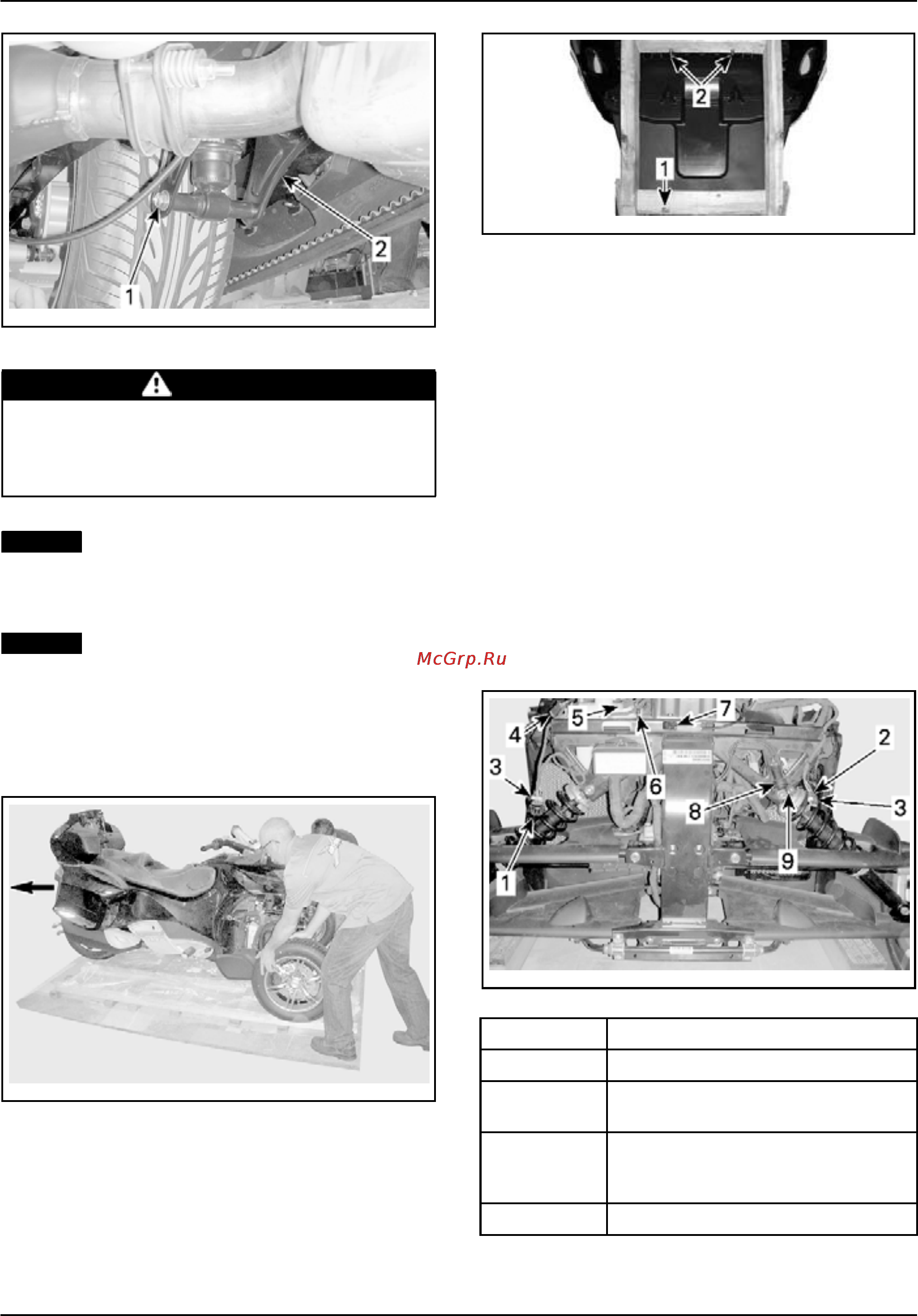

PARTSTOBEINSTALLED
rbl2010-002-022_a
1. Shock absorber bolt
2. Lower bracket
WARNING
SE5 models a
re automatically set in neutral
position wh
en engine is stopped. Always
secure the r
ear wheel of vehicle with proper
blocks to a
void moving.
NOTICE
Be ready to
apply brake with your
foot as you
move the vehicle since there is
no brake le
ver on the handlebars. The brake
pedal is i
n front of the right footpeg.
NOTICE
Always move vehicle rearward out of
the crate base.
NOTE: Brake pedal applies the brakes for the
three wheels. Press it down to operate.
9. With the help of your assistant, move vehicle
rearward out of the crate base.
rbl2010-002-021_a
PARTS TO BE INSTALLED
Front Cargo Module
1. Remove and discard bolts and nuts holding the
bottom and the top sections of sub-crate.
rbl2008-003-204_a
1. Bolt and nut holding the bottom section
2. Bolts and nuts holding the top section
NOTE: Be careful not to lose the caged nut located
in the bottom fixation hole of the front cargo mod-
ule.
2. Open front storage compartment cover.
3. Ensure that the front storage compartment in-
cludes the following items:
– Operator's Guide
– Predelivery (PDI) Check List
–SafetyDVD
– Service covers (2x)
–PDIkit.
– Windshield trim (2x)
– Mudguard (2x)
4. Ensure that the following cables and connec-
tors are accessible prior to installing front cargo
module, cut locking ties if required.
rbl2010-002-023_a
REFER
TO THE FOLLOWING TABLE FOR ITEMS DESCRIPTION
ITEMS DESCRIPTION
1
AAPTS sensor connector
2
Horn connector (hidden on
the illustration)
3
RH and LH auxiliary light connector
- Low beam light (CE)
- Fog light (option package)
4
DLC connector (B.U.D.S.)
PREDELIVERY 2010-1 9 / 39
