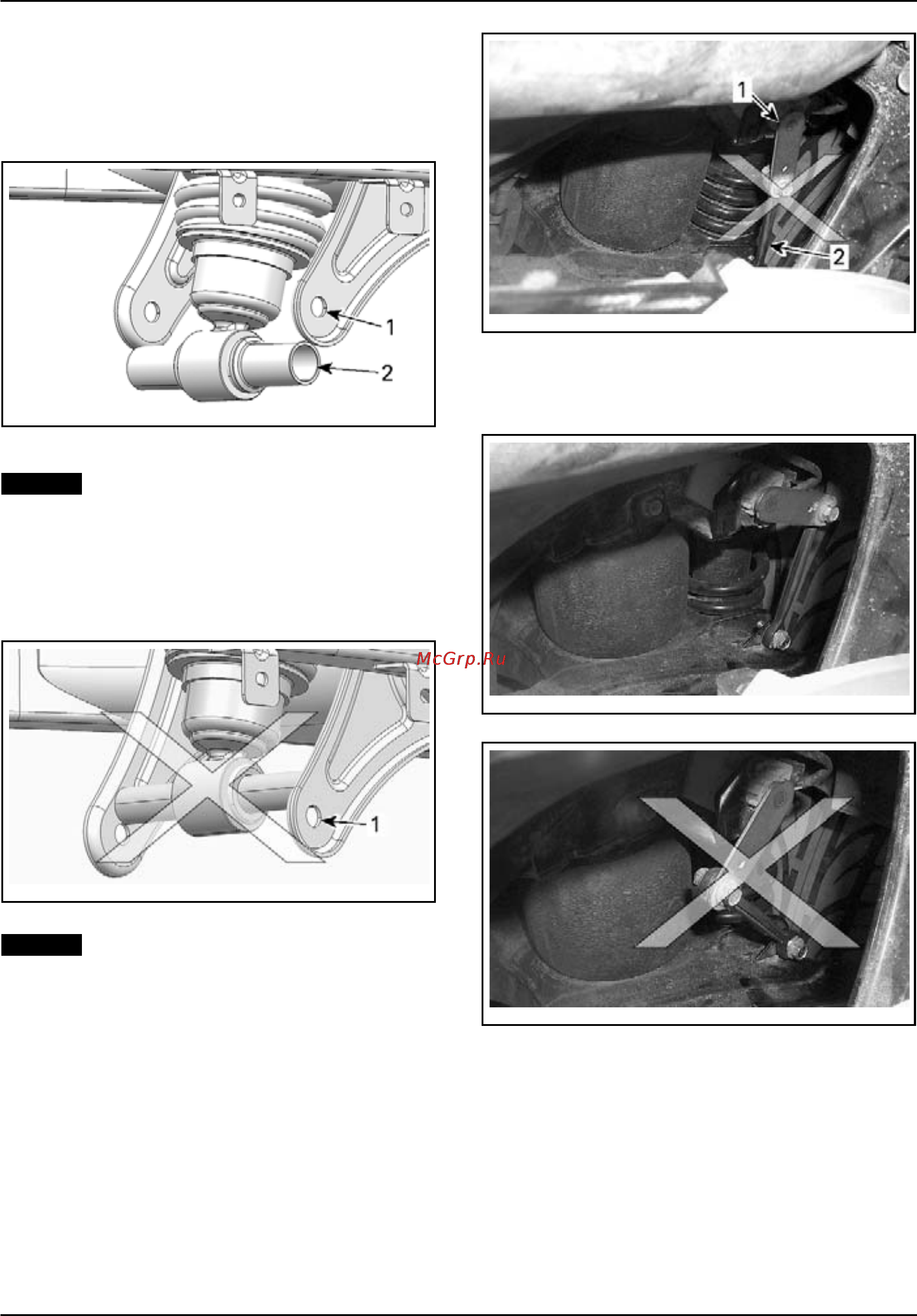

UNCRATING
6. With the help of another person, gently inflate
the ACS spring while your assistant, from the
LH side of the vehicle, monitors the alignment
of the bottom of the shock absorber (anchoring
holes) with the bottom of the lower brackets.
rbs2010-012-010_a
1. Lower bracket hole
2. Anchoring holes
NOTICE
Adding air may create rapid high
changes because of the small air volume
in the ACS spring. The anchoring hole of
shock absorber must NEVER exceed the lower
bracket holes when adding air into ACS spring.
To avoid damaging the ACS system, DO NOT
exceed 551 kPa (80 PSI) into the ACS spring.
rbs2010-012-004_a
1. Lower bracket hole
NOTICE
On RT-S vehicle, exceeding air pres-
sure may damage the ACS suspension sensor
and the ACS spring plate by excessively pull
downward on the ACS suspension sensor, its
lever and its link as illustrated below.
rbs2010-012-011_a
1. ACS position sensor lever
2. Link
7. Ensure that ACS position sensor lever orienta-
tion is correct.
rbs2010-012-001
CORRECT ORIENTATION
rbs2010-012-002_a
INCORRECT ORIENTATIO N
8. Secure shock absorber as follows:
8.1 Using the passenger grab handles, slightly
lift the rear of the vehicle by HAND to align
both bushings on lower bracket hole.
8.2 Install M10 x 140 bolt.
8.3 Install and torque M10 nut to 48 N•m
(35 lbf•ft).
8 / 39 2010-1 PREDELIVERY
