PARTSTOBEINSTALLED
36. Torque upper and lower M6 screws to
4.5 N•m (40 lbf•in).
37. Do not reinstall body panels for the moment,
follow
BATTERY CHARGING AND INSTALLA-
TION
procedure then finalize front cargo mod-
ule as per
FRONT CARGO MODULE (CON-
TINUED)
procedure.
Battery Charging and
Installation
WARNING
Always connect RED positive cable first and
then BLACK negative cable.
CAUTION Neve
r charge or boost battery
while instal
led on vehicle.
NOTICE
Always charge battery before its in-
stallation on the vehicle.
NOTICE
Make sure not to squeeze battery ca-
bles between vehicle components.
NOTE: The ba
ttery is filled and serviced. However
it needs to b
e fully charged prior to vehicle deliv-
ery. To perf
orm charging of the battery you will
need to rem
ove battery from vehicle.
NOTE: Refer to the latest edition of
CAN-AM
ROADSTER BATTERIES SERVICE BULLETIN
for
proper activating, charging and maintenance pro-
cedures.

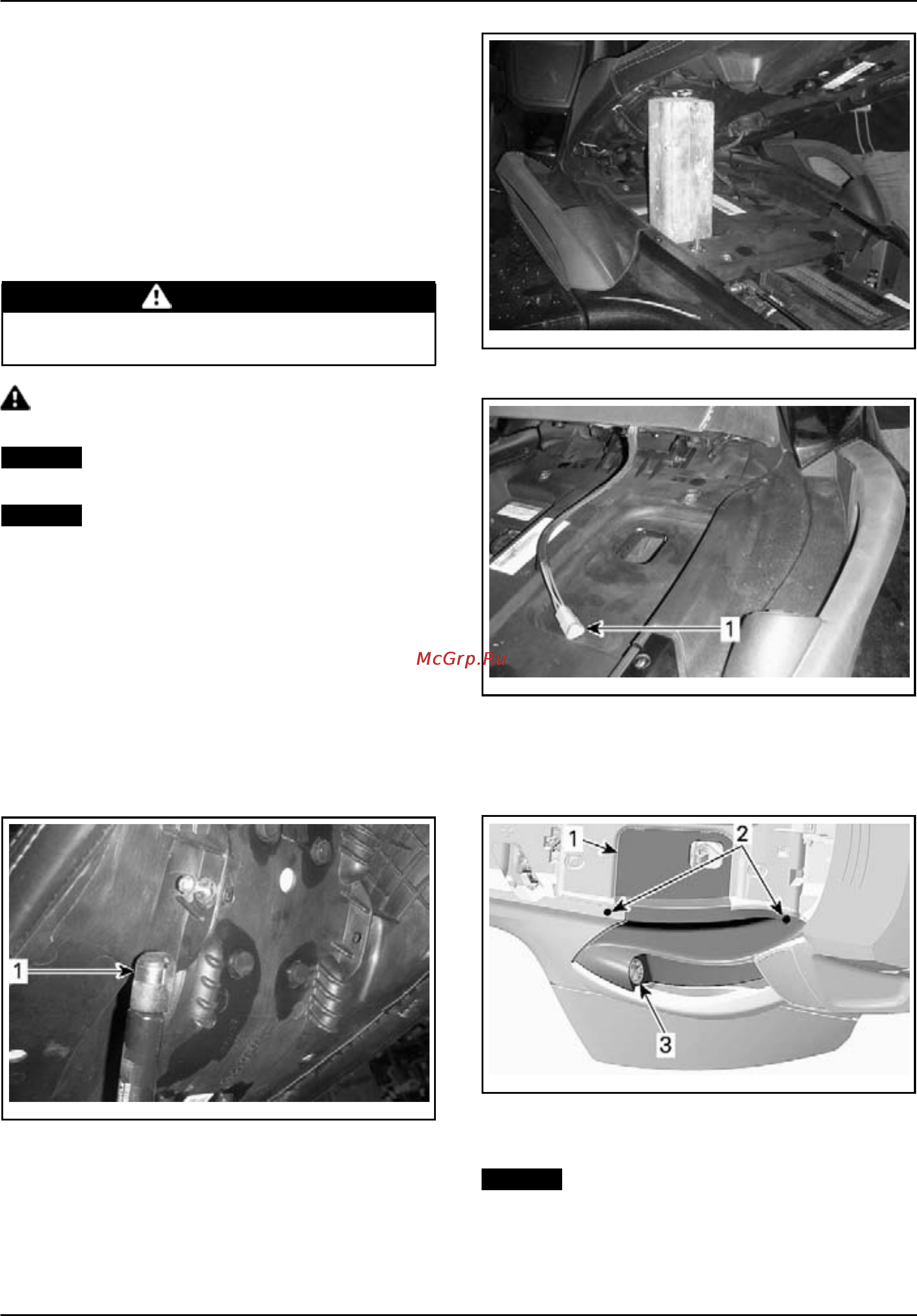

1. Open seat
2. Disconne
ct cylinder from seat base.
rbl2010-002-301_a
1. Cylinder
3. Lift seat and secure it using a piece of wood.
rbl2010-002-302_a
4. Unplug pillion rider (passenger) switch.
rbl2010-002-304_a
1. Pillion rider switch connector
5. Remove
the battery access panel located at the
LH side
of vehicle.
6. Disconnect rear heated grip switch if applicable.
rmr2010-027-003_a
TYPICAL - LH SIDE OF VEHICLE
1. Battery access panel
2. Battery access pane l retaining screws
3. Rear heated grips switch
NOTICE
Discard bag containing battery hard-
ware from underneath battery rubber strap.
This hardware supplied with battery must not
be installed. Use post screws from PDI kit
(longer).
PREDELIVERY 2010-1 15 / 39
