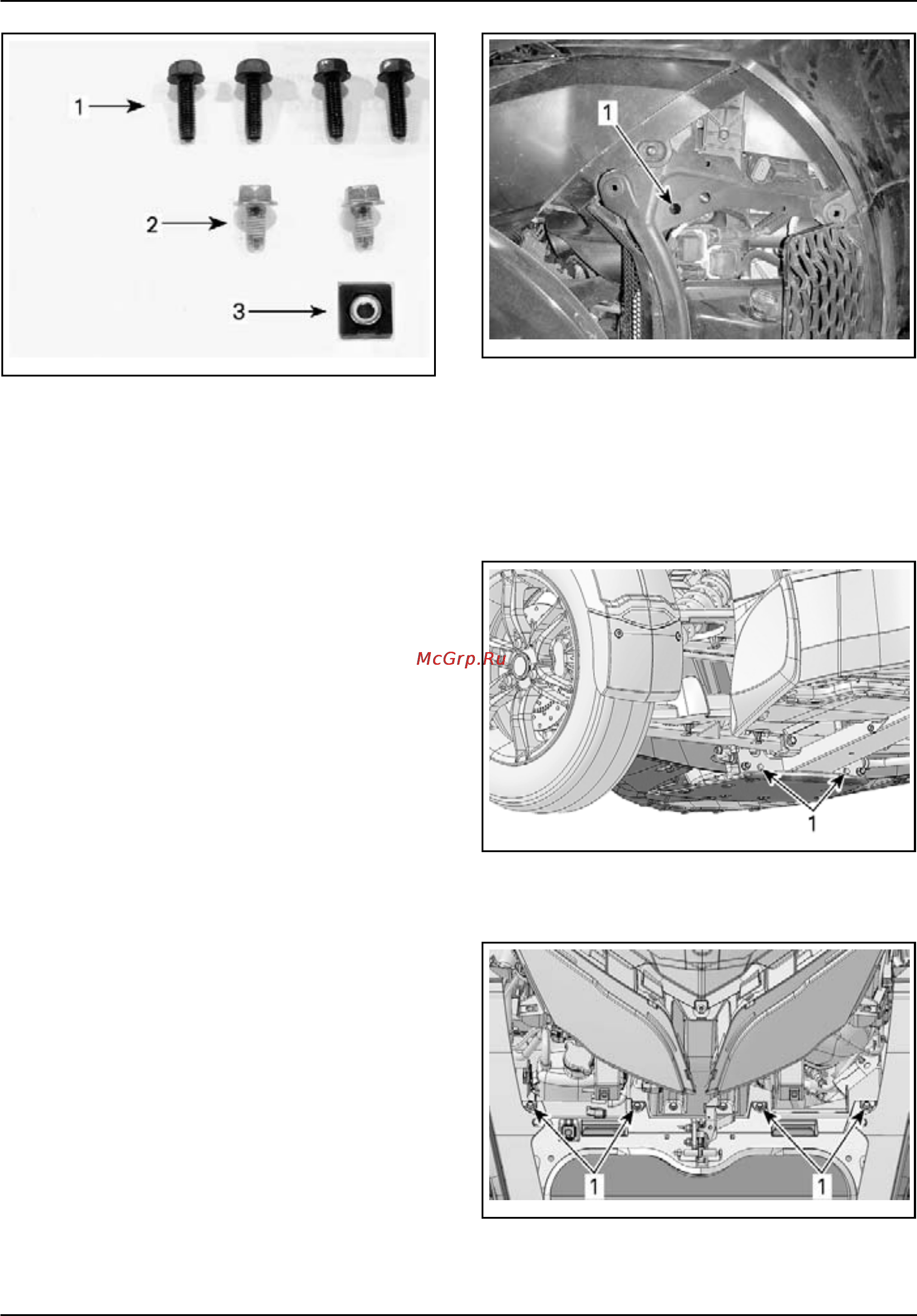

PARTS TO BE INSTALLED
rbl2010-002-100_a
1. Black M6 screws from PDI kit
2. Gold M6 screws from PDI kit
3. M6 caged nut from PDI kit
NOTE: The second caged nut is already installed
on front cargo module.
29. Assisted by another person, position front
cargo module into support slots of vehicle.
30. Connect the following front cargo module con-
nectors and cable:
– A APTS sensor connector
– Horn connector
– R H and LH auxiliary light connector (CE and
Option Package)
– DLC connector (B.U.D.S.) stowed in its re-
ceptacle
– Storage cover actuator connector (option
package)
– Storage cover switch connector (option
package)
– S torage cover cable
– 1 2 V power outlet
– Storage compartment light (option pack-
age).
CE Models
31. Install auxiliary light adjustment cable as fol-
lows:
31.1 Install adjustment cable through hole in
panel.
31.2 Tighten nut securing adjustment cable
(from PDI kit).
rmo2010-001-009_d
LEFT SIDE SHOWN
1. Install through this hole
32. Install caged nut (from PDI kit) on a bottom
hole of storage compartment.
33. Install gold M6 screws to secure bottom of
storage compartment.
34. Do not tighten gold M6 screws for the mo-
ment.
rmr201
0-038-026_a
1. Gold M6 screws
35. Install black M6 screws to secure top of stor-
age compartment.
rmr2010-038-025_a
1. Black M6 screws
14 / 39 2010-1 PREDELIVERY
