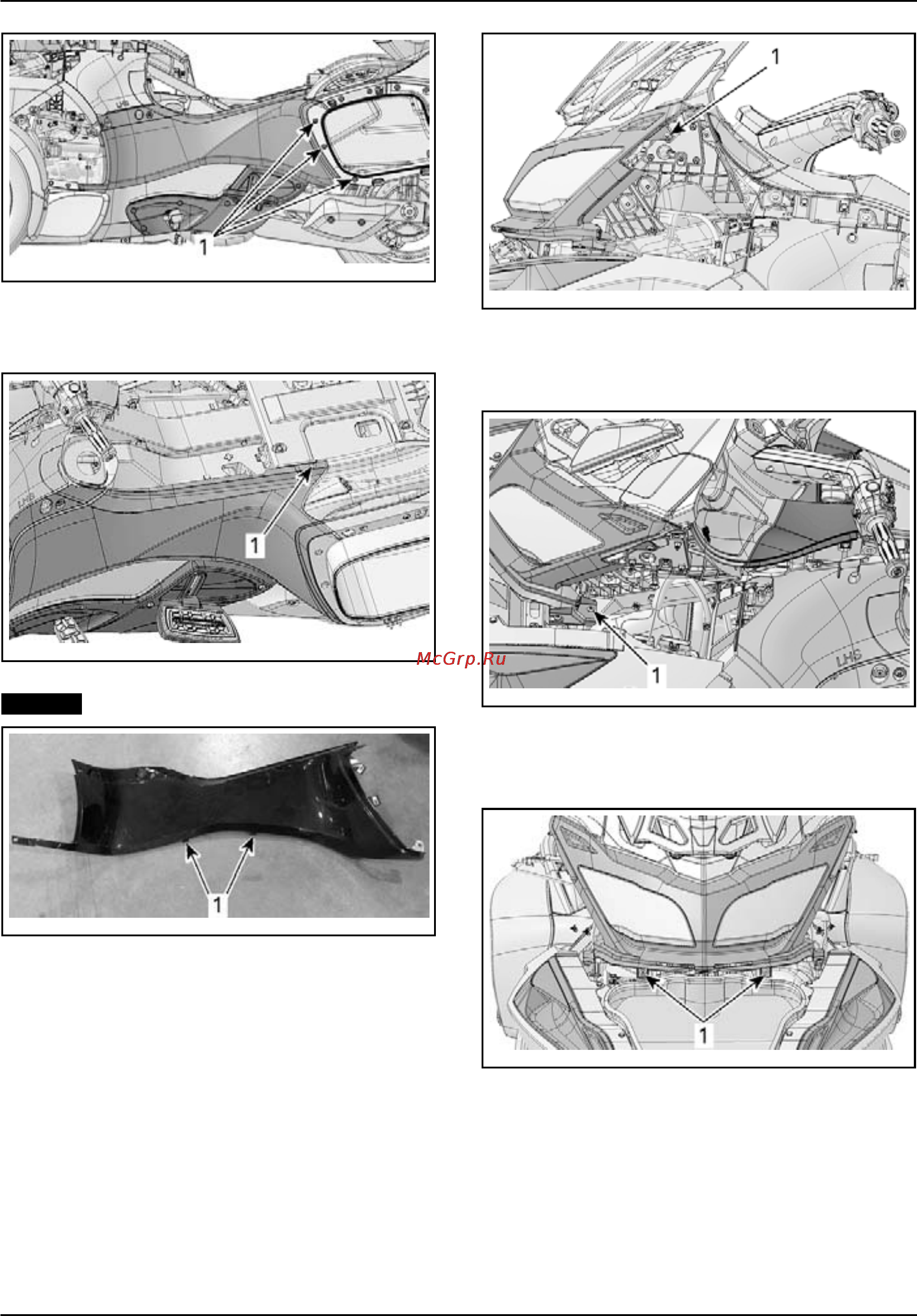

PARTSTOBEINSTALLED
rmr2010-038-012_a
1. Rear retaining screws
22. Remove top retaining screw of LH rear side
panel.
rmr2010-038-013_a
1. Top reta
ining screw
NOTICE
Be careful not to break lower tabs.
rbl2010-002-356_a
LH REAR SIDE PANEL
1. Lower tabs
23. Remove LH rear side panel from vehicle.
24. Remove upper retaining screws from front
fascia.
rmr2010-038-022_a
TYPICAL
1. Upper retaining screw
25. Remove middle retaining screws from front
fascia.
rmr2010-038-023_a
TYPICAL
1. Middle retaining screw
26. Remove lower retaining screws and washers
from front fascia.
rmr2010-038-024_a
TYPICAL
1. Lower retaining screw
27. Remove front fascia from vehicle.
28. Use the following hardware to fix front cargo
module on vehicle.
PREDELIVERY 2010-1 13 / 39
