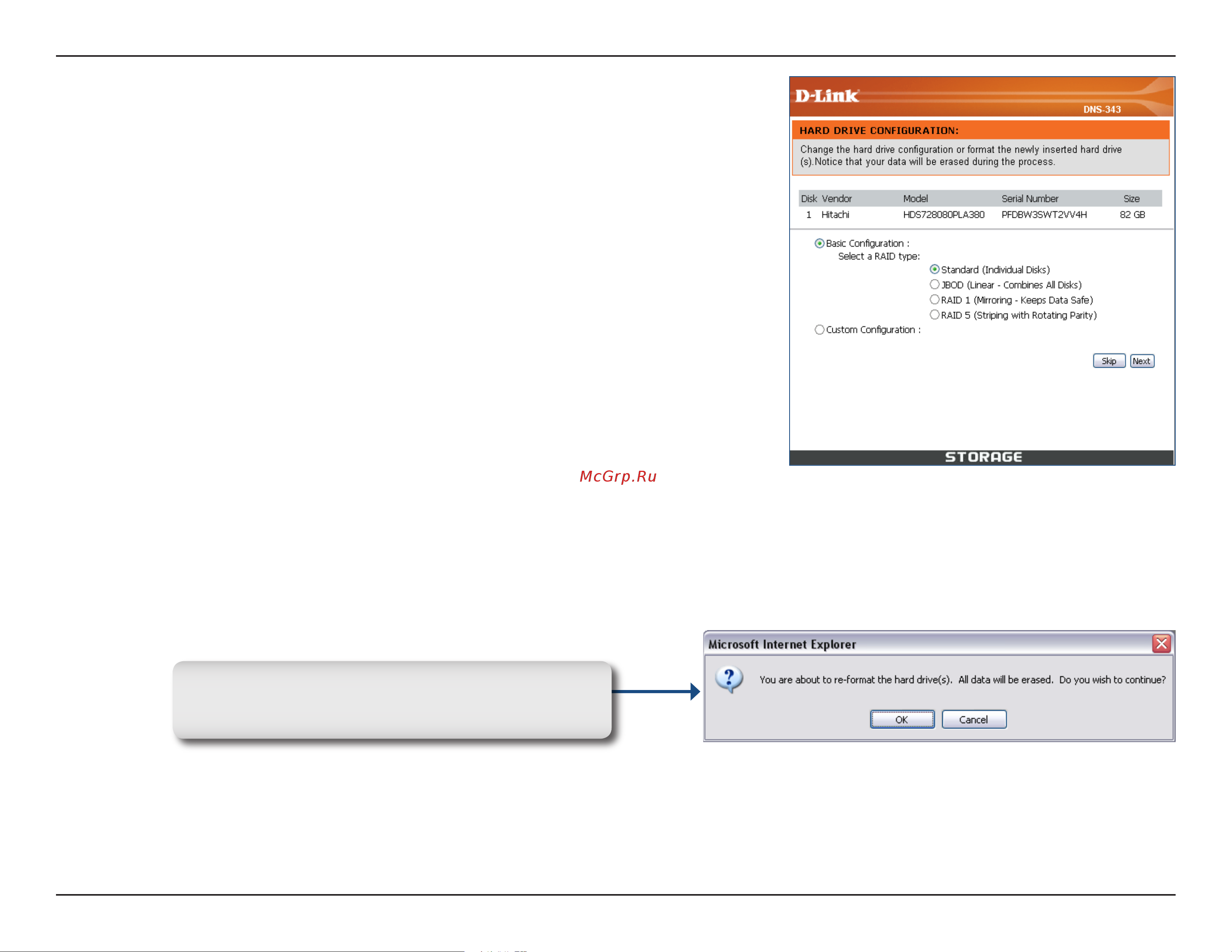

16D-Link DNS-343 User Manual

Section 3 - Conﬁguration

When prompted to conﬁgure the Hard Drive Settings:

Select from one of the basic types of hard drive conﬁgurations

below:

• Standard

• JBOD

• RAID 1

• RAID 5

Or select Custom Conﬁguration and then click Next.

Note: All data will be erased off the hard drives installed in the

DNS-343 during the format process!

A warning message appears informing you that your

drives will be formatted and all data will be erased.

Click OK to continue.
