52D-Link DNS-343 User Manual

Section 3 - Conﬁguration

Disk Utility

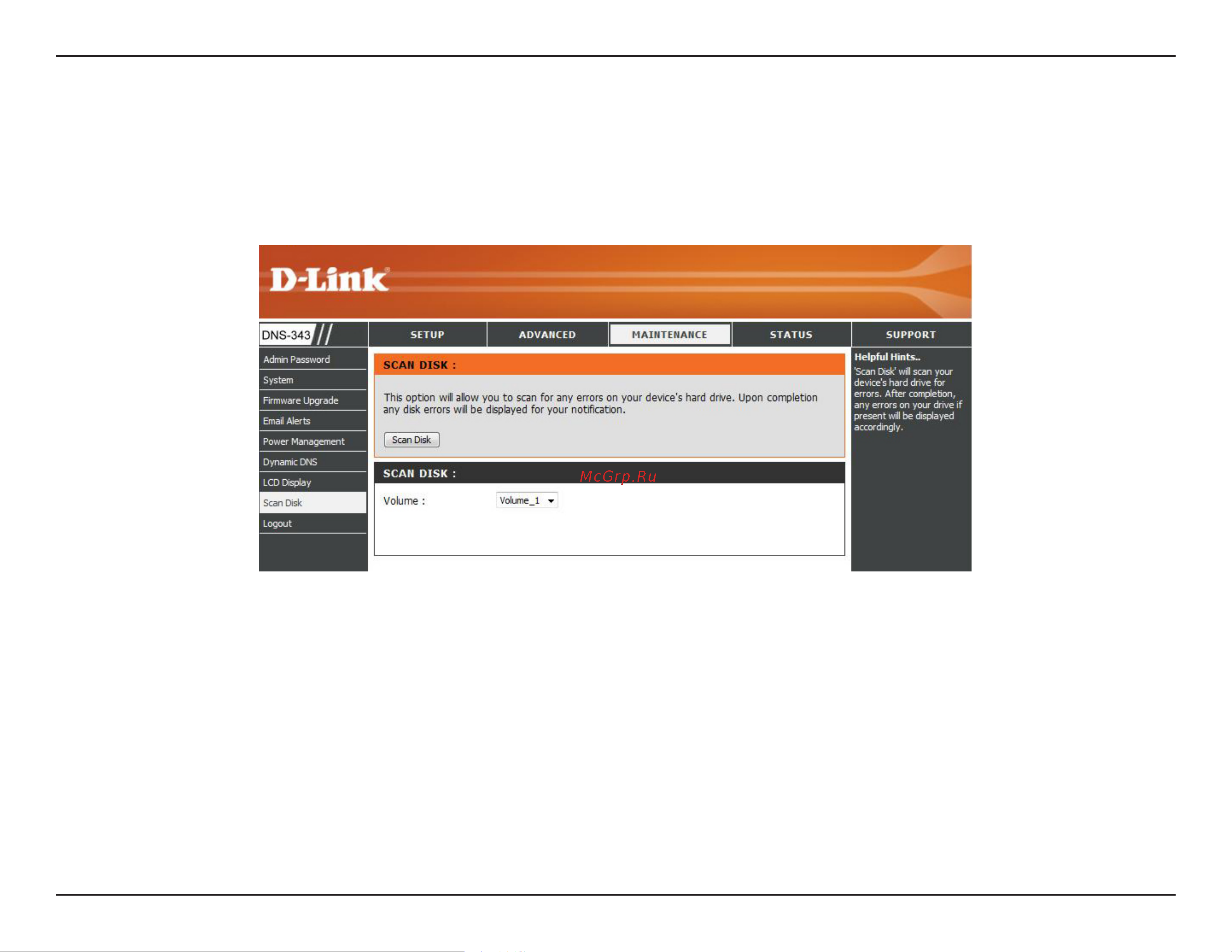

The Disk Utility allows the administrator to perform a standard Scan Disk check for errors on the hard disk, select the

volume from the drop-down menu and then click the Scan Disk button. Any errors found will be listed along with a

description and the available repair options.
