22D-Link DNS-343 User Manual
Section 3 - Configuration

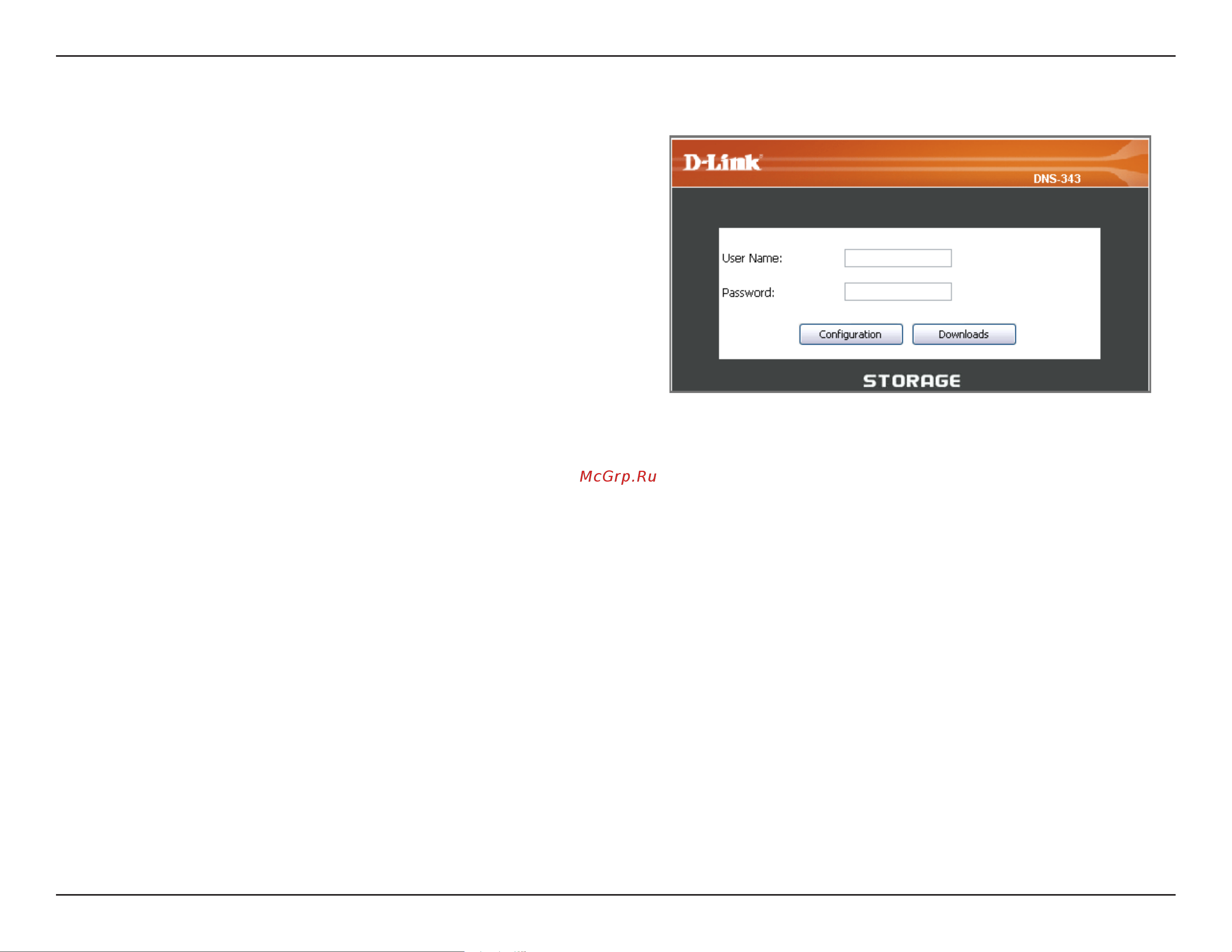

When the login prompt appears, login using the new administrator
password. Then click Configuration to access the configuration
page of your DNS-343.
