66D-Link DNS-343 User Manual

Section 3 - Conﬁguration

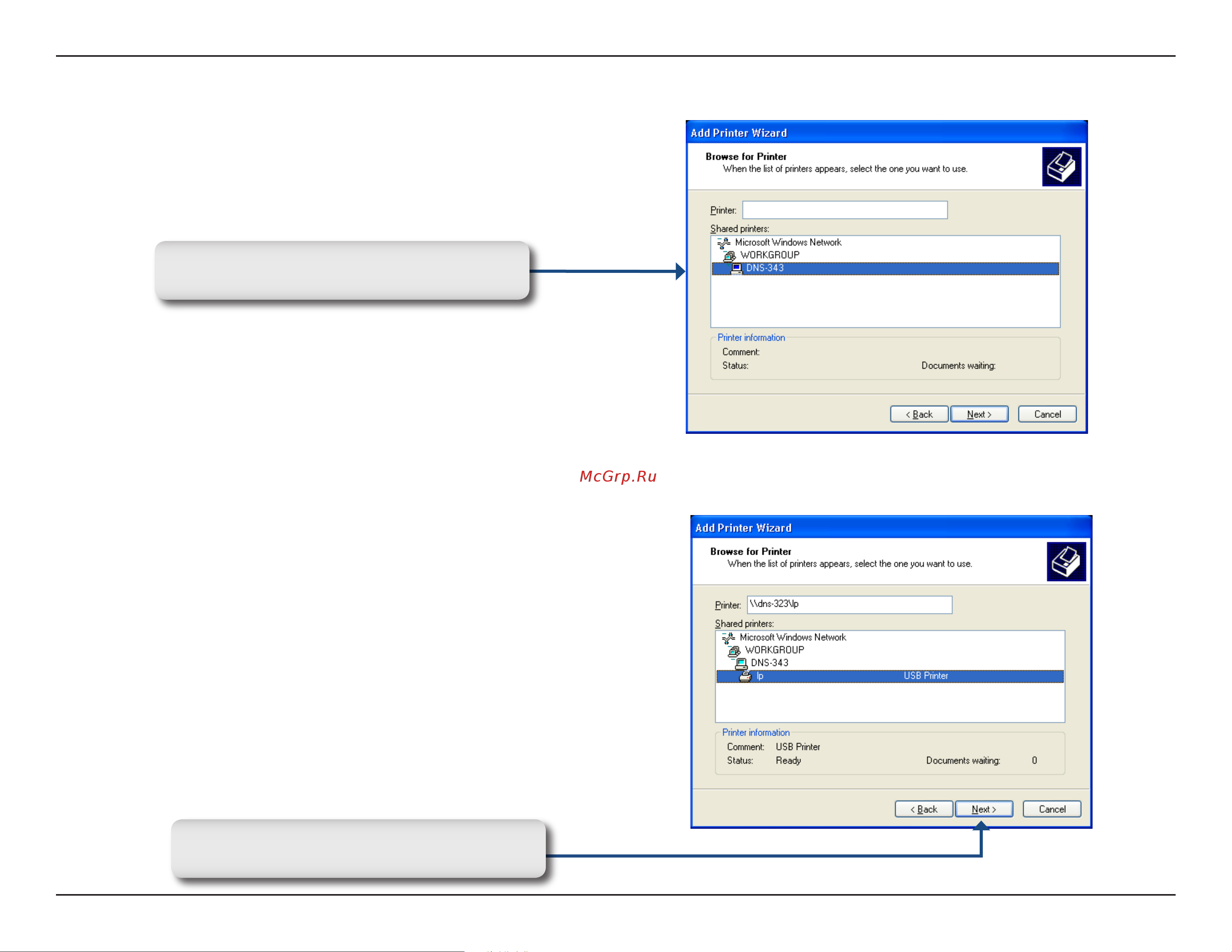

Double-click “DNS-343” from the Shared

Printers list to expand the tree.

Select the available USB printer, and click

Next to continue.
