─ 13 ─

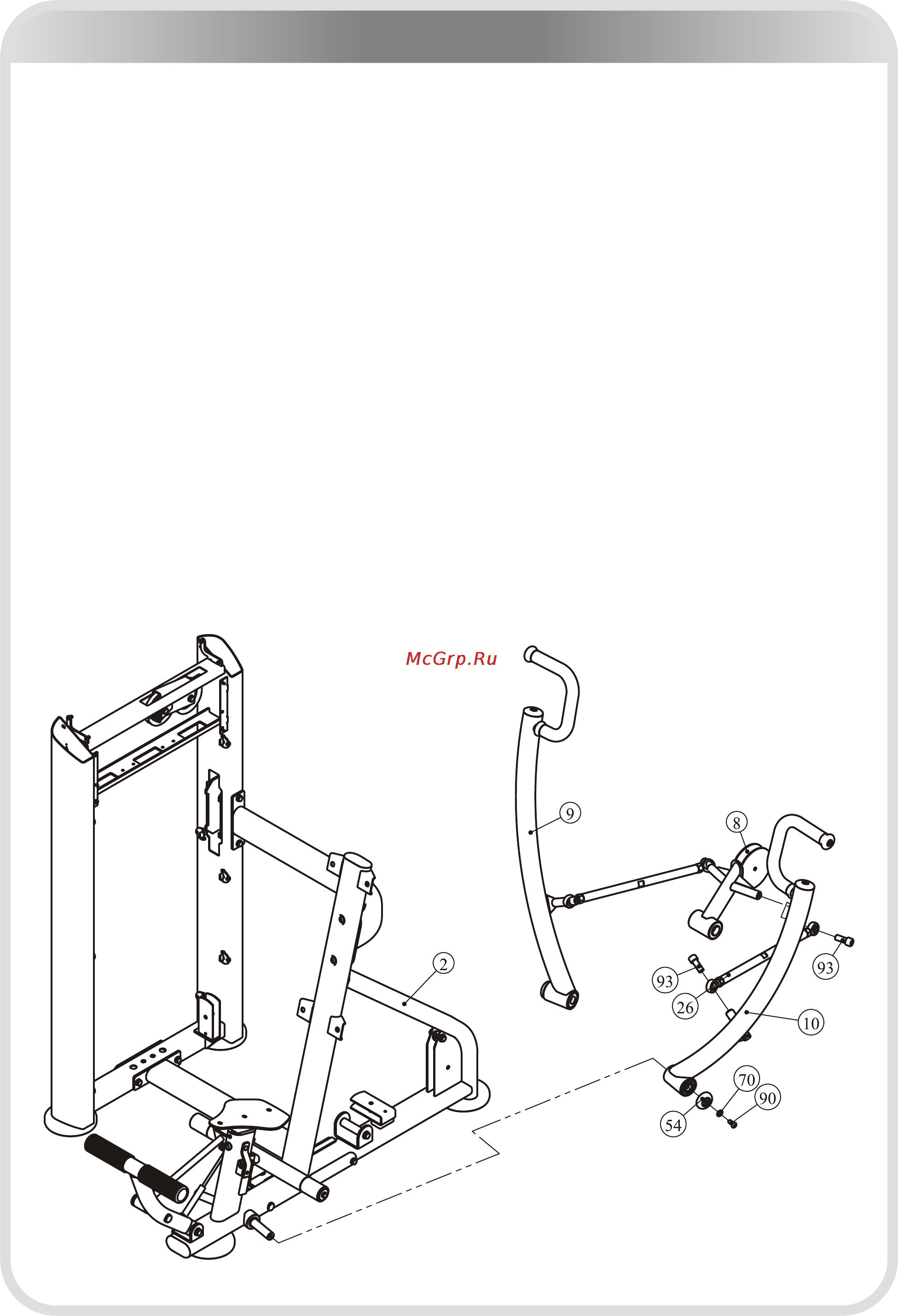

Assembly
1. Attach the Right Press Arm (#9) to the Main Frame (#2) using:
● one M10*25 BHCS (#90)
● one Φ11*Φ20*2 Flat Washer (#70)
● one Φ55*13 Big Washer (#54)
● one Φ35*Φ25.4*2 Brass Washer (#42)
2. Attach the Left Press Arm (#10) to the Main Frame (#2) using:
● one M10*25 BHCS (#90)
● one Φ11*Φ20*2 Flat Washer (#70)
● one Φ55*13 Big Washer (#54)
● one Φ35*Φ25.4*2 Brass Washer (#42)
3. Attach two Rod (#26) to the Sway Pulley Bracket (#8) using:
● two M16*40 SHCS (#93)
4. Attach two Rod (#26) to the Right Press Arm (#9) & Right Press Arm (#10) using:
● two M16*40 SHCS (#93)
Note: Wrench Tighten bolts and Nylon Lock nuts.
STEP 3
