Assembly

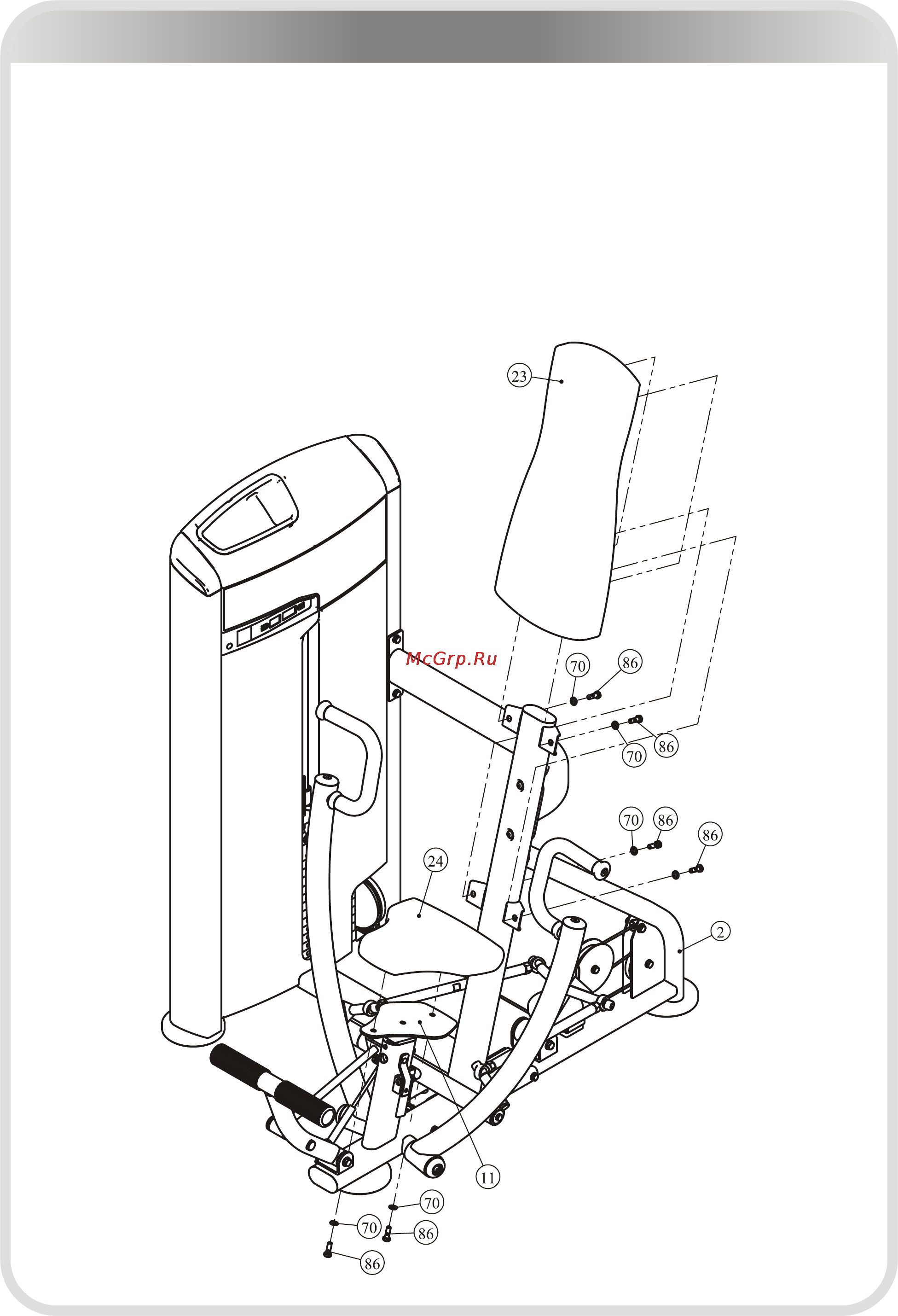

1. Attach the Seat Pad (#24) to the Seat Pad Support (#11) using:
● two M10*30 HHB (#86)
● two Φ11*Φ20*2 Flat Washer (#70)
2. Attach the Back Pad (#23) to the Main Frame (#2) using:
● four M10*30 HHB (#86)
● four Φ11*Φ20*2 Flat Washer (#70)
Note: Wrench Tighten bolts and Nylon Lock nuts.
STEP 7
