─ 17 ─

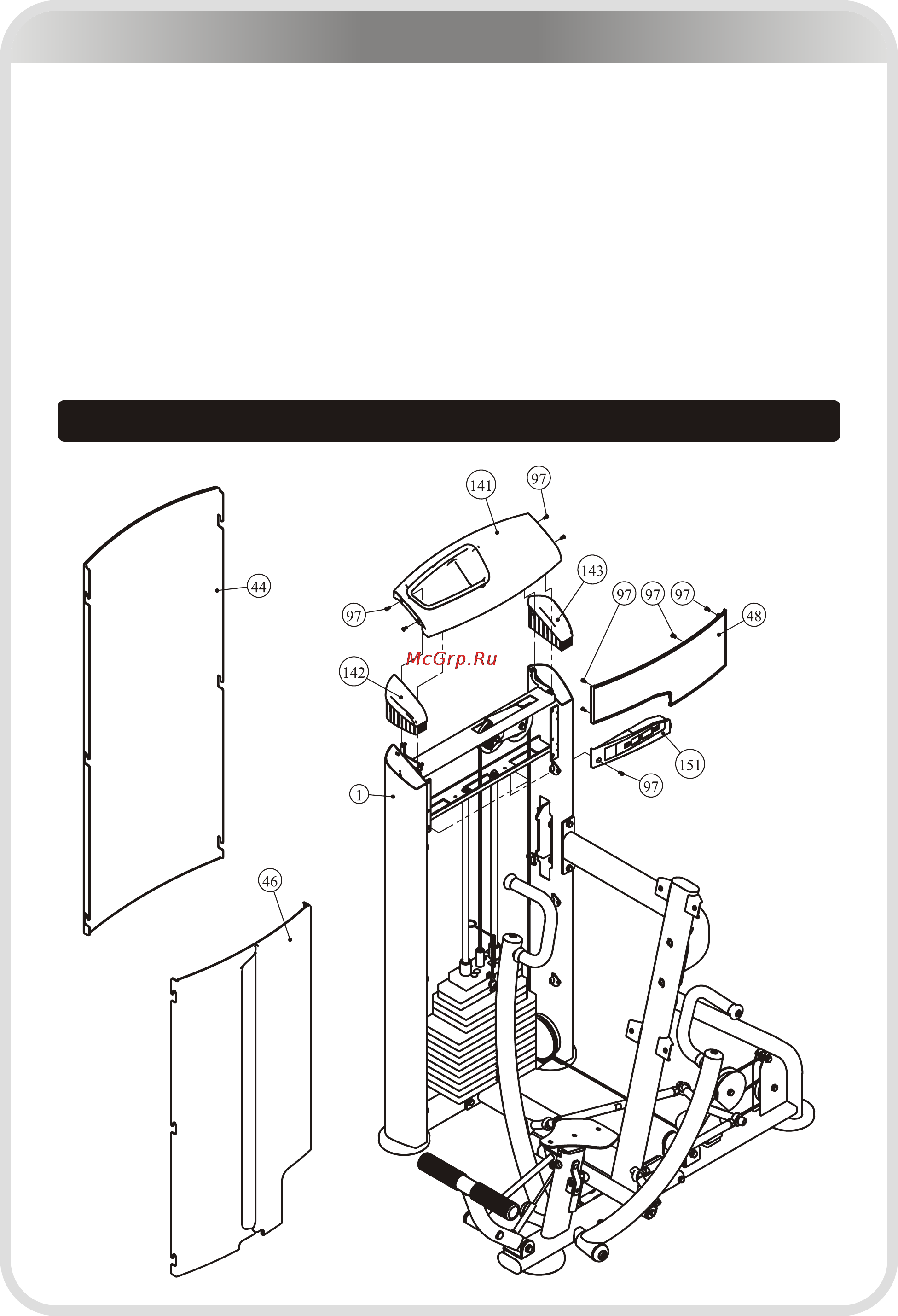

Assembly

1. Attach one Front Shroud (#46) to the Weight Stack Frame(#1).

2. Attach one Rear Shroud (#44) to the Weight Stack Frame(#1).

3. Attach the Top Front Shroud (#48) and the Console PCB (#151) to the Weight

Stack Frame (#1) using:

● five M5*12 Screws (#97)

4. Attach the Top Cover (#141) to the Weight Stack Frame (#1) using:

● four M5*12 Screws (#97)

5. Attach the Left Plug (#142) and Right Plug (#143) to the Weight Stack Frame (#1).

Note: Wrench Tighten bolts and Nylon Lock nuts.

STEP 6

Here is the assembly instruction for Console PCB !
