─ 10 ─

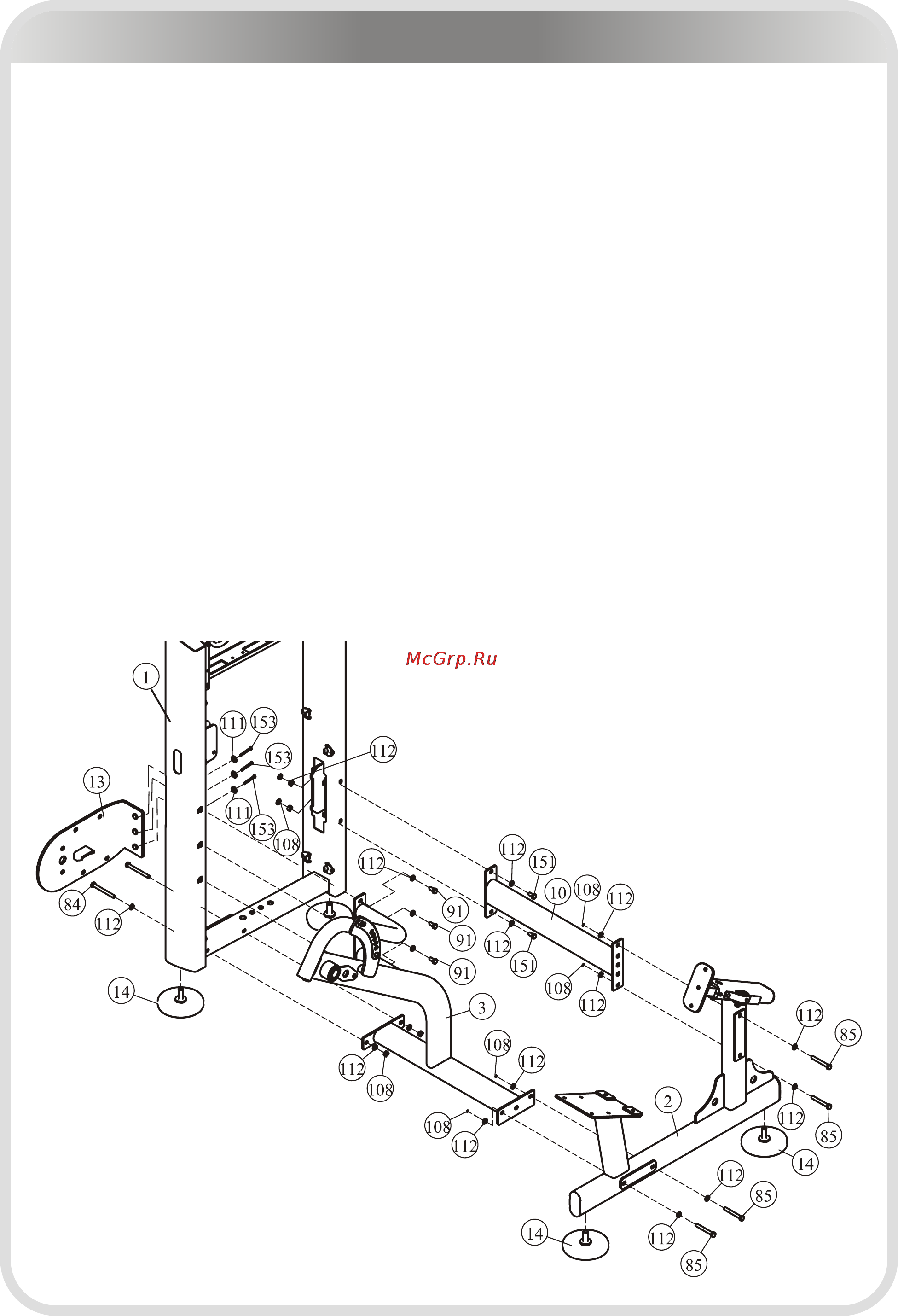

Assembly

1. Attach two Adjustable Foot Plate (#14) to the Main Frame (#2).

2. Attach the Main Bracket (#13) to the Weight Stack Frame (#1) using:

● three Φ13*Φ24*1.5 Flat Washer (#111) ● three M12*65 HHB (#153)

3. Attach the Bottom Cross Brace (#3) to the Weight Stack Frame (#1) using:

● two M10*100 HHB (#84) ● three M10*25 HHB (#91)

● seven Φ11*Φ20*2 Flat Washer (#112) ● two M10 Nylon Lock Nut (#108)

4. Attach the Bottom Cross Brace (#3) to the Main Frame (#2) using:

● two M10*80 HHB (#85) ● four Φ11*Φ20*2 Flat Washer (#112)

● two M10 Nylon Lock Nut (#108)

5. Attach the Rear Cross Brace (#10) to the Weight Stack Frame (#1) using:

● two M10*75 HHB (#151) ● four Φ11*Φ20*2 Flat Washer (#112)

● two M10 Nylon Lock Nut (#108)

6. Attach the Rear Cross Brace (#10) to the Main Frame (#2) using:

● two M10*80 HHB (#85) ● four Φ11*Φ20*2 Flat Washer (#112)

● two M10 Nylon Lock Nut (#108)

7. Attach two Adjustable Foot Plate (#14) to the Weight Stack Frame (#1).

Note: Hand tighten bolts and Nylon Lock nuts.

STEP 1
