─ 15 ─

Assembly

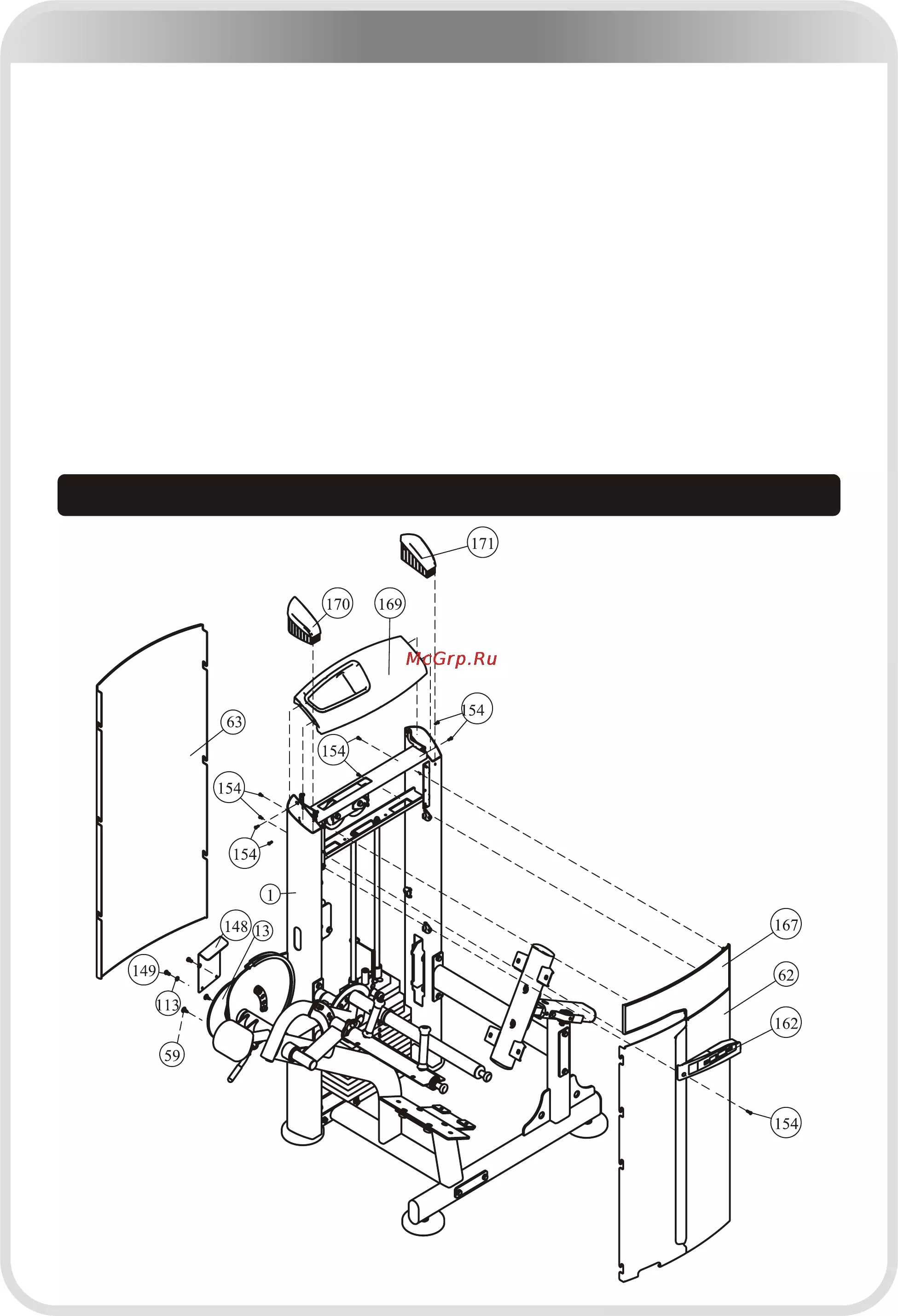

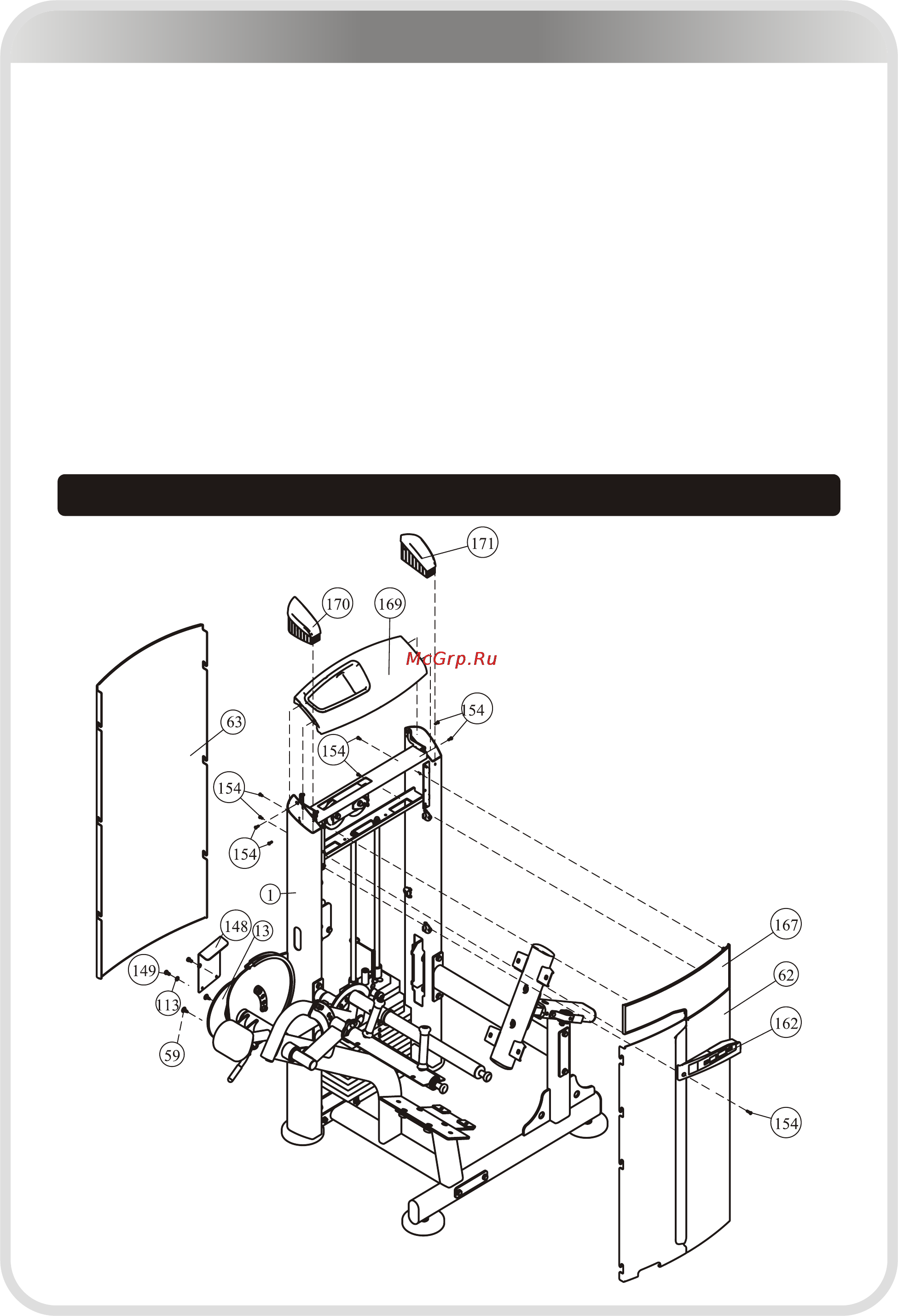

1. Attach one Front Shroud (#62) to the Weight Stack Frame (#1).

2. Attach one Rear Shroud (#63) to the Weight Stack Frame (#1).

3. Attach the Top Front Shroud (#167) and Console PCB (#162) to the Weight Stack

Frame (#1) using:

● five M5*12 Screws (#154)

4. Attach the Top Cover (#169) to the Weight Stack Frame (#1) using:

● four M5*12 Screws (#154)

5. Attach the Left Plug (#170) and Right Plug (#171) to the Weight Stack Frame (#1).

6. Attach one Baffle Plate (#148) to the Main Bracket (#13) using:

● two M8*15 HHB (#149) ● two Φ9*Φ16*1.6 Flat Washer (#113)

7. Attach two Button (#59) to the Main Bracket (#13).

Note: Wrench Tighten bolts and Nylon Lock nuts.

STEP 6

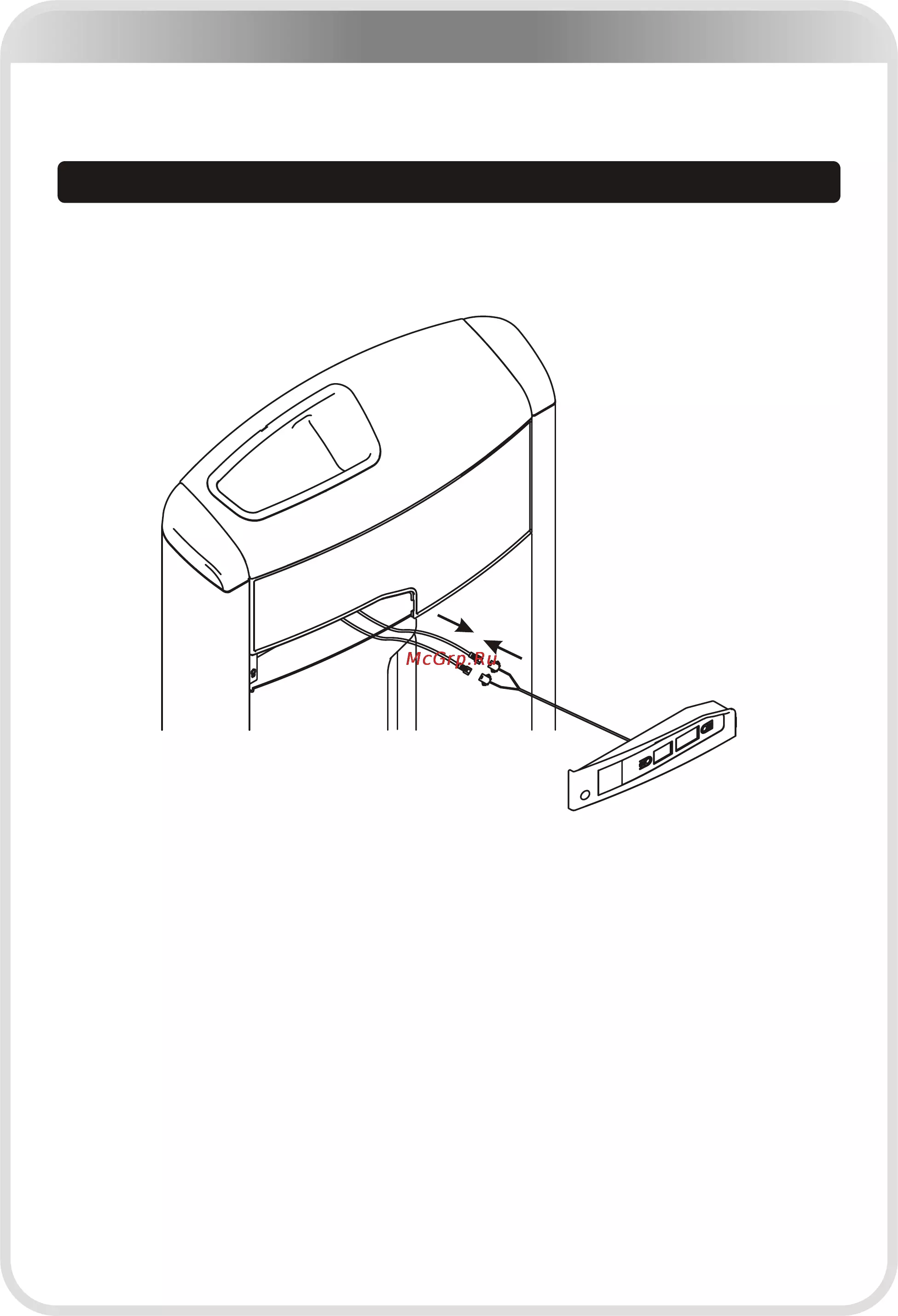

Here is the assembly instruction for Console PCB !
