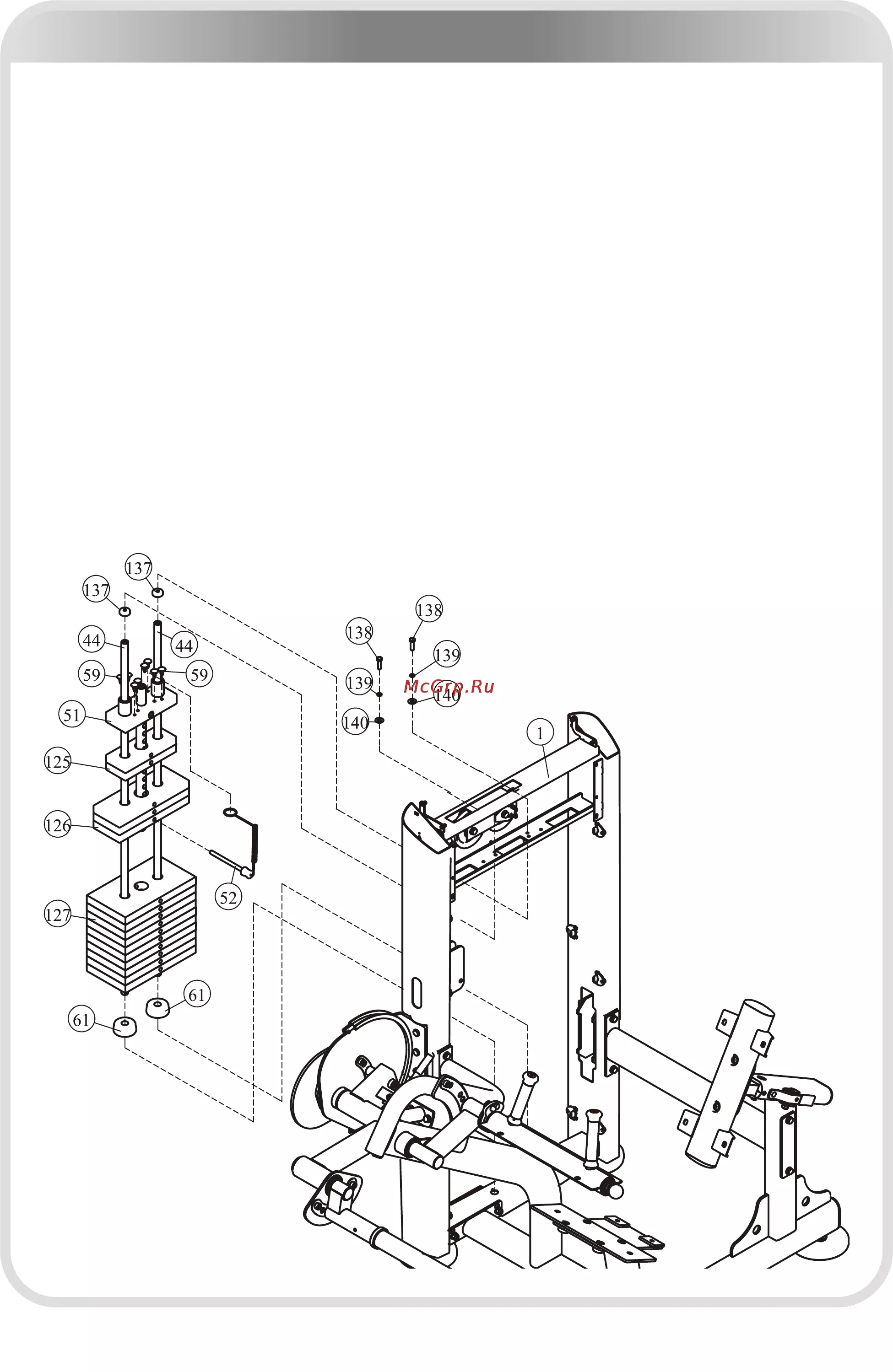

Assembly

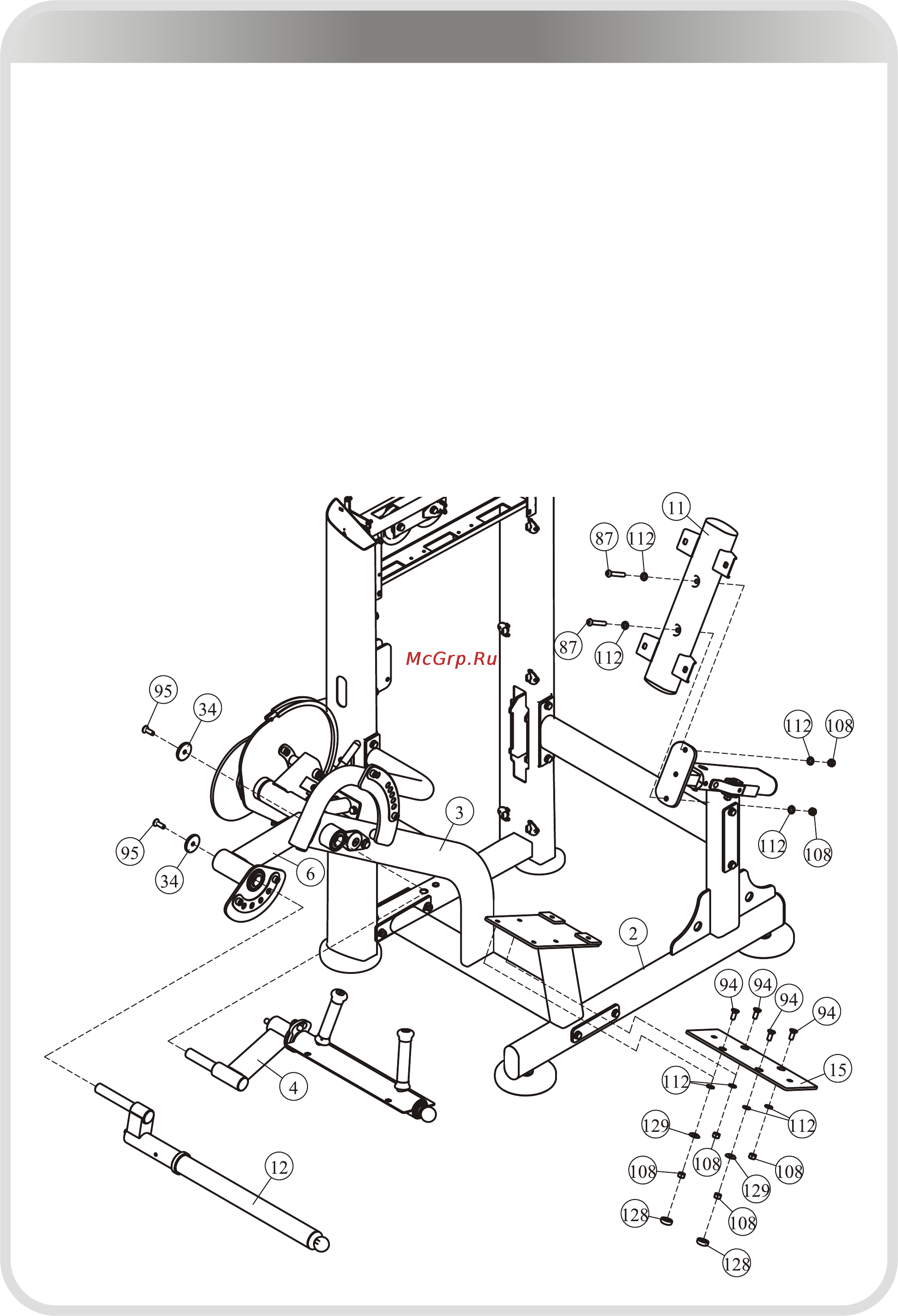

STEP 3

1. Attach the Seat Pad Plate (#15) to the Main Frame (#2) using:

● four M10*25 FHCS (#94) ● four Φ11*Φ20*2 Flat Washer (#112)

● four M10 Nylon Lock Nut (#108)

●

two Φ27.6*Φ12.8*3.5 Washer (#129)

● two Φ30 Plastic Cap (#128)

2. Attach the Back Pad Support (#11) to the Main Frame (#2) using:

● two M10*65 BHCS (#87) ● four Φ11*Φ20*2 Flat Washer (#112)

● two M10 Nylon Lock Nut (#108)

3. Attach the Movement Arm (#4) to the Bottom Cross Brace (#3) using:

● one Aluminum End Cap (#34) ● one M10*30 FHCS (#95)

4. Attach the Swing Tube (#12) to the Pivot Arm (#6) using:

● one Aluminum End Cap (#34) ● one M10*30 FHCS (#95)

Note: Wrench Tighten bolts and Nylon Lock nuts.
