─ 13 ─

Assembly

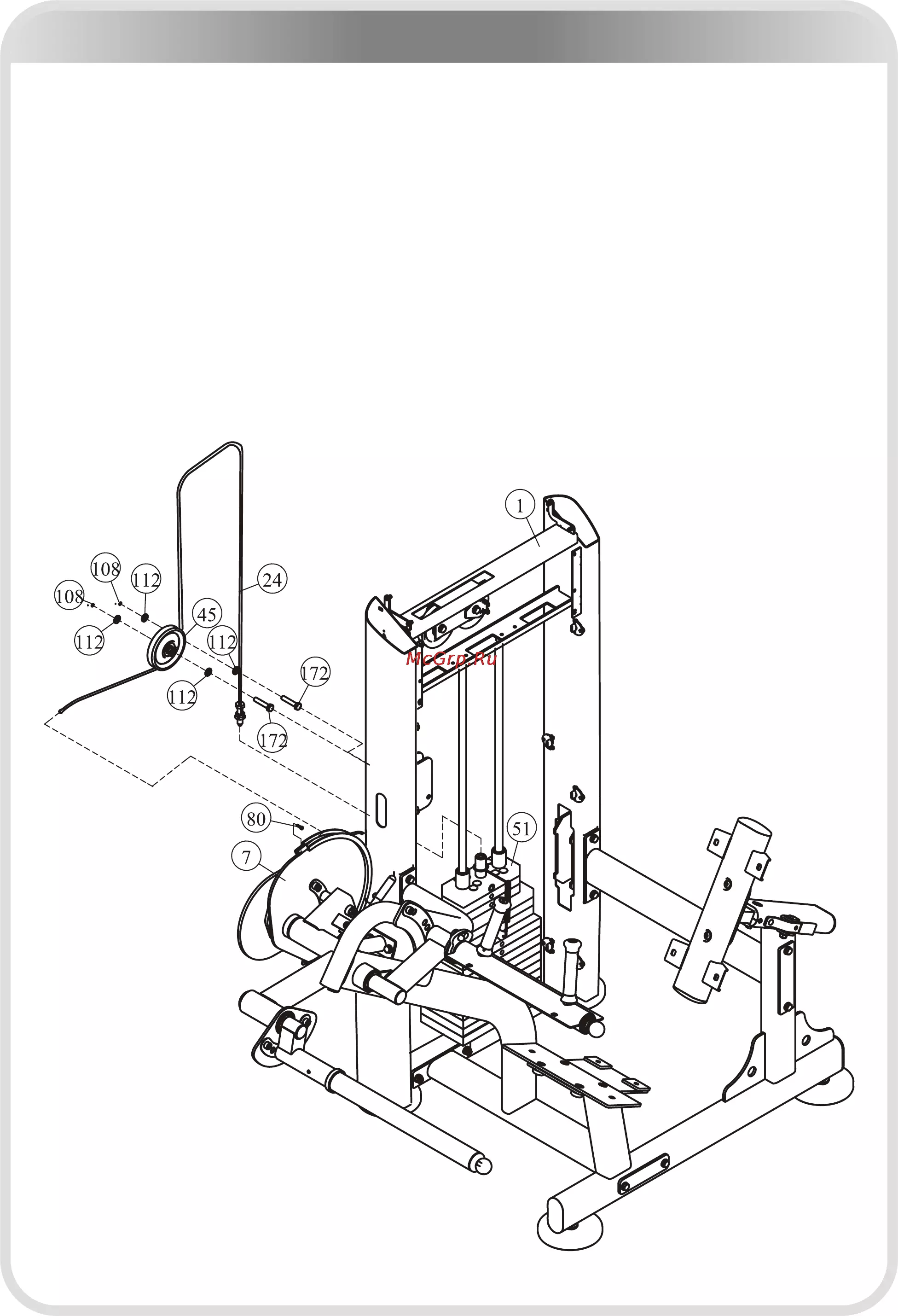

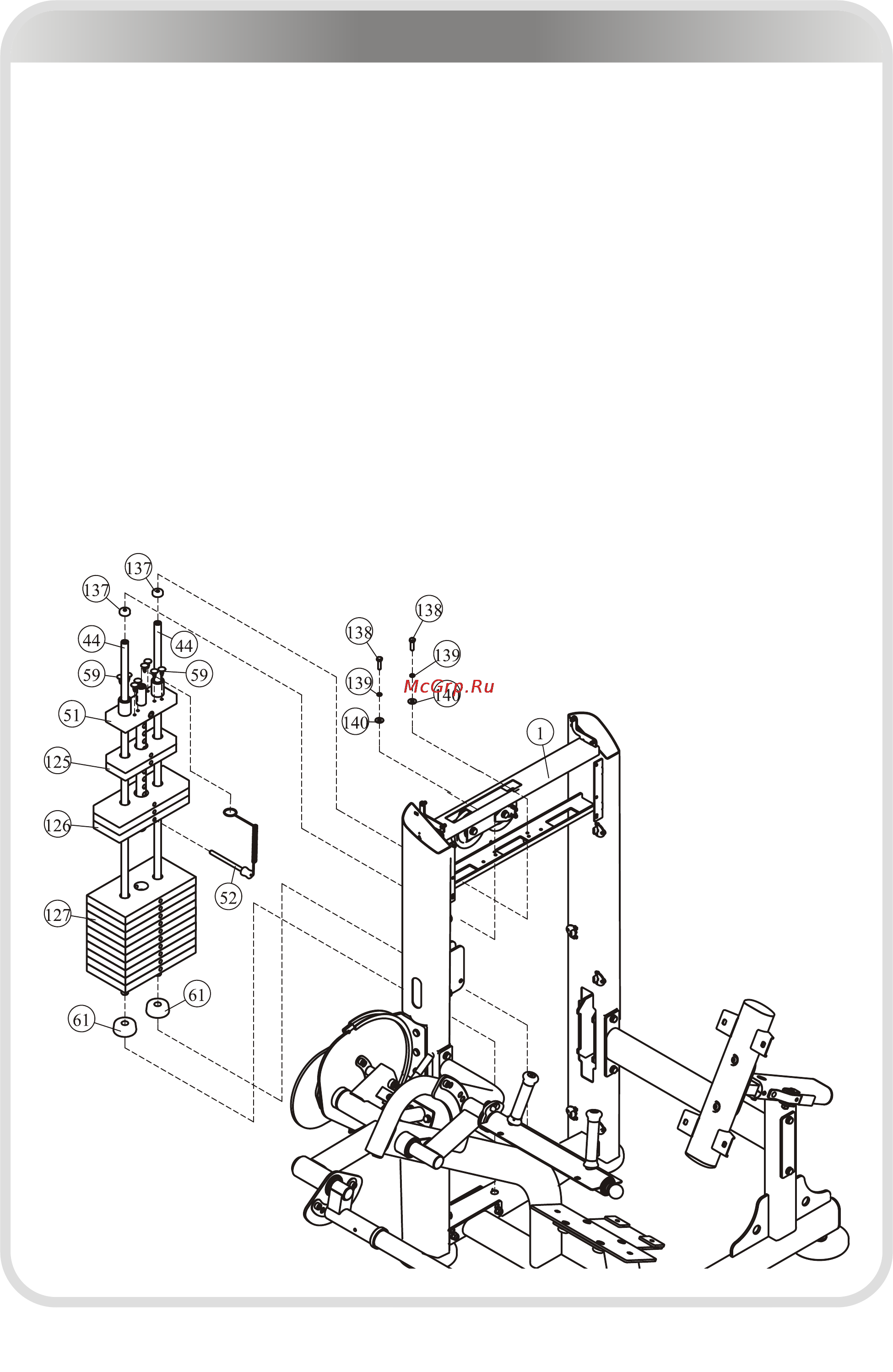

STEP 4

1. Attach:

● two Guide Rod (#44)

● two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#61)

● ten Weight Plate 15LBS (#127)

● three Weight Plate 10LBS (#126)

● two Weight Plate 5LBS (#125)

● one Top Plate (#51)

to the Weight Stack Frame (#1) using:

● two M8*30 HHB (#138)

● two Φ8 Spring Washers (#139)

● two Φ9*Φ22*1.6 Flat Washer (#140)

● two Φ29*Φ19*10 Rubber Plug (#137)

2. Attach the Selector Pin W/Coil (#52) & eight Button (#59) to the Top Plate (#51).

Note: Wrench Tighten bolts and Nylon Lock nuts.
