─ 14 ─

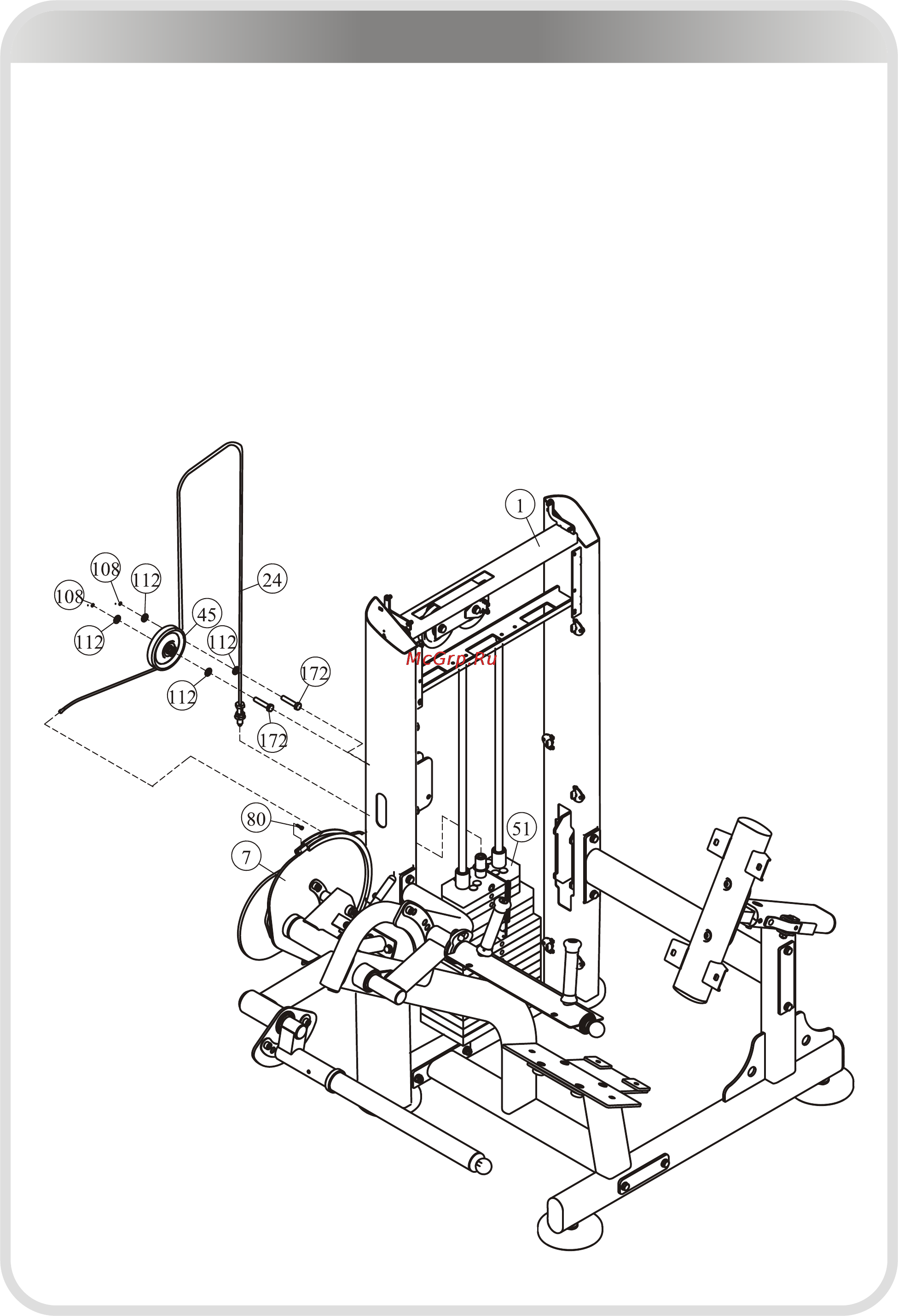

Assembly
STEP 5
1. Attach the Cable (#24) to the Top Plate (#51).
2. Attach one 4.5" Pulley (#45) to the Weight Stack Frame (#1) using:
● four M10*55 HHB (#172)
● four Φ11*Φ20*2 Flat Washer (#112)
● two M10 Nylon Lock Nut (#108)
3. Attach the Cable (#24) to the Cam (#7) using:
● one M4*15 SHCS (#80)
Note: Wrench Tighten bolts and Nylon Lock nuts.
