─ 10 ─

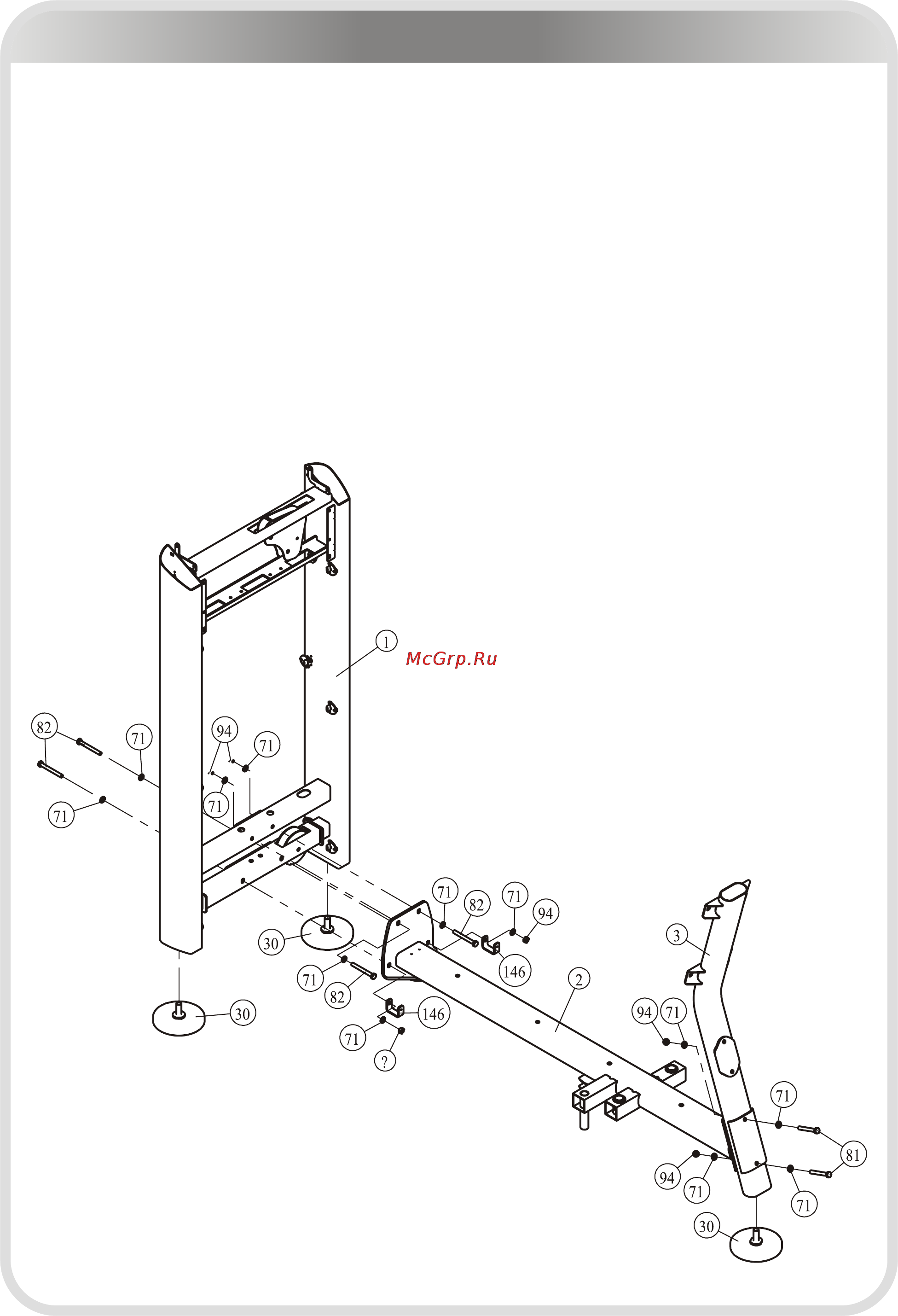

Assembly

1. Attach three Adjustable Foot Plate (#30) to the Weight Stack Frame (#1) and Rear

Frame (#3).

2. Attach the Bottom Cross Brace (#2) to the Weight Stack Frame (#1) and the Rear

Frame (#3) using:

● two U Plate (#146)

● two M10*80 HHB (#81)

● twelve Φ11*Φ20*2 Flat Washers (#71)

● six M10 Nylon Lock Nuts (#94)

Note: Hand tighten Bolts and Nylon Lock nuts.

● four M10*90 HHB (#82)

STEP 1
