Assembly

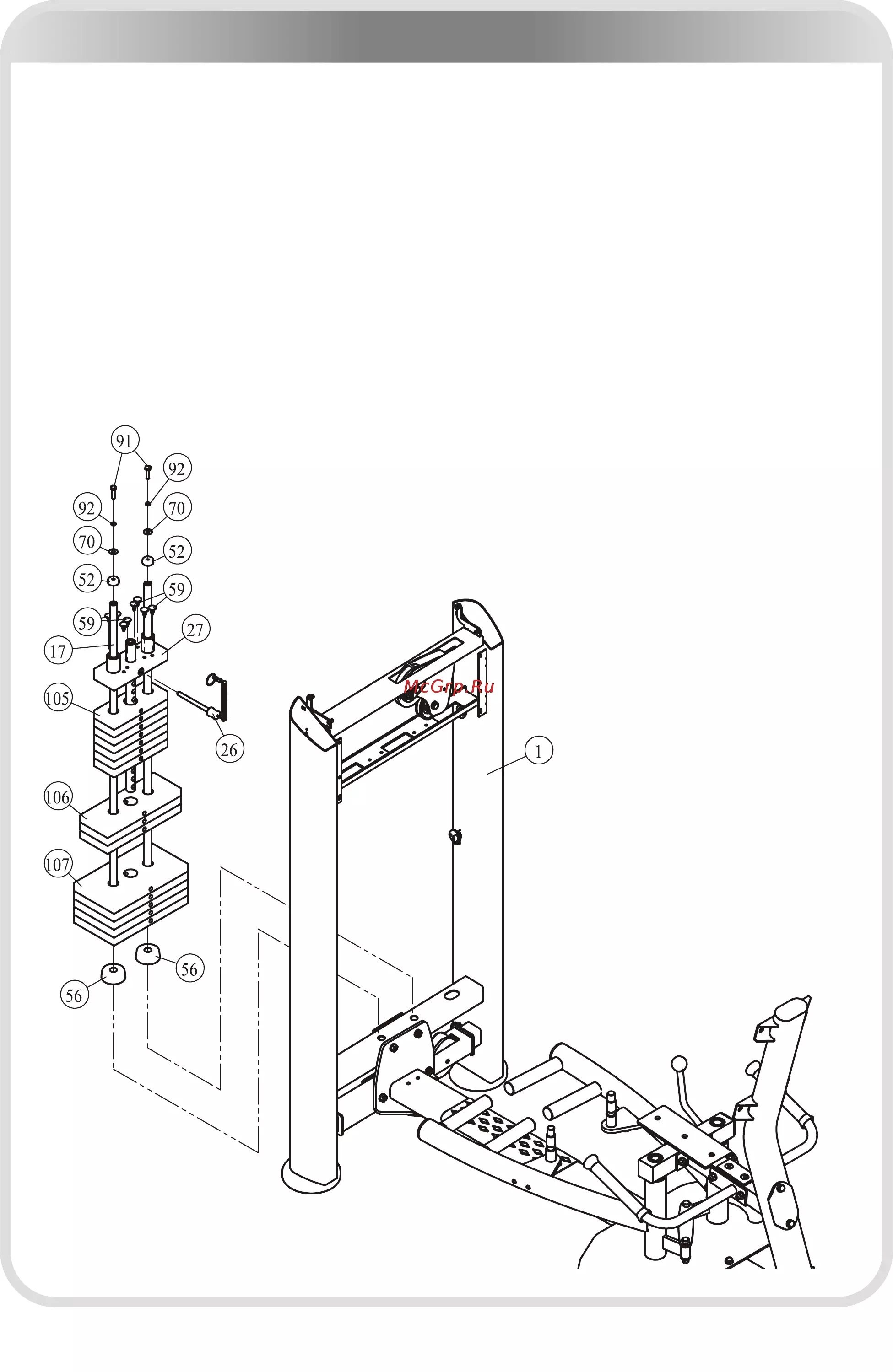

STEP 4

1. Attach:

● two Guide Rod (#17)

●

two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#56)

● five Weight Plate 15LBS (#107) ● three Weight Plate 10LBS (#106)

● seven Weight Plate 5LBS (#105) ● one Top Plate (#27)

to the Weight Stack Frame (#1) using:

● two M8*30 HHB (#91) ● two Φ8 Spring Washers (#92)

two Φ9*Φ22*1.6 Flat Washers (#70)

●

● two Φ29*Φ19*10 Rubber Plugs (#52)

2. Attach the Selector Pin W/Coil (#26) to the Top Plate (#27).

3. Attach eight Buttons (#59) to the Top Plate (#27).

Note: Wrench Tighten Bolts and Nylon Lock nuts.

─ 14 ─
