Assembly

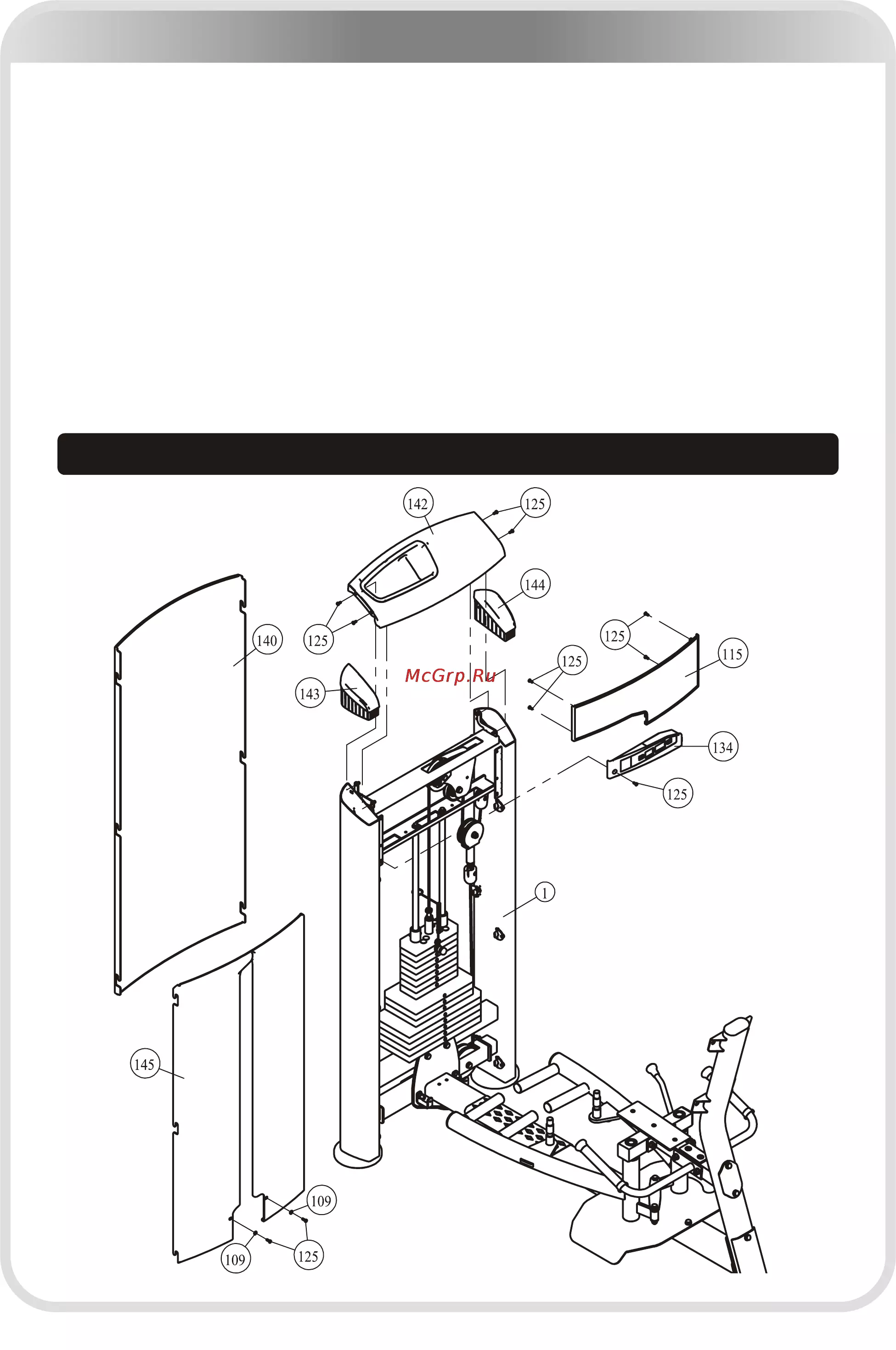

1. Attach one Rear Shroud (#140) to the Weight Stack Frame (#1).

2. Attach one Front Shroud (#145) to the Weight Stack Frame (#1) using:

two 5.5* 12*1 Flat Washer (#109) two M5*12 Screw (#125)

3. Attach the Top Front Shroud (#115) and the Console PCB (#134) to the Weight

Stack Frame (#1) using:

● five M5*12 Screws (#125)

4. Attach the Top Cover (#142) to the Weight Stack Frame (#1) using:

● four M5*12 Screws (#125)

5. Attach the Left Plug (#143) and Right Plug (#144) to the Weight Stack Frame (#1).

Note: Wrench Tighten bolts and Nylon Lock nuts.

● Φ Φ ●

STEP 6

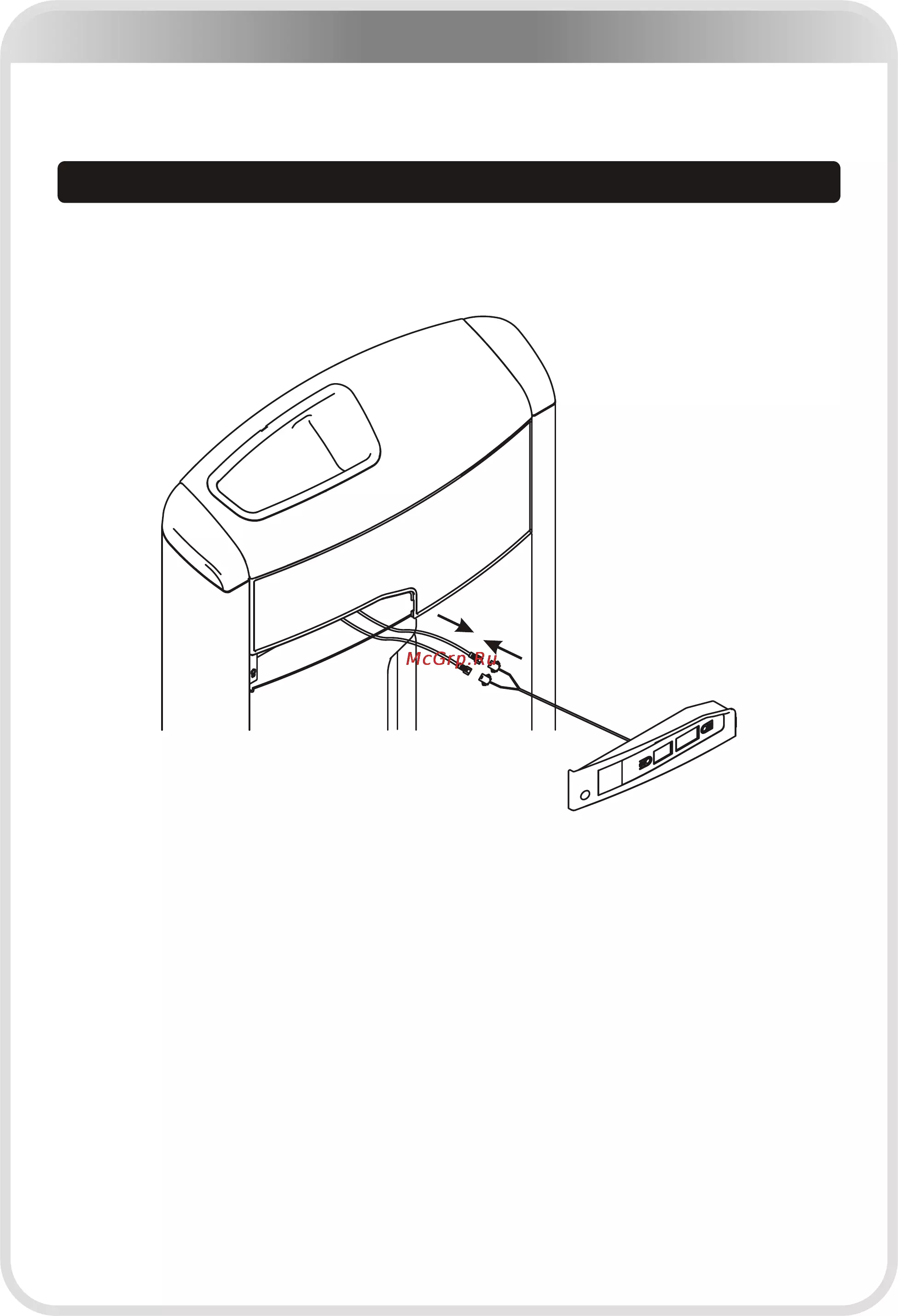

Here is the assembly instruction for Console PCB !
