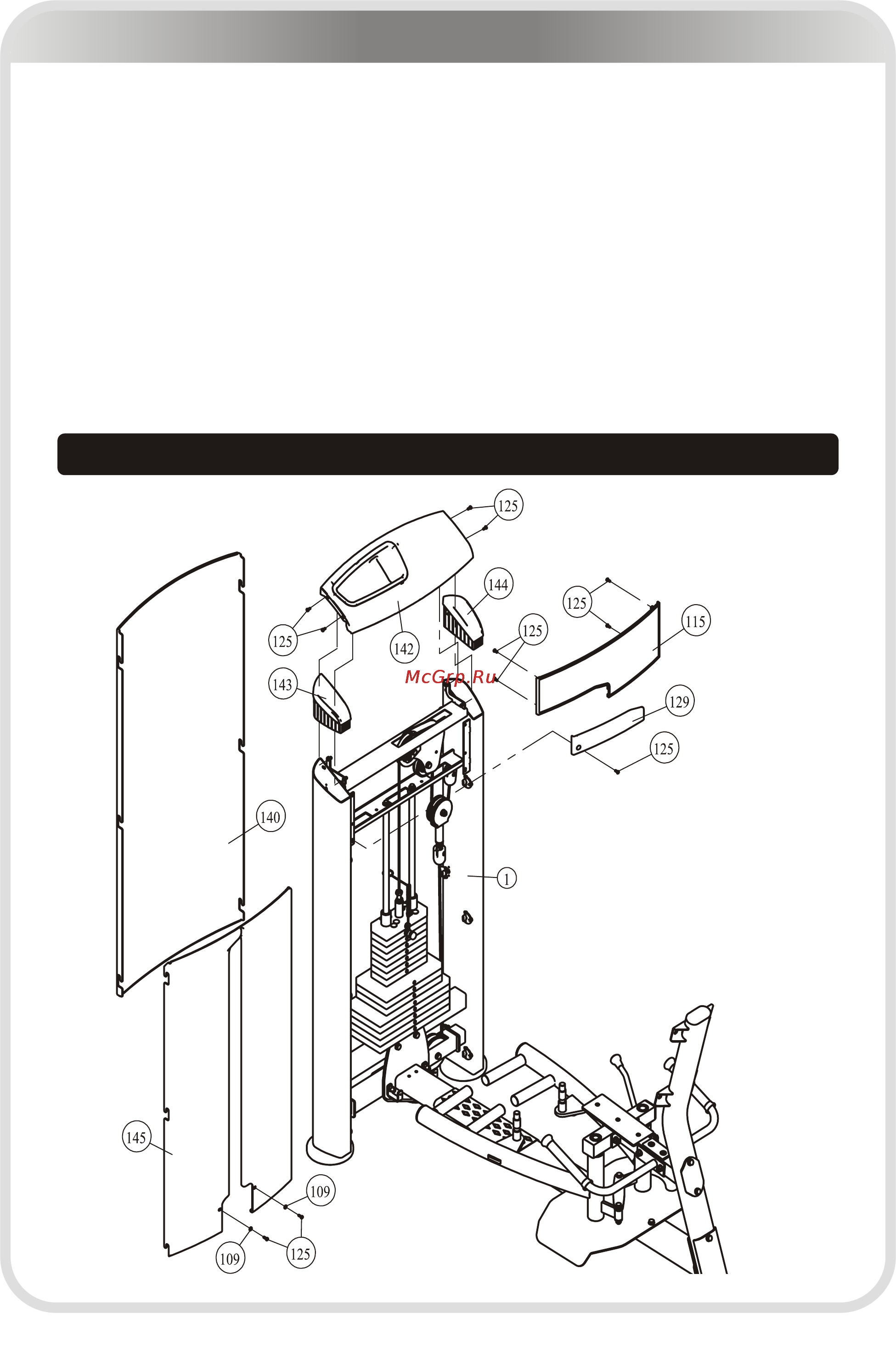

1. Attach one Rear Shroud (#140) to the Weight Stack Frame (#1).

2. Attach one Front Shroud (#145) to the Weight Stack Frame (#1) using:

● two Φ5.5*Φ12*1 Flat Washer (#109) ● two M5*12 Screw (#125)

3. Attach the Top Front Shroud (#115) and the Plastic Cover (#129) to the Weight

Stack Frame (#1) using:

● five M5*12 Screws (#125)

4. Attach the Top Cover (#142) to the Weight Stack Frame (#1) using:

● four M5*12 Screws (#125)

5. Attach the Left Plug (#143) and Right Plug (#144) to the Weight Stack Frame (#1).

Note: Wrench Tighten bolts and Nylon Lock nuts.

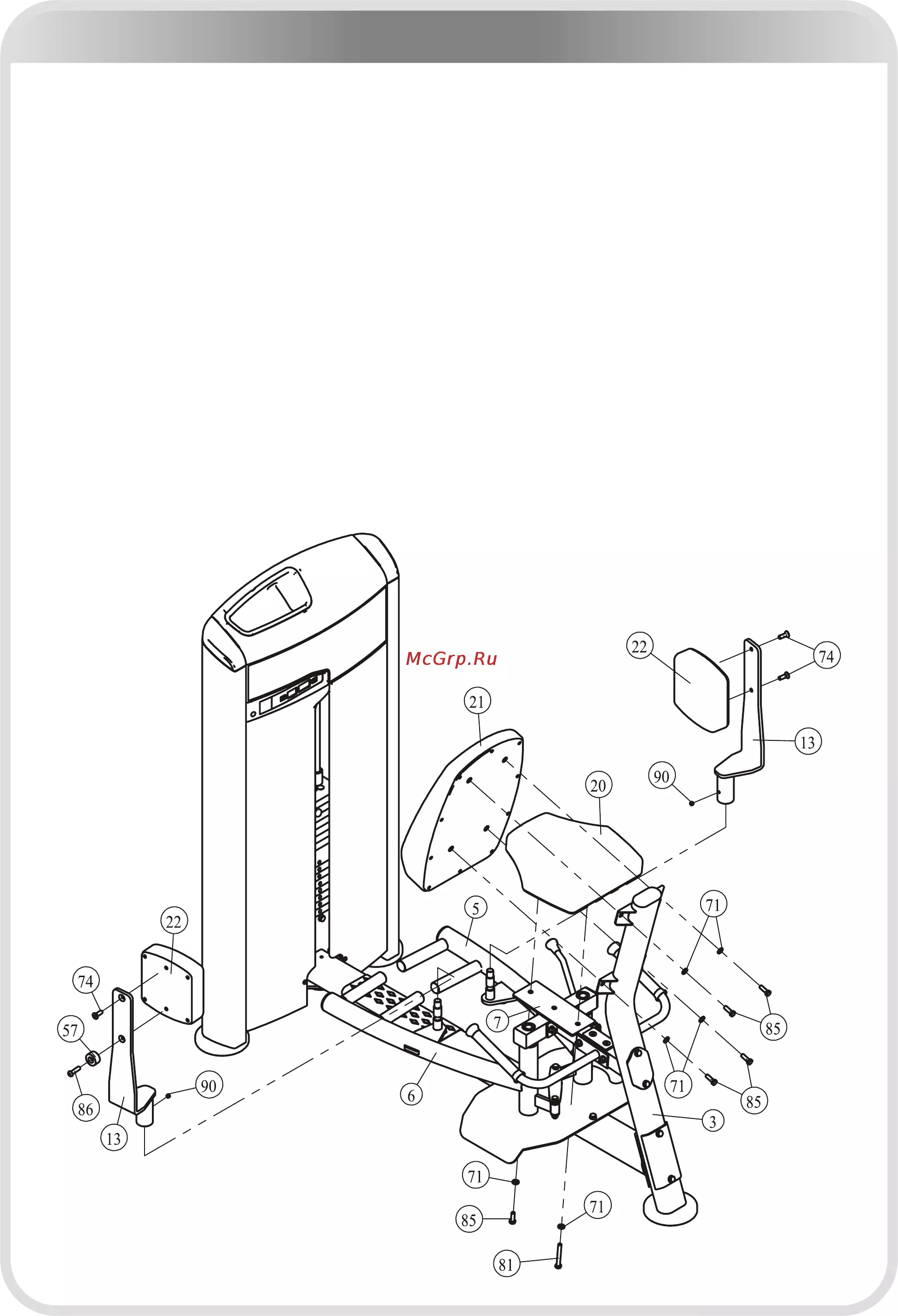

Assembly

STEP 6

Here is the assembly instruction for Plastic Cover !

─ 19 ─
