Assembly

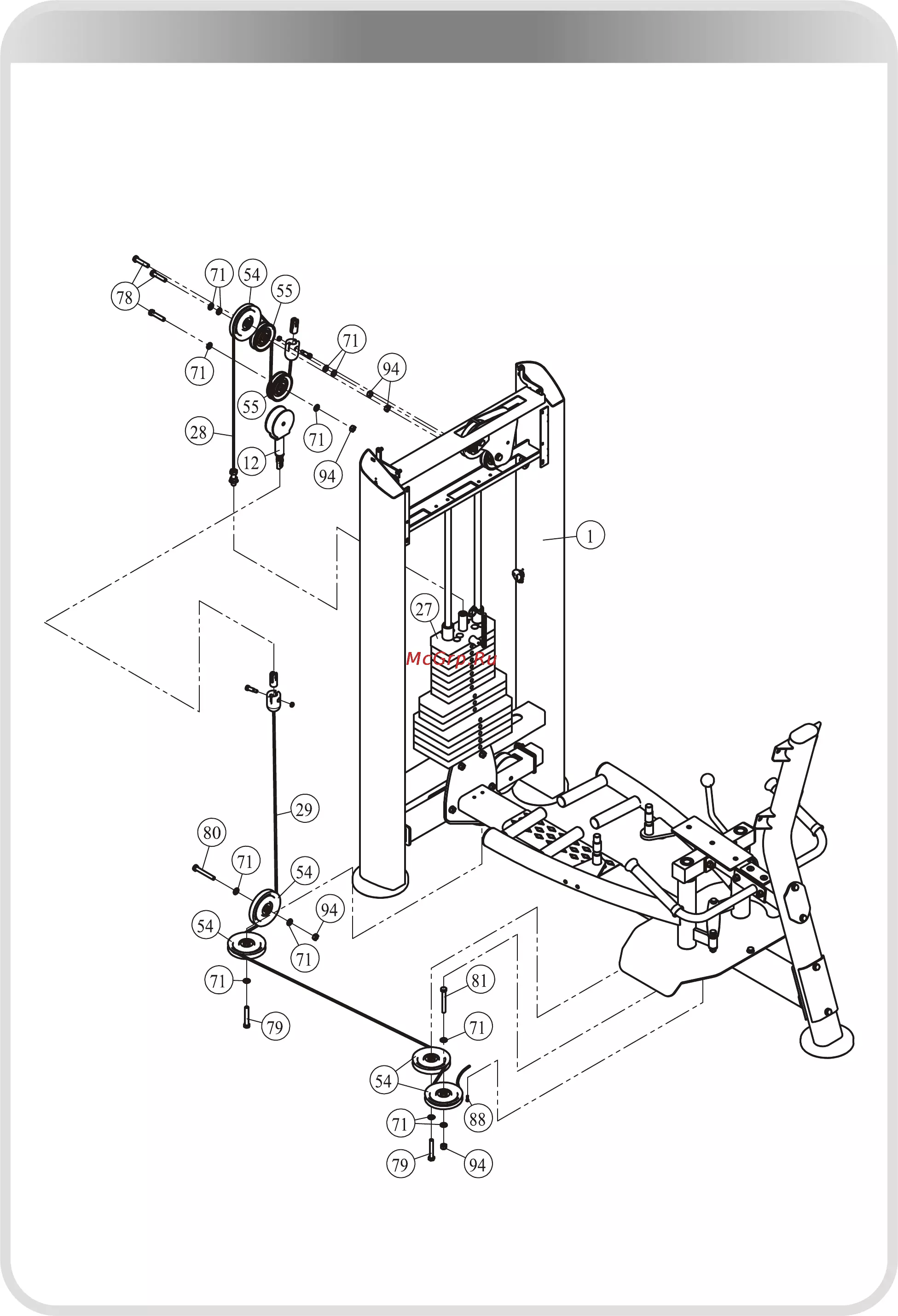

STEP 5

1. Attach one 4.5" Pulleys (#54) to the Weight Stack Frame (#1) using:

● one M10*75 HHB (#80)

● two Φ11*Φ20*2 Flat Washers (#71)

● one M10 Nylon Lock Nut (#94)

2. Attach two 4.5" Pulleys (#54) to the Botton Cross Brace (#2) using:

● two M10*65 HHB (#79)

● two Φ11*Φ20*2 Flat Washers (#71)

3. Attach one 4.5" Pulley (#54) to the Cam Support Tube (#10) using:

● one M10*80 HHB (#81)

● two Φ11*Φ20*2 Flat Washers (#71)

● one M10 Nylon Lock Nuts (#94)

4. Attach one 3.5" Pulley (#55) to the Adjustable Pulley Bracket (#12) using:

● one M10*50 HHB (#78)

● two Φ11*Φ20*2 Flat Washers (#71)

● one M10 Nylon Lock Nut (94)

5. Attach the Cable 1 (#28) to the Top Plate (#27), the Weight Stack Frame (#1) and

the Adjustable Pulley Bracket (#12).

6. Attach the Cable 2 (#29) to the Adjustable Pulley Bracket (#12), the Bottom Cross

Brace (#2), the Cam Support Tube (#10) and the Adjustable Cam (#9), then tighten

the M4*15 SHCS (#88).

─ 15 ─
